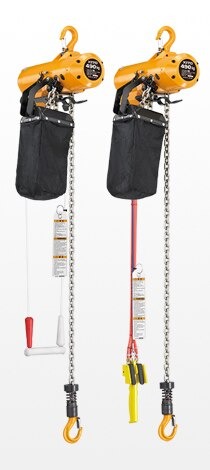

KITO TCS Series Air Hoist

KITO TCS Series Air Hoist – Ultra high speed operation, super-compact size, lightweight.

Achieves ultra high speed operation *1.
The speed can be adjusted according to how strongly the valves are pressed, allowing intuitive operation.
The range of the lifting and lowering speeds can be adjusted separately.
The compact size and light weight features make transportation and transfer easy.
Anti-overwinding device is incorporated as standard.
KITO's original ultra-high strength, rust-resistant nickel-plated chain is incorporated as standard.

*1 The lifting speed is 63 m /min in the Kito TCS series 250 kg when unloded.

Capacity	250 to 980 kg
Standard Lift	3m
Use	Lifting Up/Down

Capacity indicates maximum load (working load limit) which a hoist is designed to support in general service.

Standard Specification

Used Air Pressure	0.4 to 0.6MPa (Recommended Pressure: 0.6MPa)
Operation Method	Cord, Pendant, Hand Lever
Color	KITO Yellow (Equivalent to Munsell 7.2YR6.5/14.5)
Usage Emvironment	Indoors
Operating Temperature	-10 to 60℃
Operating Humidity	85%RH or Less

Ultra-strong Nickel-plated Load Chain

Uses KITO's original world-renowned chains!

Special alloy steel quenched chains offer high quality in all aspects of strength, durability, and precision.

Anti-overwinding Device

Protects the hoist main unit!

This protects the hoist main unit and the load chain from damage caused by overwinding.

Environment-friendly

Friendly to the environment and to people!

No usage of the 15 substances regulated by KITO as environmentally hazardous, including the 6 substances covered by the European Union RoHS Directive.

Specifications & Dimensions

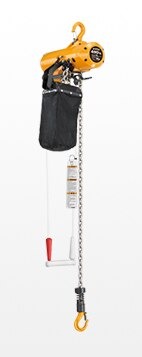

Cord Control with Hook Suspension

Unique operation type by using two cord.

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (kg)	Standard Lift (m)	Code: L1 (m)	During Rated Loading Speed (m/min)		Net Weight (kg)）
Code	Capacity (kg)	Standard Lift (m)	Code: L1 (m)	Lifting	Lowering	Net Weight (kg)）
TCSH03CS	250	3	1.7	34.0	63.0	20
TCSH04CS	490			17.0	34.0	20
TCSH09CD	980			8.5	17.0	26

Each performance value is the numerical value when the usage air pressure is 0.6MPa.
The net weight is the value for the standard lift.

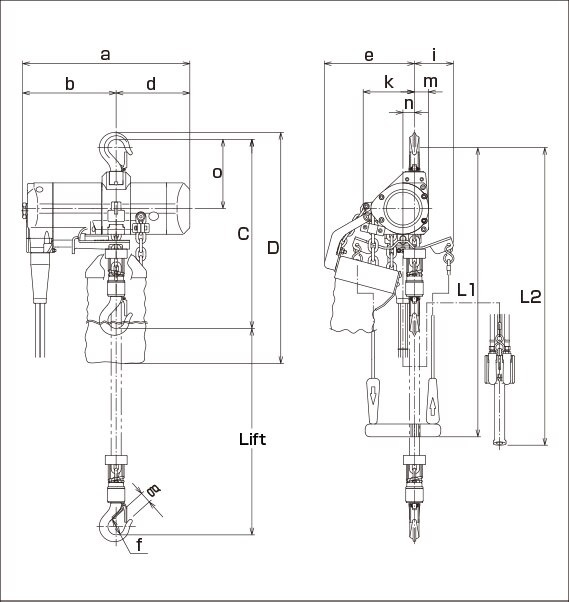

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

Code	Headroom: C	D	b	d	e
TCSH03CS	414	555	204	161	197
TCSH04CS	414	555			197
TCSH09CD	456	577			221

The D dimension is the value for the standard lift.
The values described above are the nominal dimensions.

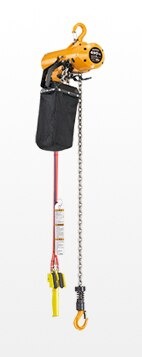

Pendant Control with Hook Suspension

Most common operation type by pendant switch.

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (kg)	Standard Lift (m)	Pendant Hose: L2 (m)	During Rated Loading Speed (m/min)		Net Weight (kg)
Code	Capacity (kg)	Standard Lift (m)	Pendant Hose: L2 (m)	Lifting	Lowering	Net Weight (kg)
TCSH03PS	250	3	2.5	34.0	63.0	21
TCSH04PS	490			17.0	34.0	21
TCSH09PD	980			17.0	17.0	27

Each performance value is the numerical value when the usage air pressure is 0.6MPa.
The net weight is the value for the standard lift.

Dimensions (mm)

Major capacities example. For more information, please refer to Product Catalog.

Code	Headroom: C	D	b	d	e
TCSH03PS	414	555	204	161	197
TCSH04PS	414	555			197
TCSH09PD	456	577			221

The D dimension is the value for the standard lift.
The values described above are the nominal dimensions.
