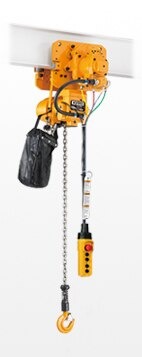

KITO TCRM Air Hoist with Air-motor Trolley

KITO TCRM Air Hoist with Air-motor Trolley – Low speed operation, super-compact size, lightweight.

Transporting of heavy loads is easy due to the air-motor trolley combination.
Lifting, lowering, and traversing can be operated at variable speeds using the 4-point type pendant.
Anti-overwinding device is incorporated as standard.
KITO's original ultra-high strength, rust-resistant nickel-plated chain is incorporated as standard.
An overloading limiter device is incorporated to automatically stop the lifting when overloading is detected.

Capacity	490kg
Standard Lift	3m
Use	Lifting Up/Down, Traversing Left/Right

Standard Specification

Used Air Pressure	0.4 to 0.6MPa (Recommended Pressure: 0.6MPa)
Operation Method	Cord, Pendant, Hand Lever
Color	KITO Yellow (Equivalent to Munsell 7.2YR6.5/14.5)
Usage Emvironment	Indoors
Operating Temperature	-10 to 60℃
Operating Humidity	85%RH or Less

Ultra-strong Nickel-plated Load Chain

Uses KITO's original world-renowned chains!

Special alloy steel quenched chains offer high quality in all aspects of strength, durability, and precision.

Anti-overwinding Device

Protects the hoist main unit!

This protects the hoist main unit and the load chain from damage caused by overwinding.

Overload Limiter

Prevents accidents when there is abnormal loading!

This prevents the hoist main unit and the load chain from damage due to abnormal loading, such as overloading and ground lifting. When shipped from the factory, the hoist is set to operate within 125% of the load capacity under the used air pressure of 0.6MPa.

Environment-friendly

Friendly to the environment and to people!

No usage of the 15 substances regulated by KITO as environmentally hazardous, including the 6 substances covered by the European Union RoHS Directive.

Specifications & Dimensions

Pendant Control with Air-motor Trolley

KITO TCRM Air Hoist with Air-motor Trolley

Most common operation type by pendant switch (Up/down/left/right).

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (kg)	Standard Lift (m)	Pendant Hose L2 (m)	During Rated Loading Speed (m/min)		Net Weight (kg)
Code	Capacity (kg)	Standard Lift (m)	Pendant Hose L2 (m)	Lifting	Lowering	Net Weight (kg)
TCRM04PS	490	3	2.2	10.0	16.0	82

Each performance value is the numerical value when the usage air pressure is 0.6MPa.
The net weight is the value for the standard lift.
When selecting the compressor, consider the total of the lifting air consumption and traversing air consumption amounts.
The minimum curve radius is common for all the applicable rail widths.

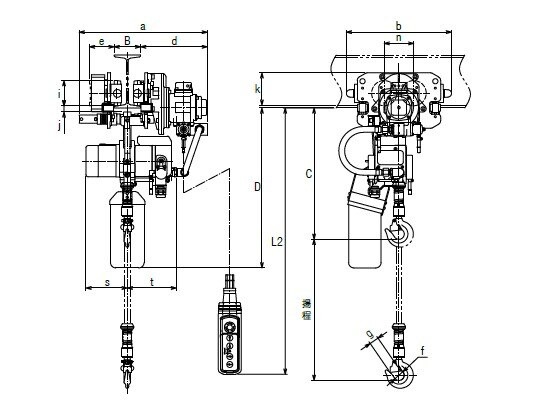

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

Code	Headroom: C	D	b	d	e
TCRM04PS	490	604	315	261	94

The D dimension is the value for the standard lift.
The values described above are the nominal dimensions.
