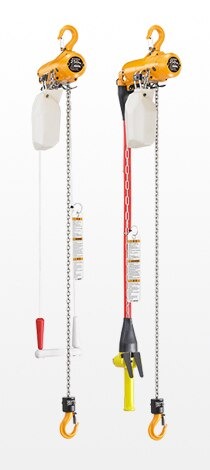

KITO TCR Series Air Hoist

KITO TCR Series Air Hoist – Ultra low, low & medium speed operation, super-compact size, lightweight.

  • The compact size and lightweight features make the hoist outstandingly portable.
  • The speed can be adjusted according to how strongly the valves are pressed, allowing intuitive operation.
  • Ultra low speed operation is possible, convenient for matching positions. (250 kg)
  • Anti-overwinding device is incorporated as standard.
  • KITO's original ultra-high strength, rust-resistant nickel-plated chain is incorporated as standard.
  • An overloading limiter device is incorporated to automatically stop the lifting when overloading is detected. (490 kg to 2 t)
Capacity250 kg to 2 t
Standard Lift3 m (Cord Control / Pendant Control),
2 m (Hand Lever Control)
UseLifting Up/Down

Standard Specification

Used Air Pressure0.4 to 0.6MPa (Recommended Pressure: 0.6MPa)
Operation MethodCord, Pendant, Hand Lever
ColorKITO Yellow (Equivalent to Munsell 7.2YR6.5/14.5)
Usage EmvironmentIndoors
Operating Temperature-10 to 60℃
Operating Humidity85%RH or Less

Ultra-strong Nickel-plated Load Chain

Uses KITO's original world-renowned chains!

Special alloy steel quenched chains offer high quality in all aspects of strength, durability, and precision.

Anti-overwinding Device

Protects the hoist main unit!

This protects the hoist main unit and the load chain from damage caused by overwinding.

Overload Limiter

Prevents accidents when there is abnormal loading!

This prevents the hoist main unit and the load chain from damage due to abnormal loading, such as overloading and ground lifting. When shipped from the factory, the hoist is set to operate within 125% of the load capacity under the used air pressure of 0.6MPa.

*Except for 250kg

Environment-friendly

Friendly to the environment and to people!

No usage of the 15 substances regulated by KITO as environmentally hazardous, including the 6 substances covered by the European Union RoHS Directive.

Specifications & Dimensions

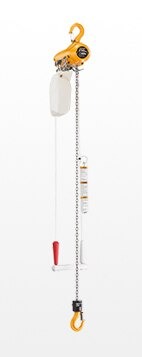

Cord Control with Hook Suspension

KITO TCR Series Air Hoist

Unique operation type by using two cord.

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

CodeCapacity (t)Standard Lift (m)Code: L1 (m)During Rated Loading Speed (m/min)Net Weight (kg)
LiftingLowering
TCRH03CS250 kg31.79.017.47
TCRH04CS490 kg1.910.016.030
TCRH09CD980 kg5.08.134.5
TCRH09CS5.89.333
TCRH20CD22.94.739
  • Each performance value is the numerical value when the usage air pressure is 0.6MPa.
  • The net weight is the value for the standard lift.
KITO TCR Series Air Hoist

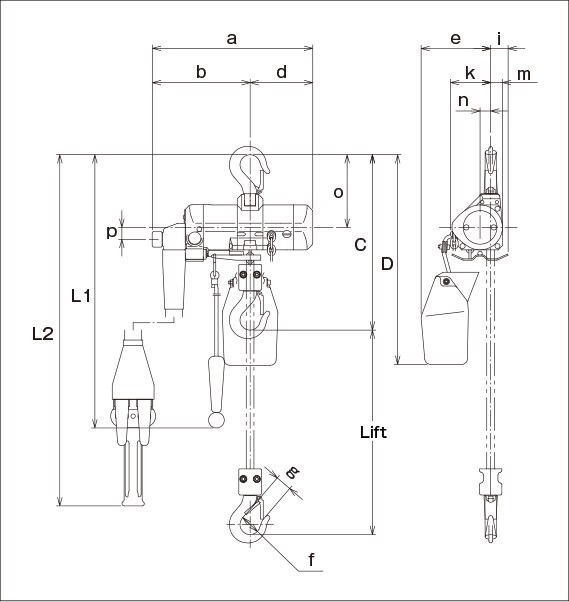

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

CodeHeadroom: CDbde
TCRH03CS305375174112124
TCRH04CS462582186156181
TCRH09CD519667205
TCRH09CS466582181
TCRH20CD597701208
  • The D dimension is the value for the standard lift.
  • The values described above are the nominal dimensions.

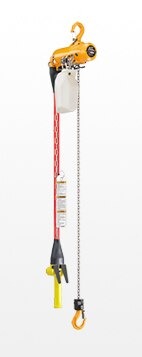

Pendant Control with Hook Suspension

KITO TCR Series Air Hoist

Most common operation type by pendant switch.

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

CodeCapacity (kg)Standard Lift (m)Pendant Hose: L2 (m)During Rated Loading Speed (m/min)Net Weight (kg)
LiftingLowering
TCRH03PS250 kg32.28.116.58.6
TCRH04PS490 kg2.410.016.031
TCRH09PD980 kg5.08.135.5
TCRH09PS5.89.334
TCRH20PD22.94.740
  • Each performance value is the numerical value when the usage air pressure is 0.6MPa.
  • The net weight is the value for the standard lift.
KITO TCR Series Air Hoist

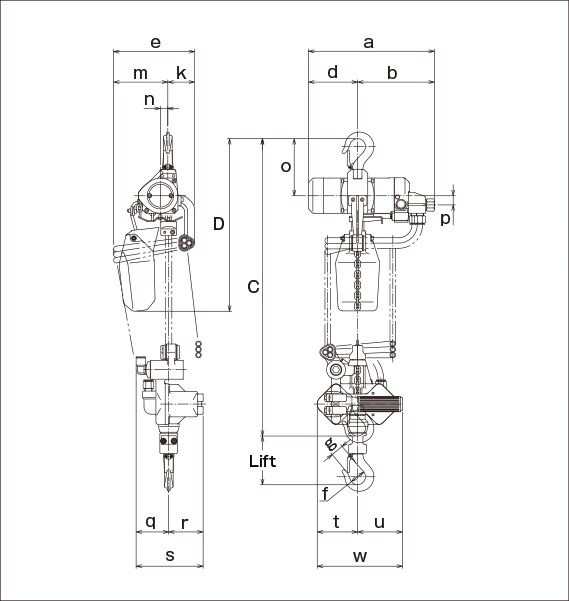

Dimensions (mm)

Major capacities example. For more information, please refer to Product Catalog.

CodeHeadroom: CDbde
TCRH03PS305375174112124
TCRH04PS462582186156181
TCRH09PD519667205
TCRH09PS466582181
TCRH20PD597701208
  • The D dimension is the value for the standard lift.
  • The values described above are the nominal dimensions.

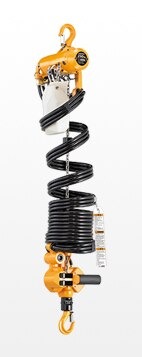

Hand Lever Control with Hook Suspension

KITO TCR Series Air Hoist

Easy and comfortable operation type by hand lever.

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

CodeCapacity (t)Standard Lift (m)During Rated Loading Speed (m/min)

Net Weight

(kg)

LiftingLowering
TCRH03MS250 kg28.016.511
  • Each performance value is the numerical value when the usage air pressure is 0.6MPa.
  • The net weight is the value for the standard lift.
KITO TCR Series Air Hoist

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

CodeHeadroom: CDbde
TCRH03MS837392174112184
  • The D dimension is the value for the standard lift.
  • The values described above are the nominal dimensions.
