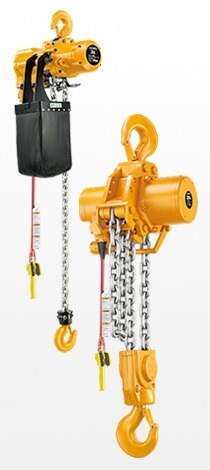

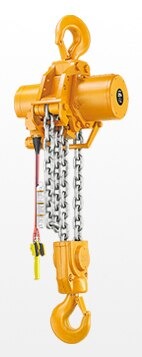

KITO TCH Series Air Hoist

KITO TCH Series Air Hoist – Intuitive operation is materialized by smooth speed adjustment.

This compact, large-capacity air hoist is ideal for use in sites with limited work space such as shipyards that do repairs.
Ideal for work in shipyard sites such as incoporating/disassembling of propellers and propeller shafts of large-sized vessels.
Anti-overwinding device is incorporated as standard.
An overloading limiter device is incorporated to automatically stop the lifting when overloading is detected.
The pendant type incorporates an emergency stop button as standard.

Capacity	3t, 6t, 10t, 25t
Standard Lift	3m
Use	Lifting Up/Down

Standard Specification

Used Air Pressure	0.4 to 0.6MPa (Recommended Pressure: 0.6MPa)
Operation Method	Cord, Pendant, Hand Lever
Color	KITO Yellow (Equivalent to Munsell 7.2YR6.5/14.5)
Usage Emvironment	Indoors
Operating Temperature	-10 to 60℃
Operating Humidity	85%RH or Less

Anti-overwinding Device

Protects the hoist main unit!

This protects the hoist main unit and the load chain from damage caused by overwinding.

Overload Limiter

Prevents accidents when there is abnormal loading!

This prevents the hoist main unit and the load chain from damage due to abnormal loading, such as overloading and ground lifting. When shipped from the factory, the hoist is set to operate within 125% of the load capacity under the used air pressure of 0.6MPa.

Pendant with Emergency Stop Button

Immediately stops the hoist in abnormal operation!

This protects operators as well as the hoist main unit.

Environment-friendly

Friendly to the environment and to people!

No usage of the 15 substances regulated by KITO as environmentally hazardous, including the 6 substances covered by the European Union RoHS Directive.

Specifications & Dimensions

Cord Control with Hook Suspension

Unique operation type by using two cord.

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (t)	Standard Lift (m)	Code: L1 (m)	During Rated Loading Speed (m/min)		Net Weight (kg)
Code	Capacity (t)	Standard Lift (m)	Code: L1 (m)	Lifting	Lowering	Net Weight (kg)
TCHH30CS	3	3	1.8	5.4	11.6	101
TCHH60CD	6		1.9	2.7	5.2	133
TCHH1QCD	10		1.9	1.6	3.2	205
TCHH2PCD	25		2.0	1.4	3.0	579

Each performance value is the numerical value when the usage air pressure is 0.6MPa.
The net weight is the value for the standard lift.

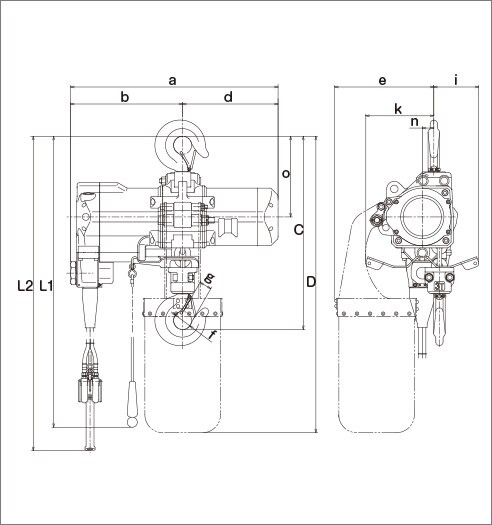

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

Code	Headroom: C	a	b	d	e
TCHH30CS	537	576	311	265	275
TCHH60CD	770	576	311	265	331
TCHH1QCD	850	582	315	267	-
TCHH2PCD	1290	708	352	356	-

The values described above are the nominal dimensions.

Pendant Control with Hook Suspension

Most common operation type by pendant switch.

Specifications

Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (kg)	Standard Lift (m)	Pendant Hose: L2 (m)	During Rated Loading Speed (m/min)		Net Weight (kg)
Code	Capacity (kg)	Standard Lift (m)	Pendant Hose: L2 (m)	Lifting	Lowering	Net Weight (kg)
TCHH30PS	3	3	2.6	5.4	11.6	102
TCHH60PD	6		2.7	2.7	5.2	134
TCHH1QPD	10		2.7	1.6	3.2	206
TCHH2PPD	25		2.9	1.4	3.0	581

Each performance value is the numerical value when the usage air pressure is 0.6MPa.
The net weight is the value for the standard lift.

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

Code	Headroom: C	a	b	d	e
TCHH30PS	537	576	311	265	275
TCHH60PD	770	576	311	265	331
TCHH1QPD	850	582	315	267	-
TCHH2PPD	1290	708	352	356	-

The values described above are the nominal dimensions.
