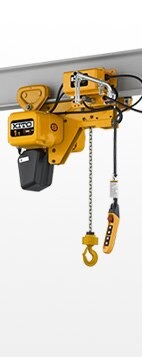

KITO SHER2M Ultra Low Headroom Electric Chain Hoist

KITO SHER2M Ultra Low Headroom Electric Chain Hoist – Optimal for installations in buildings with low ceilings or to maximize effective lift.

標準仕様よりさらにデッドスペースを小さくした構造。
既設建屋の高さが低い場合や構造上できる限り有効揚程を広げたい現場で活躍。
The KITO ultra-low headroom electric chain hoist is uniquely designed to have a shorter headroom than standard ER2 configurations, with trolleys also optionally available. For special requirements such as rated capacities exceeding 10 ton, dual-speed or curve beams, please consult with KITO and KITO's global partners.

Specifications & Dimensions

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Cap. (t)	Std. Lift (m)	Lifting Motor	Lifting Speed (m/min)		Trav. Motor	Traversing Speed (m/min)		Flange Width: B (mm)
Code	Cap. (t)	Std. Lift (m)	Output (kW)	50 Hz	60 Hz	Output (kW)	50 Hz	60 Hz	Flange Width: B (mm)
SHER2M003S	250kg	3	0.56	9.1	11.0	0.4	20 (10)	24 (12)	75-125
SHER2M005S	500kg		0.9	7.3	8.8				75-125
SHER2M010S	1		1.8	7.1	8.5				100-125
SHER2M020S	2		3.5	5.7	6.8				125-150
SHER2M030S	3		3.5	3.5	4.2				125-150

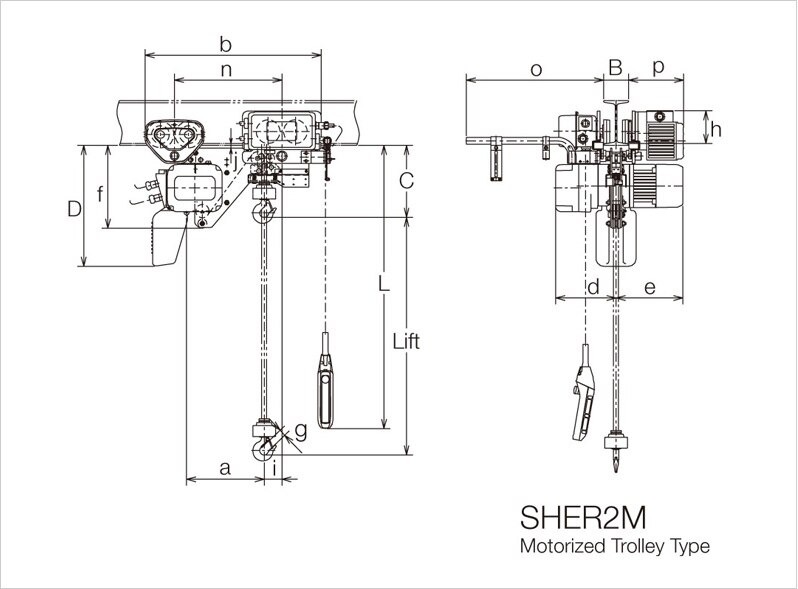

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

The brackted in Size "b" are for geared or plain trolley.
Size "D" is for a lift of 4 m.
This information which varies depending on the lift is provided upon your request.
