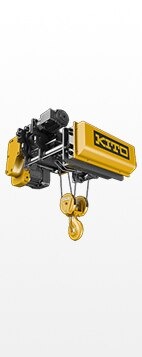

KITO RY Series Wire Rope Hoist – Low Headroom Model (RYL)

KITO RY Series Wire Rope Hoist – Low Headroom Model (RYL) – New challenges for new values.

  • Minimizes the swing of a load with KITO's "original inverter control"
  • Equipped with a proven pull rotor type motor brake to ensure a high level of safety for 3t/5t
  • A high-performance magnetic disc brake for 10t
  • Adopts aluminum casing to reduce weight
Capacity3 to 10 t
UseLifting/Lowering, Traversing
Voltage200-230V (50/60Hz),
380-440V (50/60Hz)

Standard Specification

Voltage200-230V (50/60Hz), 380-440V (50/60Hz)
Intermittent ratingsLifting: 60%ED (High speed: 40%, Low speed: 20%)
360 Starts/hr
Control voltage3t/5t: DC 24V
10t: AC24V
Power supply methodPower supply through round cable
Operation methodPendant control
EnclosureHoist: IP44,

Pendant control: IP65

Operating temperature-20～+40℃
Operating humidity90%RH or Less

Equipped with technologies and know-how accumulated through Kito’s experience with electric chain hoists.

KITO RY Series Wire Rope Hoist – Low Headroom Model (RYL)

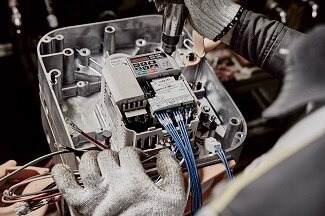

Minimizes the swing of a load with Kito's "Original inverter control"

KITO RY Series Wire Rope Hoist – Low Headroom Model (RYL)

Kito's original inverter control makes a high level of safety and workability possible at the same time.
Kito's original technology minimizes the drift in the load movement typical for an inverter control and stops the load at a minimum distance.
Furthermore, the soft start/stop function (*) minimizes the swing of a load, contributing to work efficiency.

(*) Applies to lifting/lowering and traversing operations.

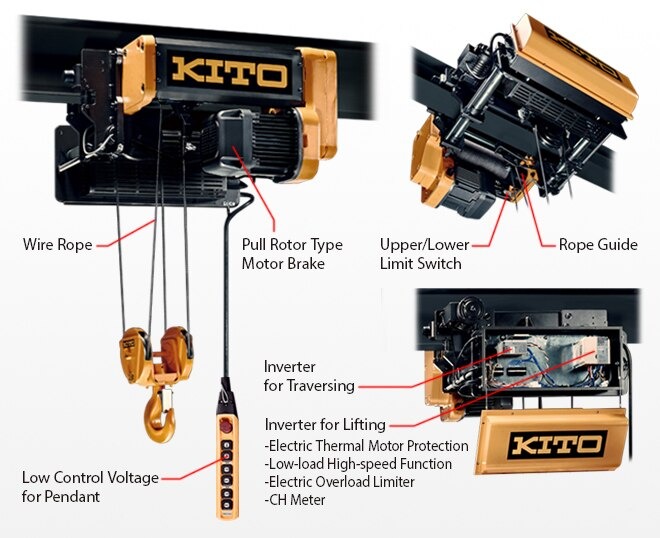

Equipped with a proven pull roter type motor brake to ensure a high level of safety

KITO RY Series Wire Rope Hoist – Low Headroom Model (RYL)

The high-performance brake securely holds a load; service life is optimized with the inverter operation.
The simple structure with minimal electric components offers stable operation that is essential for productivity.

Adopts aluminum casing to reduce weight

KITO RY Series Wire Rope Hoist – Low Headroom Model (RYL)

Low-pressure casting method is used to make a light-weight aluminum casing with excellent serviceability.

Specifications & Dimensions

Low headroom model (RYL)

KITO RY Series Wire Rope Hoist – Low Headroom Model (RYL)

Lifting up/down and Traversing are equipped inverter as standard.

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

CodeCapacity (t)Std. Lift (m)Lifting: Inverter OperationTraversing: Inverter Operation
Output (kW)High and Low Speed with a Rated Load m/s (m/min)Output (kW)High and Low Speed m/s (m/min)
RYLA030ISIS063.063.50.083 to 0.014
(5.0 to 0.833)		0.250.333 to 0.056
(20 to 3.333)
RYLA030IHIS065.00.133 to 0.022
(8.0 to 1.333)
RYLA030ISIS0993.50.083 to 0.014
(5.0 to 0.833)
RYLA030IHIS095.00.133 to 0.022
(8.0 to 1.333)
RYLA030ISIS12123.50.083 to 0.014
(5.0 to 0.833)
RYLA030IHIS125.00.133 to 0.022
(8.0 to 1.333)
RYLB050ISIS095.095.00.083 to 0.014
(5.0 to 0.833)		0.4
RYLB050IHIS098.00.133 to 0.022
(8.0 to 1.333)
RYLB050ISIS12125.00.083 to 0.014
(5.0 to 0.833)
RYLB050IHIS128.00.133 to 0.022
(8.0 to 1.333)
RYLC100ISIS0910.0913.20.100 to 0.017
(6.0 to 1.0)		0.75
RYLC100ISIS1212

*We are scheduling to release over 10 t. Please consult with KITO and KITO's global partners.

KITO RY Series Wire Rope Hoist – Low Headroom Model (RYL)

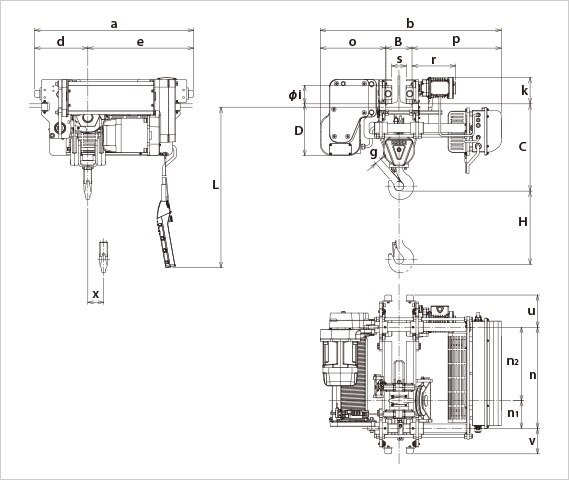

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

CodeCapacity (t)Std. Lift (m)Flange Width B (mm)Cdeop
RYLA030ISIS06 RYLA030IHIS063.06125～175635357710441649～599
176～350773～599
351～500748～599
RYLA030ISIS09 RYLA030IHIS099125～175922649～599
176～350773～599
351～500748～599
RYLA030ISIS12 RYLA030IHIS1212125～1751134649～599
176～350773～599
351～500748～599
RYLB050ISIS09 RYLB050IHIS095.09125～175650922649～599
176～350773～599
351～500748～599
RYLB050ISIS12 RYLB050IHIS1212125～1751134649～599
176～350773～599
351～500748～599
RYLC100ISIS09 RYLC100ISIS1210.09150 to 350820528820628855 to 655
351 to 500804 to 655
12150 to 3501035855 to 655
351 to 500804 to 655
