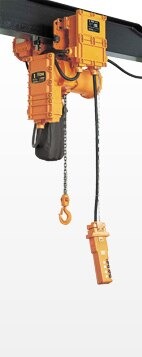

KITO RES/RESM Explosion-proof Electric Chain Hoist

KITO RES/RESM Explosion-proof Electric Chain Hoist – The RES series is recommended for use in explosive atmospheres featuring various ignitable gases and vapors, where special attention is required.

The hoists have been authorized with type approval by the Ministry of Health, Labor and Welfare in Japan.
Explosion class and ignition temperature category for ambient gas or steam: ‘d2 G4’

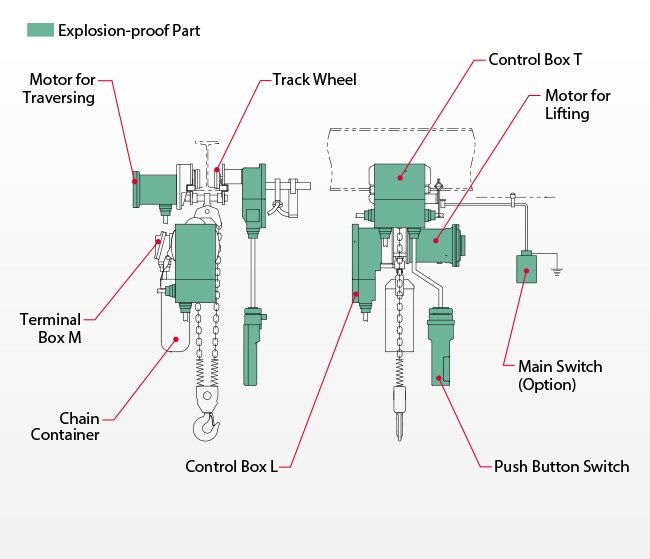

Explosion- Protected Construction	Motor (for Lifting & Traversing), Control Box, Push Button Switch, Motor (for Traversing), Terminal Box
Cable Entry	Pressure-Proof Packing Construction, Rubber Insulated Flexible Cable (3RNCT)
Useful Place	Factory, Business Facility (Not Use at Mining)

Standard Specification

Voltage	220V (50/60Hz), 220V (60Hz), 380V (50Hz), 400V (50Hz), 440V (50Hz), 415V (50Hz), 440V (60Hz), 3 Phase *Other voltages are available upon your request.
Control Voltage	48V
Motor Insulation	Class E
Operation Method	Push Button Control (Floor Operation)
Power Supply Method	Cable Power Supply System
Operating Temperature	-20 to 40℃ (-4 to 104℉)
Operating Humidity	85%RH or Less

Meet the JIS C0903 & JIS C 0905

KITO RES/RESM Explosion-proof Electric Chain Hoist

Specifications & Dimensions

With Hook Suspension

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (t)	Standard Lift (m)	Lifting Motor	Lifting Speed (m/min)		Net Weight (kg)
Code	Capacity (t)	Standard Lift (m)	Output (kW)	50Hz	60Hz	Net Weight (kg)
RES005S	1/2	3	1.5	8.0	10.0	100
RES010S	1		1.5	6.9	8.3	100
RES020S	2		3.0	6.6	7.9	147
RES030S	3			4.3	5.2	165
RES050S	5			2.6	3.2	175

Capacity indicates maximum load (working load limit) which a hoist is designed to support in general service.

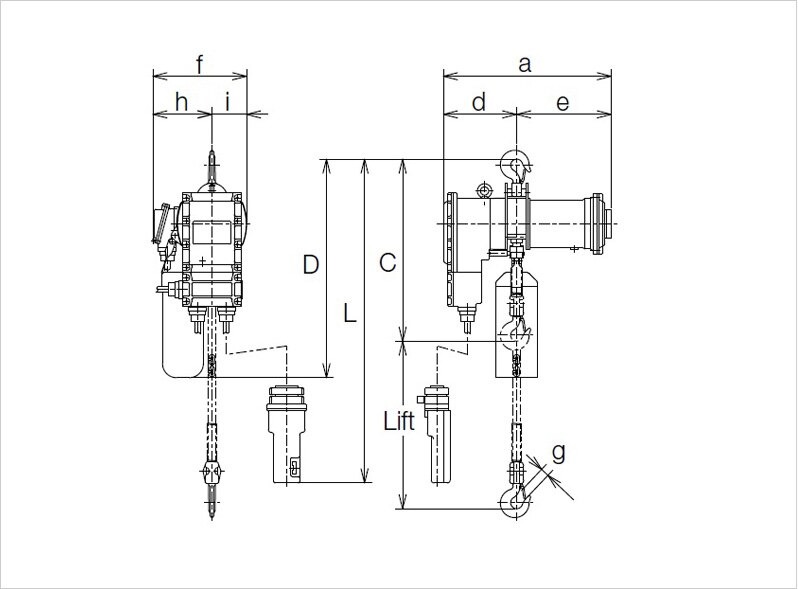

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

Code	Minimum Distance between Top and Bottom Hooks: C	D	b	e	f
RES005S	650	770	265	340	358
RES010S	590	770	265	340	358
RES020S	735	870	265	375	470
RES030S	895	935			470
RES050S	930	1040			482

In case of 7.5 ton and over capacities, trolley combined types are standard.
Dimensions of D show the data for the hoist with standard length of lift.
In case of 10 ton and over capacities, 2-hoist body construction is standard.

With Motorized Trolly

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (t)	Standard Lift (m)	Trav. Motor	Lifting Speed (m/min)		Net Weight (kg)
Code	Capacity (t)	Standard Lift (m)	Output (kW)	50Hz	60Hz	Net Weight (kg)
RESM005S-S	1/2	3	0.4	10 or 20	12 or 24	58-125
RESM010S-S	1					58-125
RESM020S-S	2					100-150
RESM030S-S	3		0.75			100-150
RESM050S-S	5		0.75			125-175

Capacity indicates maximum load (working load limit) which a hoist is designed to support in general service.
Data for lifting motor , lifting speed, load chain and test for RESM are the same data for RES.

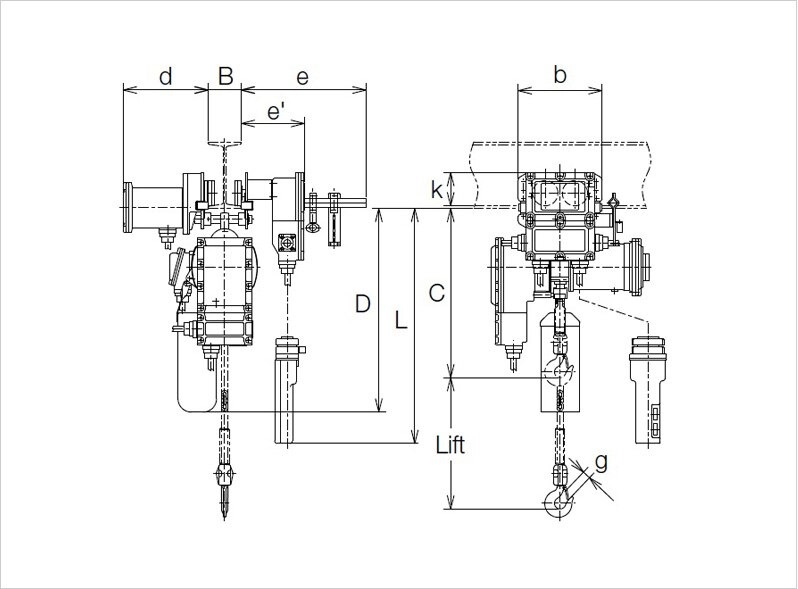

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

Code	Minimum Distance between Top and Bottom Hooks: C	D	b	d	e
RESM005S-S	640	760	315	320	515
RESM010S-S	580	760	315	320
RESM020S-S	705	840	325	324
RESM030S-S	870	910	340	326	520
RESM050S-S	925	935	400	333	525

Dimensions of D show the data for the hoist with standard lift.
