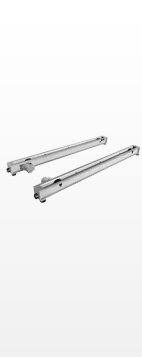

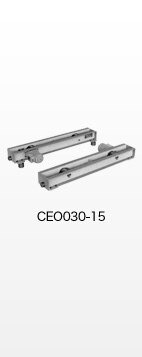

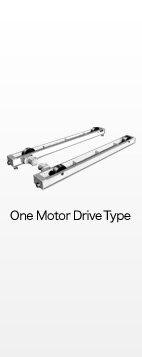

KITO Overhead End Carriage

KITO Overhead End Carriage – Ultimate Light-weight & Compact Size, Meticulous Dedicated Design.

To meet customer needs, we have enhanced performance while offering more standardized models.
The track wheel is now made of carbon steel, making it sturdier and longer-lasting.
Products are primer-coated, which allows customers to choose the desired top coat color.
Punch-mark on end carriages for easy centering and drilling for girders.

Capacity	1t to 20 t
Max. Span	3 to 27m
Traveling Motor Output (kW × 2)	0.21/0.25 to 1.25/1.5 x 2 m/min (50/60 Hz)

Specifications & Dimensions

Motorized Overhead End Carriage

Track wheel maintenance is easy because of the open frame construction. Travel is smooth because of a guide mechanism with side rollers.

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (t)	Max. Span (m)	Traveling Motor Output (kW x 2) 50/60 Hz (m/min)				Applicable Square Rail (mm)	Max. Wheel Pressure (kN)
			L	S	H	SD
			10/12	20/24	30/36	20:5/ 24:6

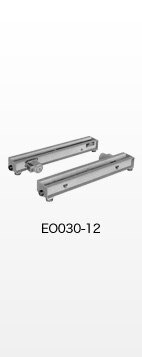

EO010-12*	1	12	0.21/ 0.25	0.21/ 0.25	0.21/ 0.25	0.21:0.053/ 0.25:0.063	□32・□40 □38・□45	9.31
EO020-12*	2				0.21/ 0.25		□32・□40 □38・□45	17.6
EO030-12*	3				0.34/ 0.4		□45・□50	20.6
EO050-9*	5	9			0.34/ 0.4		□50	31.4
EO075-12*	7.5	12	0.63/ 0.75	0.63/ 0.75	1.25/ 1.5	0.63:0.16/ 0.75:0.19	□55・□60	73.5
EO100-12*	10	12	0.63/ 0.75	0.63/ 0.75	1.25/ 1.5	0.63:0.16/ 0.75:0.19	□55・□60	73.5

Capacity: Working Load Limit (t)

*Geared motors installed in diagonal positions as shown in the above photo.

When planning a girder or cart, contact FullSharp.

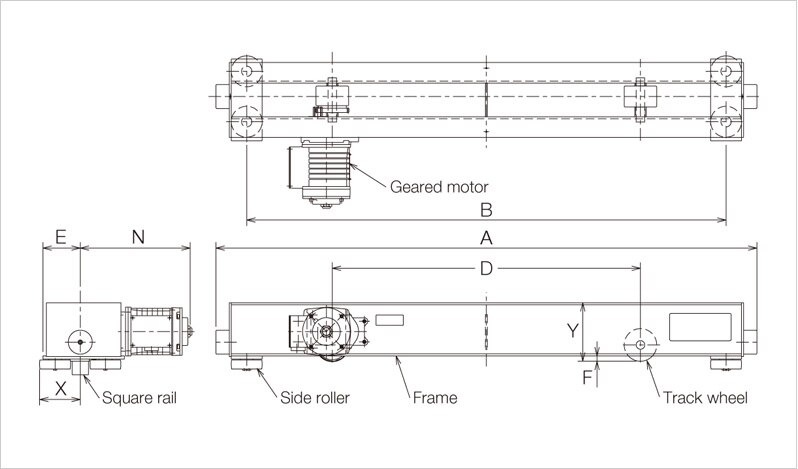

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

Code	A	B	D	F	Y
EO010-12*	1580	1400	900	15.5	171
EO020-12*				20.5	176
EO030-12*				20.5	176
EO050-9*	1490	1300	800	23.5	224
EO075-12*	1645	1405	900
EO100-12*	1645	1405	900

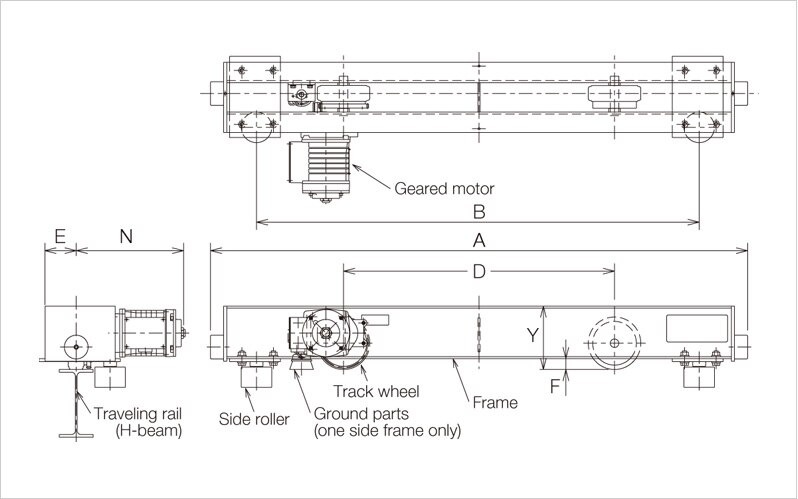

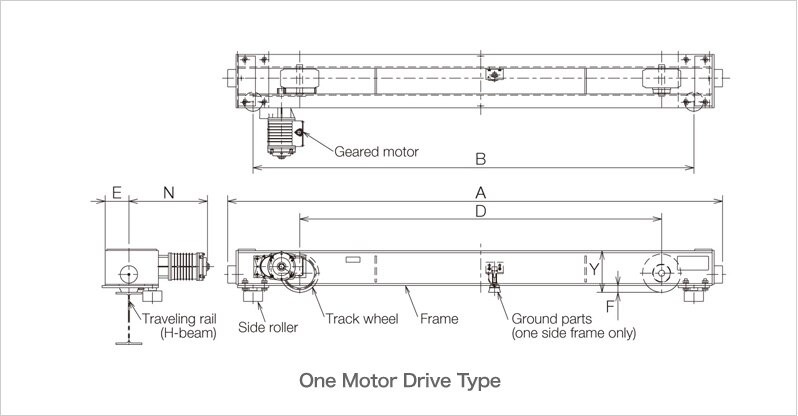

Urethane Wheel Motorized Overhead End Carriage

Durability has been improved with our own developed urethane wheels. The urethane wheels run directly over the top flange of the H-beam, thus reducing noise and vibration in travel. It is not necessary to install a light rail thus reducing installation costs and time. Travel is smooth because of a guide mechanism with side rollers.

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (t)	Max. Span (m)	Traveling Motor Output (kW x 2) 50/60 Hz (m/min)				Applicable Traveling Rail*1 (mm)	Max. Wheel Pressure*2 (kN)
			L	S	H	SD
			10/12	20/24	30/36	20:5/ 24:6
CEO010-9*3	1	9	0.21/ 0.25	0.21/ 0.25	0.21/ 0.25	0.21:0.053/ 0.25:0.063	100・125・150	7.8
CEO010-12*3	1	12	0.34/ 0.4	0.34/ 0.4	0.34/ 0.4	0.34:0.084/ 0.4:0.1	150・175・200	14.7
CEO020-12*3	2	12	0.34/ 0.4	0.34/ 0.4	0.34/ 0.4	0.34:0.084/ 0.4:0.1		14.7
CEO020-15	2	15	0.63/ 0.75	0.63/ 0.75	0.63/ 0.75			33.3
CEO030-15	3	15			0.63/ 0.75
CEO050-12*3	5	12			1.25/ 1.5
CEO075-12*3	7.5	12	1.25/ 1.5	1.25/ 1.5		-		61.7
CEO100-12*3	10	12	1.25/ 1.5	1.25/ 1.5		-		61.7

Capacity: Working Load Limit (t)
*1 contact FullSharp for sizes other than listed above.
*2 Wheel pressure under the capacity beneath the end carriage with standard girder and maximum span to verify endurance of the structure.

*3 Geared motors installed in diagonal positions as shown in the above photo.

When planning a girder or cart, contact FullSharp.

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

Code	A	B	D	F	Y
CEO010-9*3	1586	1307	800	32	188
CEO010-12*3	1696	1445	900
CEO020-12*3	1696	1445	900
CEO020-15	2082	1761	1000	39	239
CEO030-15	2082	1761	1000
CEO050-12*3	1852	1531	900
CEO075-12*3	2081	1766
CEO100-12*3	2081	1766

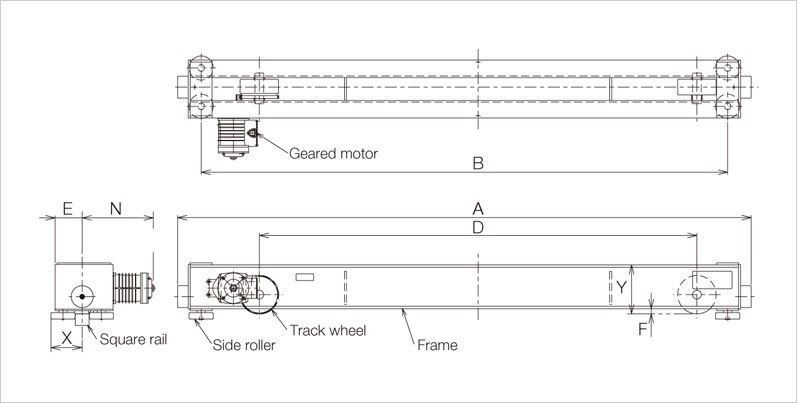

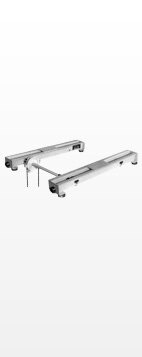

Motorized Overhead Double Girder End Carriage

Track wheel maintenance is easy because of the open frame construction. Travel is smooth because of a guide mechanism with side rollers.

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (t)	Max. Span (m)	Traveling Motor Output (kW x 2) 50/60 Hz (m/min)				Applicable Square Rail (mm)	Max. Wheel Pressure (kN)
			L	S	H	SD
			10/12	20/24	30/36	20:5/ 24:6
WEO030-21	3	21	0.34/ 0.4	0.34/ 0.4	0.63/ 0.75	0.34:0.084/ 0.4:0.1	□50	44.1
WEO050-15	5	15	0.34/ 0.4	0.34/ 0.4	0.63/ 0.75	0.34:0.084/ 0.4:0.1	□50	44.1
WEO050-21	5	21	0.63/ 0.75	0.63/ 0.75	1.25/ 1.5	0.63:0.16/ 0.75:0.19	□55・□60	73.5
WEO075-21	7.5	21			1.25/ 1.5
WEO100-15	10	15			1.25/ 1.5 x 2
WEO100-21	10	21			1.25/ 1.5 x 2			82.3

Capacity: Working Load Limit (t)

When planning a girder or cart, contact FullSharp.

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

Code	A	B	D	F	Y
WEO030-21	2845	2630	2195	23.5	224
WEO050-15	2845	2630	2195
WEO050-21	3095	2855	2390
WEO075-21	3098	2855	2395		274
WEO100-15	3098	2855	2395		274
WEO100-21	3288	3045	2540		324

Urethane Wheel Motorized Overhead Double Girder End Carriage

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (t)	Max. Span (m)	Traveling Motor Output (kW x 2) 50/60 Hz (m/min)				Applicable Square Rail*1 (mm)	Max. Wheel Pressure*2 (kN)
			L	S	H	SD
			10/12	20/24	30/36	20:5/ 24:6
CWEO030-21	3	21	1.25/ 1.5	1.25/ 1.5	1.25/ 1.5	-	150・175・200	41.2
CWEO050-15	5	15	1.25/ 1.5	1.25/ 1.5	1.25/ 1.5		150・175・200
CWEO050-27	5	27	1.25/ 1.5 × 2	1.25/ 1.5 × 2	1.25/ 1.5 × 2		175・200
CWEO075-21	7.5	21
CWEO100-15	10	15
CWEO100-27	7.5	27					200・250	61.7
CWEO150-21	15	21					200・250	61.7

Capacity: Working Load Limit (t)

*1 contact FullSharp for sizes other than listed above.
*2 Wheel pressure under the capacity beneath the end carriage with standard girder and maximum span to verify endurance of the structure.

When planning a girder or cart, contact FullSharp.

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

Code	A	B	D	F	Y
CWEO030-21	3111	2796	2295	39	239
CWEO050-15	3111	2796	2295		239
CWEO050-27	3771	3456	2700		289
CWEO075-21
CWEO100-15
CWEO100-27	4412	4063	3220		426
CWEO150-21	4412	4063	3220	46	426

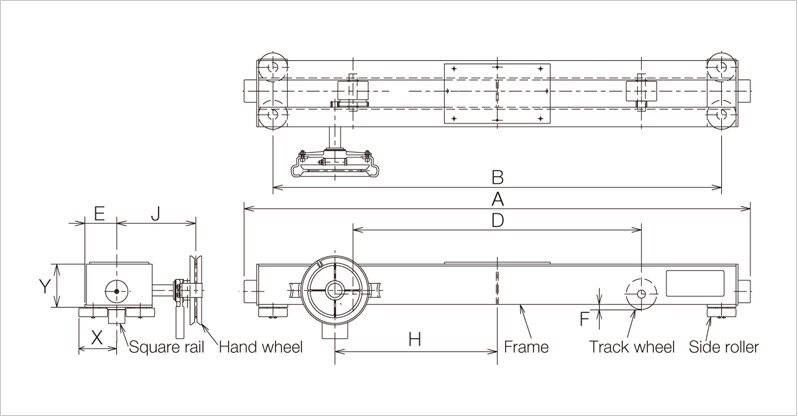

Geared Type Manual Overhead End Carriage

Pulling the hand chain makes both wheels move at the same time for balanced smooth traveling.

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (t)	Max. Span (m)	Applicable Square Rail (mm)	Max. Wheel Pressure (kN	Wheel Diameter (mm)


GO010-12	1	12	□32・□38 □40・□45	9.31	95
GO020-12	2		□32・□38 □40・□45	17.6	125
GO030-12	3		□40・□50	20.6	140
GO050-12	5		□50	44.1	210

Capacity: Working Load Limit (t)
When planning a girder or cart, contact FullSharp.

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

Code	A	B	D	F	Y*
GO010-12	1580	1400	900	15.5	147
GO020-12					172
GO030-12					202
GO050-12	1590			18.5	205

* The height from the track surface of the traveling rail to the top of the end carriage.
