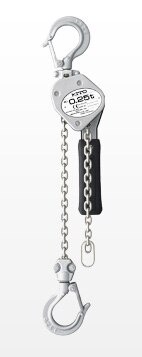

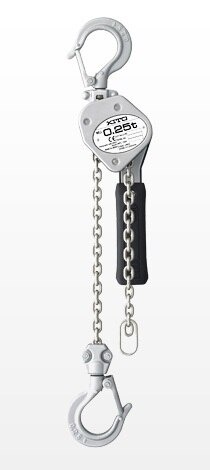

KITO LX Series Lever Hoist

KITO LX Series Lever Hoist – Ultra-compact, lightweight, portable design for ease of use in elevated work positions.

The durable die-cast aluminum body and steel frame is compact and lightweight.
Available in two capacities (250 and 500 kg) for all applications.
Minimal hand-pull force required for highly reliable pulling and lifting to the final click.
Ultra-low headroom design for use in confined spaces.
Free-chain adjusting mechanism for swift adjustments

Capacity	0.25t、0.5t（250kg､500kg）
Standard Lift	1.0m（0.25t）、1.2m（0.5t）
Operating Temperature	-40℃～+60℃

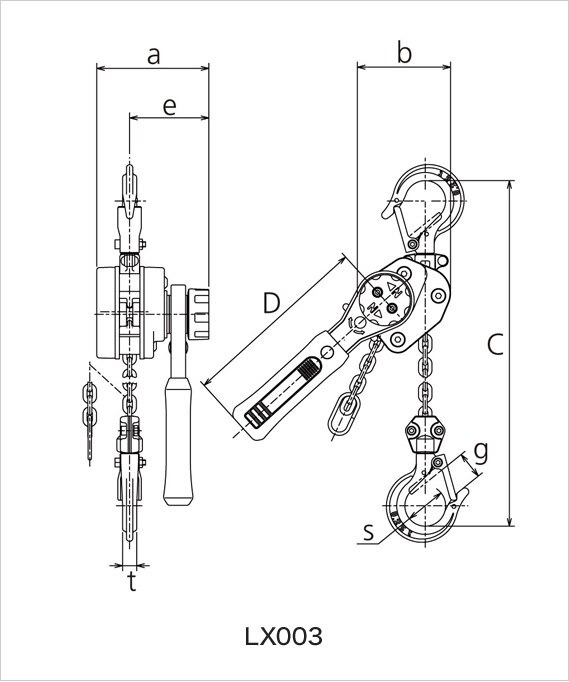

Product Specification

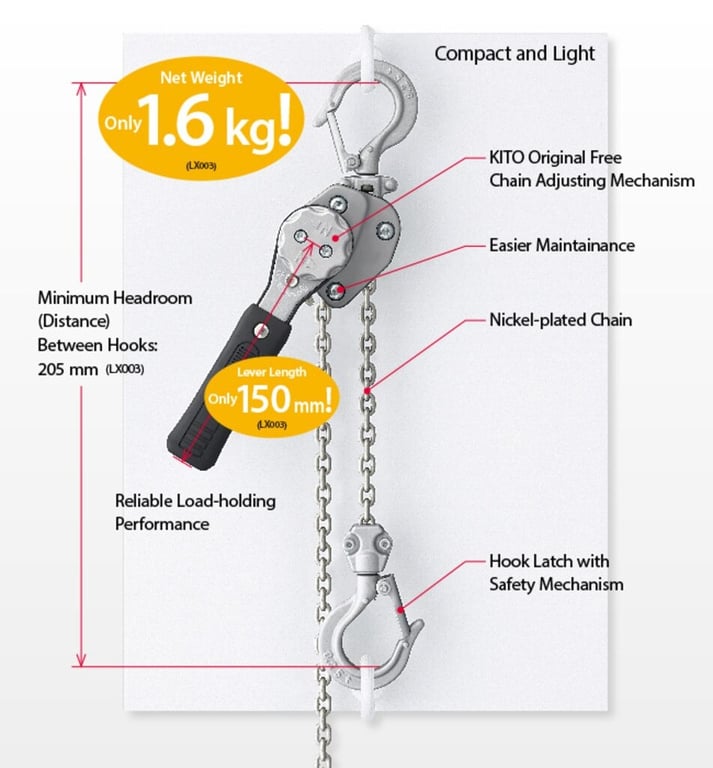

Ultra-compact, Lightweight, Portable Design
for Ease of Use in Elevated Work Positions

The Durable Die-cast Aluminum Body and Steel Frame are Compact and Lightweight.

KITO leverages its innovative technology to make the LX series compact and light. All units are very easy to carry and use, even in confined spaces or elevated work locations.

KITO Original Free Chain Adjusting Mechanism

Reliable load-holding performance no matter the size. Required chain length provided instantly in accordance with job condition.

Easier Maintenance

Fasteners are designed to protect threads from damage while making maintenance easier.

Nickel-plated Super-strong Load Chain (Breaking Stress of 1000 N/㎟)

Abrasion- and corrosion-resistant, plated load chain grade V (high breaking strength of 1,000 N/mm²)

Hook Latch with Safety Mechanism

Thicker safety tip hook latch has been designed for increased durability, and notched to securely engage the latch with the hook tip.

Minimal Hand-pull Force Required for Highly Reliable Pulling and Lifting to the Final Click.

The LX series, designed with a single-step reduction gear, is characterized by a small manual fastening force and assured load holding. Reliable load fastening can be provided to the last clicking of the lever.
