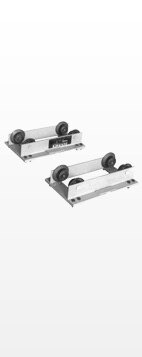

KITO Low-head End Carriage

KITO Low-head End Carriage – Ultimate Light-weight & Compact Size, Meticulous Dedicated Design.

To meet customer needs, we have enhanced performance while offering more standardized models.
The track wheel is now made of carbon steel, making it sturdier and longer-lasting.
Products are primer-coated, which allows customers to choose the desired top coat color.
Punch-mark on end carriages for easy centering and drilling for girders.

Capacity	1 to 5 t
Max. Span	6 to 15m
Traveling Motor Output (kW × 2)	0.21/0.25 to 0.63/0.75 m/min (50/60 Hz)

Specifications & Dimensions

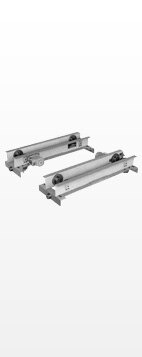

Motorized Low-head End Carriage

Both the track wheel and track wheel axle are designed for easy detaching thus reducing installation and maintenance time.

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (t)	Max. Span (m)	Traveling Motor Output (kW x 2) 50/60 Hz (m/min)				Applicable Square Rail (mm)	Max. Wheel Pressure (kN)
			L	S	H	SD
			10/12	20/24	30/36	20:5/ 24:6
EL010-12	1	12	0.21/ 0.25	0.21/ 0.25	0.34/0.4(B) 0.21/0.25 (E,Z)	0.21:0.053/ 0.25:0.063	75・100・ 125・150	4.51
EL020-12	2				0.34/0.4(B) 0.21/0.25 (E,Z)		100・125・150	9.31
EL030-12	3				0.34/0.4		100・125・150	10.5
EL050-12	5		0.63/ 0.75	0.63/ 0.75	0.63/0.75(E)	0.63:0.16/ 0.75:0.19 (E,Z)	125・150	17.6

Capacity: Working Load Limit (t)
To reinforce a connecting part of the rails with a plate on the rail web, make sure that the plate has a clearance for the end carriage. (Do not install the plate for 75 mm width rails or on the rail track.)
Use I-beam for the traveling rail.
When planning a girder or cart, contact FullSharp.
E: 200V50Hz, 200-220V/60Hz
Z: 380-415V/50Hz, 440-460V/60Hz
B: 220v/50Hz, 208-230V/60Hz, 380V/50Hz, 380-460V/60Hz

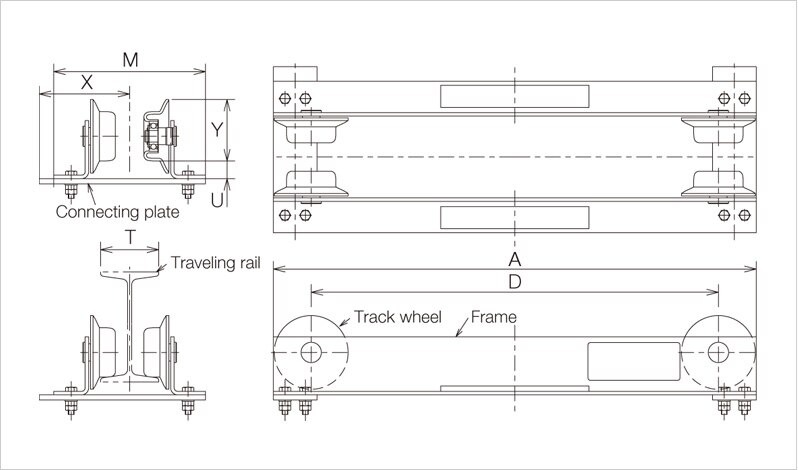

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

Code	A	B	M	U	Y *
EL010-12	1840	1400	T+171	34	121
EL020-12			T+191	36	165
EL030-12			T+241	38	162
EL050-12	2200	1760	T+279	39	201

* The height from the track surface of the traveling rail to the top of the end carriage.

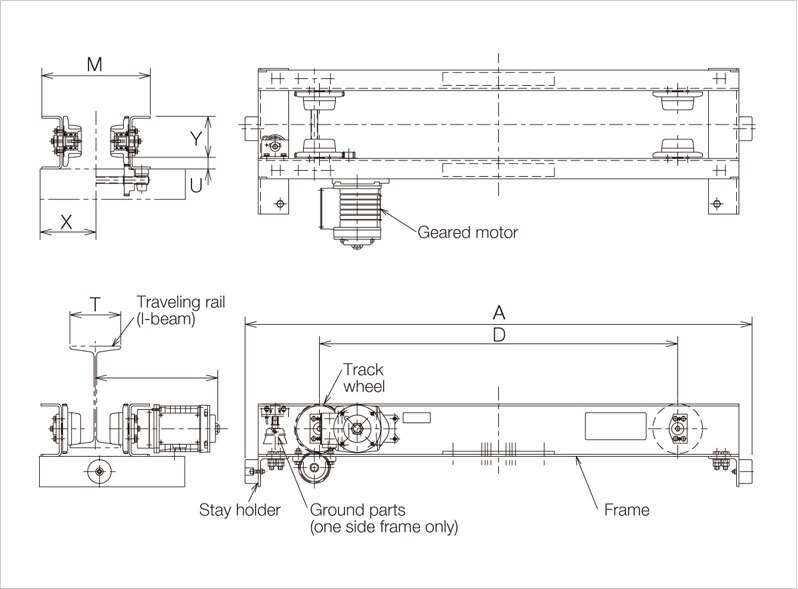

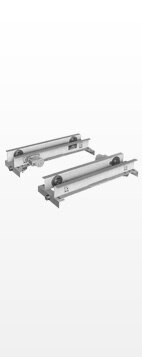

Urethane Wheel Motorized Low-head End Carriage

This end carriage employs durable urethane wheels developed by KITO and an idling gear in reinforced nylon resin and reduces noise and vibrations in travel. Both the track wheel and track wheel axle are designed for easy detaching thus reducing installation maintenance time.

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (t)	Max. Span (m)	Traveling Motor Output (kW x 2) 50/60 Hz (m/min)				Applicable Traveling Rail (mm)	Max. Wheel Pressure*1 (kN)
			L	S	H	SD
			10/12	20/24	30/36	20:5/ 24:6
CEL010-9	1	9	0.21/ 0.25	0.21/ 0.25	0.34/0.4(B) 0.21/0.25(E,Z)	0.21:0.053/ 0.25:0.063	125・150	3.8
CEL020-9	2	9	0.34/ 0.4	0.34/ 0.4	0.63/ 0.75	0.34:0.084/ 0.4:0.1	125・150	6.7

Capacity: Working Load Limit (t)
*1 Wheel pressure under the capacity beneath the end carriage with standard girder and maximum span to verify the endurance of the structure.

Use I-beam for the traveling rail.
When planning a girder or cart, contact FullSharp.
E: 200V50Hz, 200-220V/60Hz
Z: 380-415V/50Hz, 440-460V/60Hz
B: 220v/50Hz, 208-230V/60Hz, 380V/50Hz, 380-460V/60Hz

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

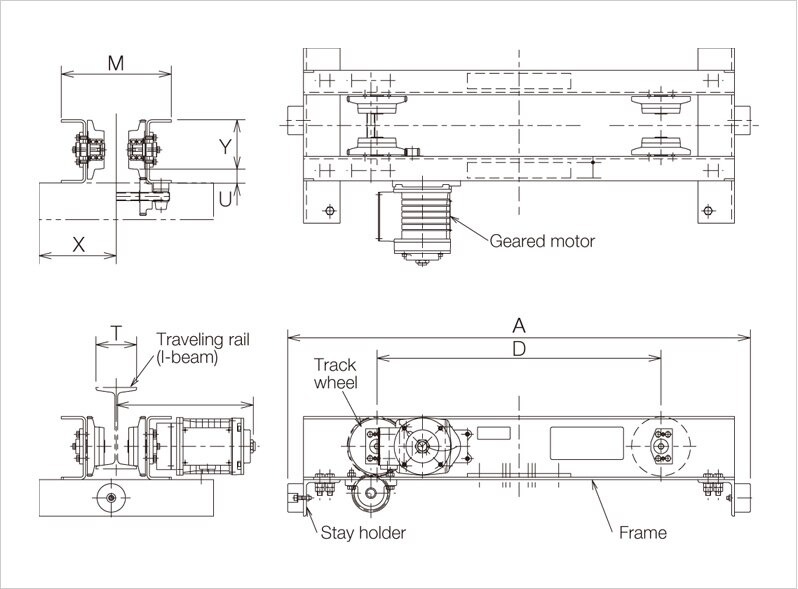

Code	A	B	D	F	Y
CEO010-9*3	1586	1307	800	32	188
CEO010-12*3	1696	1445	900
CEO020-12*3	1696	1445	900
CEO020-15	2082	1761	1000	39	239
CEO030-15	2082	1761	1000
CEO050-12*3	1852	1531	900
CEO075-12*3	2081	1766
CEO100-12*3	2081	1766

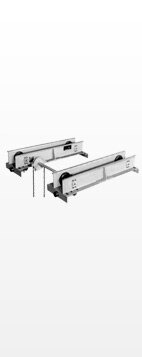

Geared Type Manual Low-head End Carriage

Both the track wheel and track wheel axle are designed for easy detaching thus reducing installation and maintenance time.

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (t)	Max. Span (m)	Applicable Traveling Rail (mm)
				GL010-12	1	12	75・100・125・150	4.5
				GL020-12	2		100・125・150	9.31
GL030-12	3	10.78					100・125・150
GL050-12	5	125・150	17.6

Capacity: Working Load Limit (t)
To reinforce a connecting part of the rails with a plate on the rail web, make sure that the plate has a clearance for the end carriage. (Do not install the plate for 75 mm width rails track.)
Use I-beam for the traveling rail.
When planning a girder or cart, contact FullSharp.

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

Code	A	B	D	F	Y
GL010-12	1840	1400	715	T+211	121
GL020-12			715	T+201	145
GL030-12			599.2	T+231	177
GL050-12			579	T+249	188

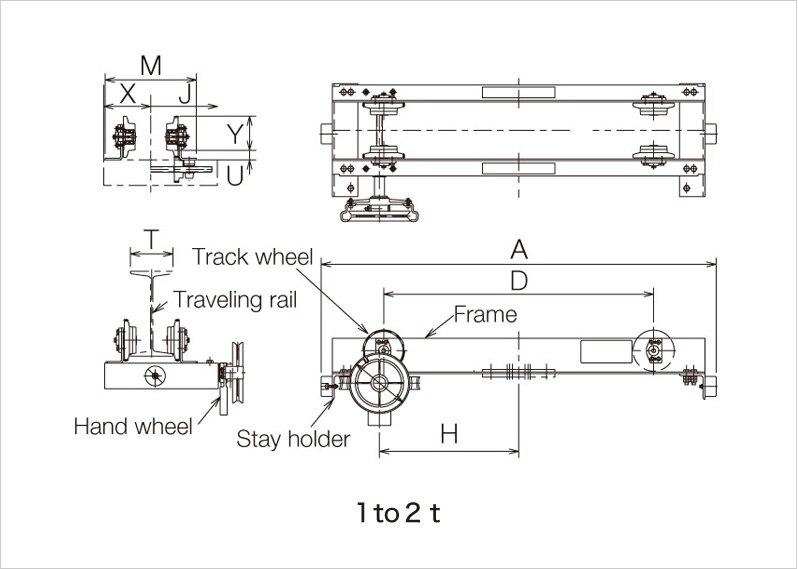

Plain Type Manual Low-head End Carriage (No Side Rollers)

The hand pulling operation has become smoother and easier with a pressed metal wheel (0.5 ton span 3 m and 1 ton span 6 m) and side rollers (1 ton span 9 m).

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (t)	Max. Span (m)	Applicable Traveling Rail (mm)	Max. Wheel Pressure (kN)	Wheel Diameter (mm)
PL005-3	0.5	3	75・100	1.76	71
PL005-6	0.5	6	75・100・125	3.5	85
PL010-6	1	75・100・125	3.5	85

Code

Capacity (t)

Max. Span

(m)

Applicable Traveling Rail (mm)

Max. Wheel Pressure (kN)

Wheel

Diameter (mm)

PL005-3

0.5

75・100

1.76

PL005-6

0.5

75・100・125

3.5

PL010-6

75・100・125

3.5

Capacity: Working Load Limit (t)
To reinforce a connecting part of the rails with a plate on the rail web, make sure that the plate has a clearance for the end carriage. (Do not install the plate for 75 mm width rails track.)
Use I-beam for the traveling rail.
When planning a girder or cart, contact FullSharp.

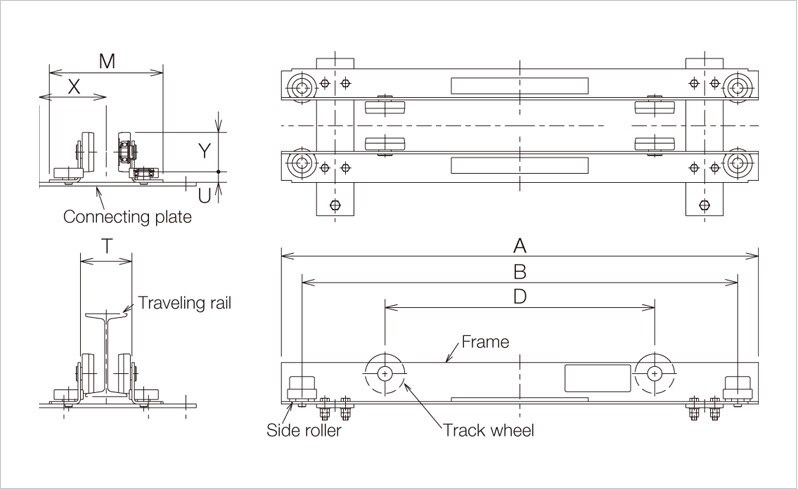

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

Code	A	B	M	U	Y *
PL005-3	470	350	T+157	25	89
PL005-6	830	700	T+157	31	106
PL010-6	830	700	T+157	31	106

*The height from the track surface of the traveling rail to the top of the end carriage.

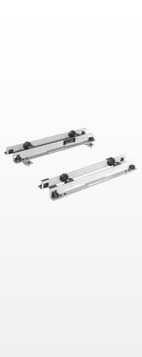

Plain Type Manual Low-head End Carriage (Side Rollers)

The hand pulling operation has become smoother and easier with a pressed metal wheel (0.5 ton span 3 m and 1 ton span 6 m) and side rollers (1 ton span 9 m).

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (t)	Max. Span (m)	Applicable Square Rail (mm)	Max. Wheel Pressure (kN	Wheel Diameter (mm)
PL010-9	0.5	9	75・100・125	3.92	95
PL010-9	1

Code

Capacity (t)

Max. Span

(m)

Applicable Square Rail (mm)

Max. Wheel Pressure (kN

Wheel Diameter (mm)

PL010-9

0.5

75・100・125

3.92

PL010-9

Capacity: Working Load Limit (t)
To reinforce a connecting part of the rails with a plate on the rail web, make sure that the plate has a clearance for the end carriage. (Do not install the plate for 75 mm width rails track.)
Use I-beam for the traveling rail.
When planning a girder or cart, contact FullSharp.

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

Code	A	D	M	U	Y *
PL010-9	1150	650	T+174	26	95
PL010-9	1150	650	T+174	26	95

* The height from the track surface of the traveling rail to the top of the end carriage.
