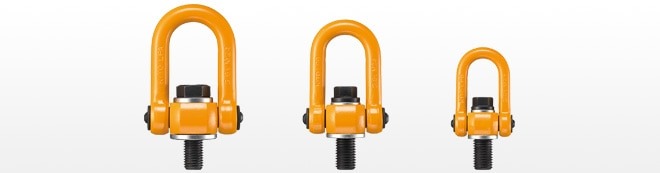

KITO Lifting Point

KITO Lifting Point – Designed for dangerous work for eye bolts, such as side lifting, reversing and raising of the load.

Work safety and efficiency improved by a 360º turning and 180º movable shackle
Up to 3-time higher working load than the JIS eye bolts with an identical bolt diameter
Wide variety of 21 types ranging from M8 to M64
Applicable to the extended bolt length

Maximum Working Load	0.3t (M8) to 20.0t (M64)
Objective Tapped Hole Material	Material stronger than iron (Tensile strength of 400 N/mm2 or more)
Operating Environment	-40 to 120 ℃ and 100%RH or Less (Not allowed underwater) Not allowed to use in the alkaline or acid atmosphere.

Product Specification

Can you safely leave the load to the eye bolts?

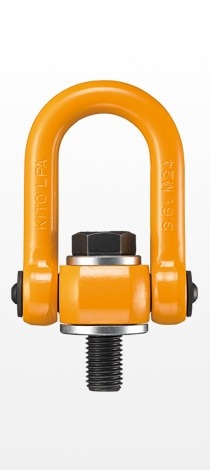

Supports Your Work with the 360º Turning and 180º Movable Shackle

The shackle moves in the load direction, making it unnecessary to adjust the ring direction as required by the conventional eye bolts.

Up to 3-Time Higher Working Load than the JIS Eye Bolts with the Same Diameter

High-strength bolts (tensile strength rank of 10.9) are used. Because of up to 3-time higher working load than the JIS eye bolts with the same thread diameter, tapping into the work object is smaller, leading to cost reduction.

Wide Variety of 21 Types

Standard line-up of bolt sizes ranging from M8 to M64.
Three types of working loads are available for M24 to M48 with an identical bolt diameter and selectable in line with the customer's type of work.

Available for the Long Bolts as Well

The bolt length can be changed in line with the type of work.
The scope of response differs depending on the size and capacity of the main body. See the catalog for details.

Registered with the NETIS (New Technology Information System)

Registration number: KK150017-A

* The NETIS is a database system operated on the Intranet and the Internet of the Ministry of Land, Infrastructure, Transport and Tourism for the purpose of sharing and providing new technological information.

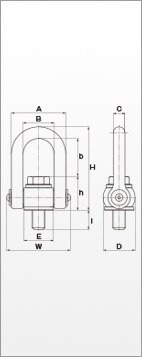

Specifications & Dimensions

Lifting Point

Specifications

*Major capacities example. For more information, please refer to Product Catalog.
*When ordering, let us know the "Item code".

Item Code	Type	Bolt Size	Max. Working Load （t）	Dimensions (mm)				Net Wt. (kg)	Bolt Tightening Torque (N・m）
Item Code	Type	Bolt Size	Max. Working Load （t）	A	C	D	H	Net Wt. (kg)	Bolt Tightening Torque (N・m）
LPA1003A00011	LPA00308	M8	0.3	41	8	28	71	0.18	7.8～14.7
LPA1005A00011	LPA00510	M10	0.5	41	8	28	71	0.19	9.8～24.5
LPA1008A00011	LPA00812	M12	0.8	50	10	32	88	0.35	14.7～39.2
LPA1016A00011	LPA01616	M16	1.6	65	14	42	109	0.75	39.2～98
LPA1025A00011	LPA02520	M20	2.5	83	18	50	135	1.38	68.6～147

Contact FullSharp for a quotation Download KITO catalogue (PDF)
