KITO Lifting Magnet

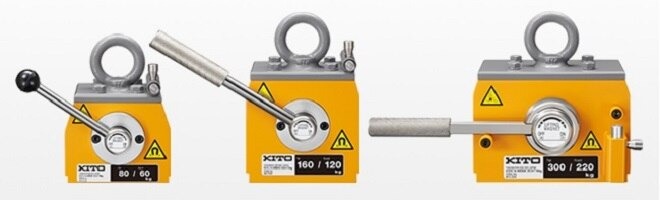

KITO Lifting Magnet – Compact, Lightweight, Permanent-Magnet-Type Lifting Magnet.

The magnetic force does not remain on the contact surface when the product is in the OFF condition, and it will not pick even a small paper clip up.
Four magnetic poles unfailingly attach to lifted loads.
Lineup of seven types with capacities from 80 kg to 1.6 t

Maximum Working Load	80 kg to 1.6 t
Objects Lifted	Steel plates, shape steel and round steel, and their procesed products

Maximum Working Load

80 kg to 1.6 t

Objects Lifted

Steel plates, shape steel and round steel,

and their procesed products

Product Specification

Small Capacity 70 kg to Large Capacity 1600 kg Allows You to Lift Both Flat and Round Steel with One Unit

Four Magnetic Poles Unfailingly Attach to Lifted Loads

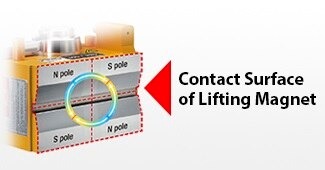

In contrast to typical lifting magnets which have two magnetic poles, KITO's Lifting Magnets incorporate four poles. This allows loads to be securely held.
The shape of the contact surface incorporates a V-shaped groove which enables the magnetic force to effectively flow to the curved surface of round steel.

Assures Safety by Using Permanent Magnets

Uses permanent magnets, unaffected by power supply failure.

Easy Handling

Attracts and releases lifted loads easily by simple operation of a switch lever.

Specifications & Dimensions

Lifting Magnet

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Max. Working Load (kg)		Mass (Net Weight) (kg)
Code	Flat Steel	Round Steel	Mass (Net Weight) (kg)
KRD8	80	60（φ120）	6
KRD16	160	120（φ160）	8
KRD30	300	220（φ200）	15
KRD50	500	360（φ200）	25
KRD80	800	600（φ300）	40
KRD100	1000	750（φ300）	54
KRD160	1600	1200（φ460）	101

Round steel applicable range: For KRD8 or KRD16, diameters range from 80 to 300mm. For KRD30, KRD50, KRD80, KRD100 or KRD160, diameters range from 80 to 600mm.
Please refer to P3 of the catalog for maximum working load.

The drawing of KRD8,KRD16 is different.

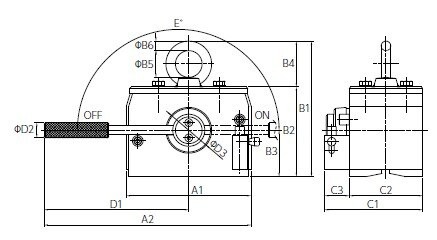

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

Code	A1	B1	C1	D1
KRD8	112	155	96.4	125
KRD16	118	178	93.5	182
KRD30	164	178	129	190
KRD50	204	218	145.5	215
KRD80	262	263	160	270
KRD100	283	307	170	300
KRD160	364	379.5	200	418

For more information, please refer to Product Catalog.

Selection of a Type of Use Lifting Magnet

Multiply the weight of the load by the correction coefficients obtained from the load condition and the usage condition. And select a Lifting Magnet with sufficient maximum working load required to safely lift the load.

①Weight of the Load x ②Correction Coefficients(Calculated by load conditions) ×

③Correction Coefficients(Calculated by usage conditions)

＝ Maximum working load required

Contact FullSharp for a quotation Download KITO catalogue (PDF)
