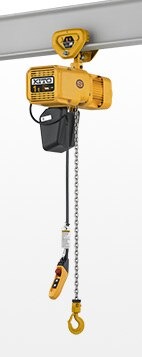

KITO ER2SP Electric Chain Hoist with Plain Trolley

KITO ER2SP Electric Chain Hoist with Plain Trolley – Smooth and ergonomic operation, reliable safety, enhanced durability, easier maintenance.

Compact body - lightweight
Smooth and ergonomic operation
Reliable safety
Enhanced durability
Easier maintenance
Environmentally friendly

Capacity	125 kg to 20 t
Standard Lift	3 m
Use	Lifting Up/Down, Traversing Left/Right
Voltage	220-230V (50/60Hz), 380-415V (50Hz), 380-440V (60Hz), 500V (50Hz, Pole Change for Dual Speed), 460V (60Hz for Specific Regions)

Standard Specification

Voltage	220-230V (50/60Hz), 380-415V (50Hz), 380-440V (60Hz), 500V (50Hz, Pole Change for Dual Speed), 460V (60Hz for Specific Regions)
Control Voltage	24V (110V for Specific Regions)
Duty Rating	Single Speed - 60% ED （60 min.）
Duty Rating	Dual Speed - 40/20% ED （30/10 min.）
Classification	M4, M5, M6 (ISO); 1 Am, 2 m, 3 m (FEM); H4 (ASME)
Motor Insulation	Class B for 220-230V (50/60Hz), 380-440V (60Hz) Class F for 380-415V (50Hz), 380-440V (60Hz)
Enclosure	Hoist Body - IP55, Push Button Control - IP65
Operating Temperature	-20 to 40℃ (-4 to 104℉)
Operating Humidity	85%RH or Less

Leveraging Today's Most Advanced Hoisting Technology, This High-performance Hoist Exceeds the Expectations of Even the World's Most demanding Users.

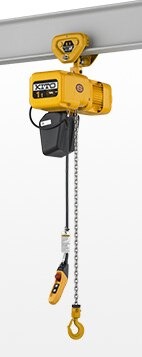

KITO ER2SP Electric Chain Hoist with Plain Trolley

Compact Body - Lightweight

The compact aluminum die-cast body features exceptional rigidity and effective protection against dust and water. It has a simple structure and uses minimal parts, while the fine-tuned load-chain profile better exploits the lighter hoist body weight compared to the previous ER.

Smooth and Ergonomic Operation

1. Inverter - Smooth Transitional Speed
The dual-speed inverter delivers smoother movement than the pole change motor, reducing the load swing, while the high-to-low speed ratio can be set to a large value. These allow smooth starts and improve low-speed stops and positioning accuracy. The standard speed ratio is 6:1; adjustable up to 12:1* for lifting and 10:1* for traversing.
* For non-standard speed ratios, please request them when placing order.

2. Original Push Button Control
Your comfort and safety are assured with push button pendants that are fitted with ergonomic controls and an emergency stop button.

3. Load Sheave-reduced Vibration
Increasing the number of load sheave pockets helps relieve vibrations produced by the revolving polygonal sheave on the hoist’s body and load chain.

Reliable Safety: Friction Clutch and Upper-lower Limit Switch

1. Long-life Friction Clutch
The friction clutch prevents damage to the hoist by automatically engaging in the event of an excessive overload. When the friction clutch engages, the motor is allowed to continue turning protecting both you and the hoist.

2. Durable Upper/Lower Limit Switch
The limit switch stops working if either end of the load chain comes into contact with the hoist body; protecting against unnecessary downtime and service costs. The ER2’s redesigned upper-lower limit switch features enhanced durability and a low-profile design for improved hoist headroom.

Reliable Safety: Thermal Protector and Magnetic Brake

1. Thermal Protector
To prevent motor burnout due to excessive usage, a standard thermal protector is installed in the motor.

2. Magnetic Brake - Failsafe Brake
KITO’s DC-current brake design reduces maintenance costs by eliminating initial drag and responding immediately on stoppage. This also exposes the motor to less torque for ultra-quiet and smooth operation. Unlike voltage brakes, the advanced technology used in KITO’s DC-current brake protects against hoist failure in the event of motor burnout or single-phasing.
>10-year/ 2,000,000 cycle brake warranty
>No adjustment needed
>Electrical failsafe design

Reliable Safety: Emergency Stop

The emergency stop, provided as standard, allows the motor power to be disconnected in an emergency without cutting off the main power supply.

Enhanced Durability: High-end Duty Rating with Unique Motor Frame Fins and Fan Cover

1. High-end Duty Rating
The ER2 achieves M6 (ISO)/3 m (FEM) class with a duty cycle of 60% ED. Supporting use under the most demanding environments and conditions, this long-service-life hoist is a heavy-duty product which can also handle high-frequency or long-lift operations.

2. Unique Motor Frame Fins and Fan Cover
A unique fan-cooled motor with motor frame fins and a fan cover have been combined in this purpose-built design. This design produces a much quieter motor unit as well as enhanced fan cooling capabilities, while the aluminum die-cast motor frame with external motor fan limits any heat-up during frequent operation.

Enhanced Durability: Super-strong, Corrosion- and Wear-resistant Load Chain

KITO’s world-class original super-strong nickel-plated load chain, certified by the German Institute, uses unique technology for exceptional fatigue- and wear-resistance.

Easier Maintenance: Suspension and Easy Maintenance Control Panel

1. Suspension
The hoist can easily be changed from a hook to a lug-mount configuration with external suspension pins on most models.

2. Easy Maintenance Control Panel
Simple layout of controls and a single swing-down panel. The captured control cover comes complete with a standard wiring diagram for swift on-site access.

Easier Maintenance: CH (Counter Hour) Meter (Inside Inverter for Dual Speed)

This standard feature shows the cumulative hours of hoist operation and the number of lowering starts on the LCD of the CH meter, which allows the user to maintain the unit based on the frequency of use. By maintaining historical CH meter data, the inspection and replacement periods for gear oil, contactors, brakes and load chains can be efficiently controlled; allowing the equipment to be used with confidence.

Environmentally Friendly

1. No Hazardous Substances
Built smarter, eliminating the use of harmful materials. Environmentally friendly and RoHS-compliant.

2. Energy Saving
Allows energy to be saved due to the reduction in rated current draw compared to the previous ER.

3. Low-noise
The utilization of the inverter, 4-pole motor as well as the electromagnetic brake, reduces the noise during operation and braking.

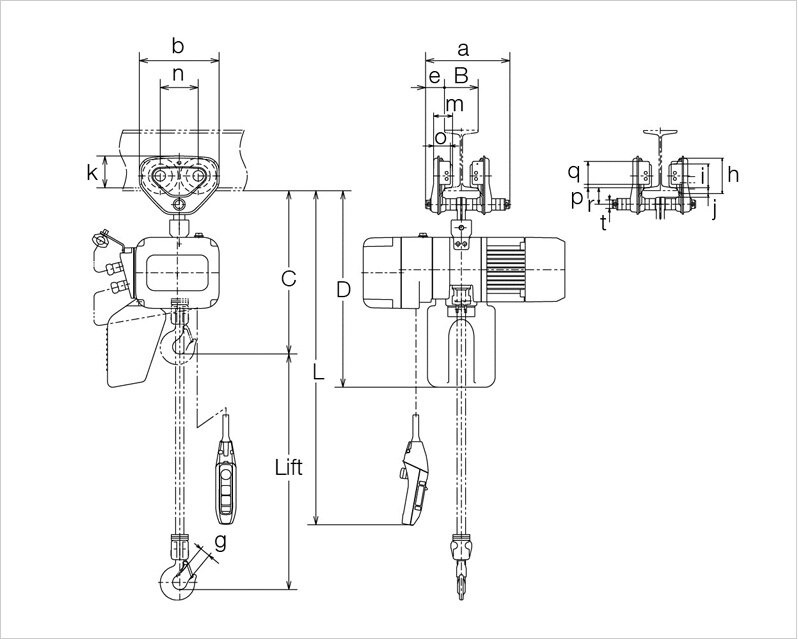

Specifications & Dimensions

Dual Speed 'Inverter' with Geared Trolley

The dual lifting speed inverter delivers smoother movement than the pole change motor, reducing load swing.

Specifications
