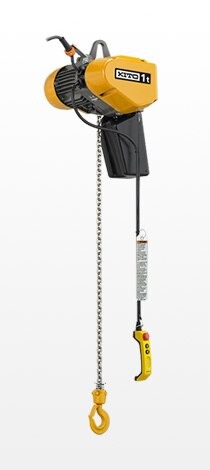

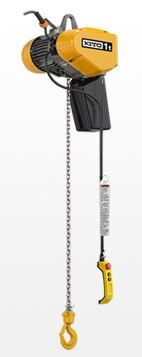

KITO EQ Electric Chain Hoist

KITO EQ Electric Chain Hoist – Ultimate lightweight and compact size, meticulous and dedicated design.

Integrated body protecting the high-performance and highly functional unit
The combination of idea and technology materialize in a lightweight size.
- Meticulous inverter-dedicated design
A dual-safety mechanism prevents accidents from excessive loads.
- Equipped with a friction clutch and electronic overload limiter.
Smooth and ergonomic operation
Shuts off motor current during excessive lifting/lowering to prevent accidents.
Meticulous long-life design
Suitable for severe environments and working conditions - Simple design with Grade M6 - High-end duty rating with unique motor frame fins and fan cover
World-class KITO original chain - Superstrong nickel-plated load chain
Visual indication of maintenance timing
Shuts off the motor circuit in case of emergency.
Higher inspector work efficiency - Easier maintenance
Environmentally friendly

Capacity	125 kg to 1 t (Dual Speed Only)
Standard Lift	3 m
Use	Lifting Up/Down
Voltage	220-230V (50/60Hz), 380-460V (50/60Hz)

Standard Specification

Capacity	125 kg to 1 t (Dual Speed Only)
Voltage	200-230V (50/60Hz), 380-460V (50/60Hz)
Control Voltage	DC24V
Duty Rating	40/20％ED（30/10min）
Motor Insulation	Class B
Classification	1t: M5 (ISO/JIS), 2 m (FEM), H4 (ASME)
Classification	125 to 500 kg: M6 (ISO/JIS), 3 m (FEM), H4 (ASME)
Enclosure	Hoist Body: IP55, Push Button Control: IP65
Operation Method	Push Button Control (Floor Operation)
Operating Temperature	-20 to 40 ℃ (-4 to 104℉)
Operating Humidity	85%RH or Less

Safe and Durable Structure with Easier Maintenance

The Integrated Body Protects the High Performance Capabilities and Functions of the Hoist

Outstanding rigidity, effectively dustproof and waterproof, and suitable for severe environments and working conditions
No-load high-speed function
Simply structure and integrated body with few component parts
Dustproof and jetproof body (IP55)

The Combination of Idea and Technology Materialize in a Lightweight Size - Meticulous Inverter-dedicated Design

Fully miniaturized mechanical parts incorporating inverter-based smooth start and stop
Transformer-free structure based on inverter DC power
Thermal protector-free structure based on the electronic thermal system

A Dual-safety Mechanism Prevents Accidents from Excessive Loads - Equipped with a Friction Clutch and Electronic Overload Limiter

The friction clutch prevents the hoist body and load chain from breaking in the event of an abnormal load, e.g. overload and lifting anchored objects.
The electronic overload limiter detects overload with the inverter and stops operation immediately.

Smooth and Ergonomic Operation

A No-load high-speed function comes as standard, allowing a hoisting speed 1.3 times faster during no-load operation. When the no-load condition is detected by the inverter, this function is activated automatically to switch to high-speed operation; easily and safely boosting work efficiency. This function is easily activated (ON/OFF) with the push button control.

Shuts Off Motor Current during Excessive Lifting/Lowering to Prevent Accidents

The upper-lower limit switch prevents damage to the hoist body and load chain during excessive lifting/lowering.
The simple structure of the upper-lower limit switch reduces dead space

Meticulous Long-life Design - Suitable for Severe Environments and Working Conditions - Simple Design with Grade M6 - High-end Duty Rating with Unique Fan-cooled Motor

The EQ achieves M6 (ISO)/3 m (FEM) class (refer to “Hoist Classifications” section), with a duty cycle of 40/20% ED. Supporting use in the most demanding environments and conditions, this long-service-life hoist is a heavy-duty product which can also handle high frequency or long-lift operations. The gearbox is lubricated in an oil bath for improved resistance to wear and tear and enhanced cooling, while a unique fan-cooled motor, featuring frame fins and a fan cover, have been configured in a purpose-built design; resulting in a far quieter motor unit and enhanced fan cooling capabilities.

World-class KITO Original Chain - Superstrong Nickel-plated Load Chain

Highly enhanced fatigue and wear resistance due to ingenious technology
Special alloy steel quenched chain: exceptionally strong, durable and accurate

Visual Indication of Maintenance Timing

Capable of showing the number of starts and cumulative hours of operation for the hoist in the data display, allowing maintenance and inspection according to the frequency of use
Capable of controlling inspection and replacement timings for component parts, etc., to suggest a maintenance plan for safe operation

Shutting Off the Motor Circuit in Case of Emergency

Capable of shutting off the motor circuit at hand by pressing the emergency stop button
Originally designed easy-to-operate push button switch based on ergonomics
24V DC operating voltage for higher safety

Higher Inspector Work Efficiency - Easier Maintenance

Easily remove suspension eyes by installing a connecting shaft at the upper part of the body
Centralized inverter control minimizes the number of electric parts and equipment and replacement parts.

Environmentally Friendly

Free of 15 environmentally hazardous substances specified by KITO, including six European RoHS directive substances
Low-noise during operation and braking due to a 4-pole motor and pull-rotor brake

Specifications & Dimensions

Dual Speed 'Inverter' with Suspension Eye

The dual speed inverter delivers smoother movement than the pole change motor, reducing load swing.

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (t)	Lifting Motor	Lifting Speed* (m/min)
		Output (kW)	50/60Hz
		Output (kW)	High	Low	No Load High Speed
EQ001IS	125kg	0.5	17.0	2.8	22.1
EQ003IS	250kg	0.5	10.0	1.7	13.0
EQ005IS	500kg	0.75	7.6	1.3	9.9
EQ010IS	1	1.5	7.0	1.2	9.2

*The high speed is preset to the maximum speed in KITO factory. The speeds are adjustable between High and Low.

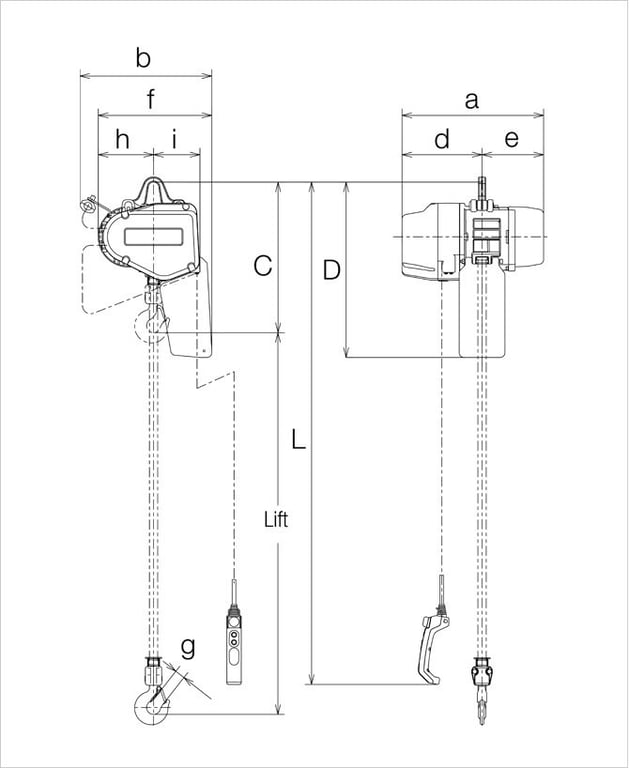

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

Code	Headroom: C	D	b	d	e
EQ001IS	395	485	367	230	187
EQ003IS	395
EQ005IS	410
EQ010IS	465	535	403	245	188
