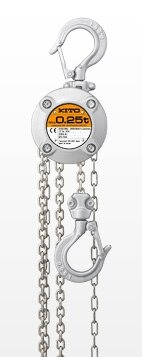

KITO CX Series Hand Chain Hoist

KITO CX Series Hand Chain Hoist – Ultra-Compact Hand Chain Hoists: Extremely Lightweight and Portable.

Compact, lightweight and simple design
Integral aluminum body
Easily portable anywhere
Easy and smooth operation with minimal hand-pull force

Capacity	250kg, 500kg and 1t
Standard Lift	2.5m
Operating Temperature	-40℃ to +60℃
Requests for Chain Lengths	Load Chain : 3.0 to 12.0 m (up to 6.0 m for the CX010L) in 1m units Hand Chain : Standard Length up to 12.0 m (up to 6.0 m for the CX010L) in 0.5 m units

Standard Specification

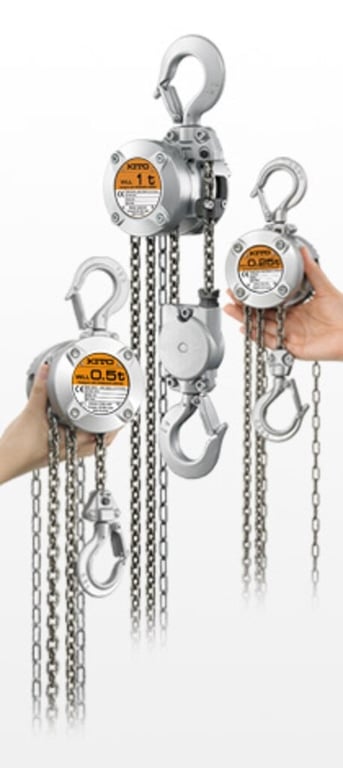

High Portability to Carry Everywhere !

Standard Specification

High Portability to Carry Everywhere !

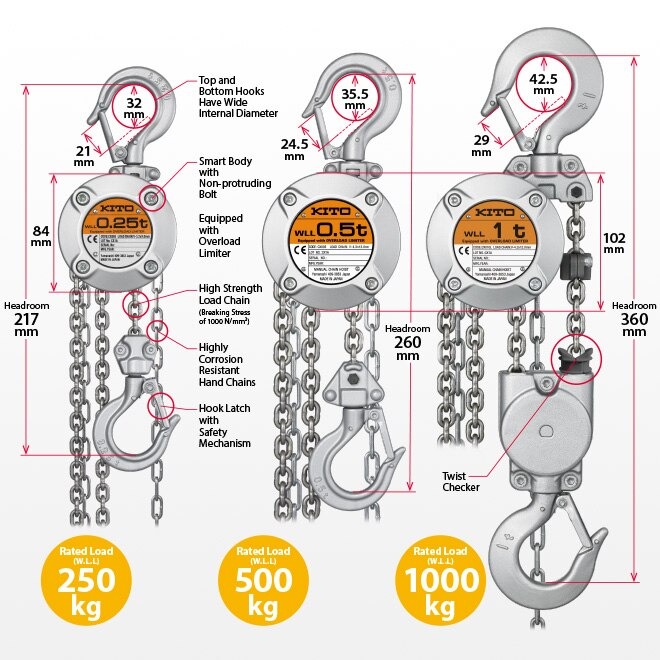

Integral Aluminum Body

Aluminum body with steel frame for superior strength

Wide Internal Hook Diameter Expands the Applicable Range. Top and Bottom Hooks

Wide hook opening allows easy installation onto almost any reliable attachment point.
Thicker safety tip hook latch designed for increased durability, and notched to securely engage the latch with the hook tip.

Nickel-plated Super-strong Load Chain (Breaking Stress of 1000 N/㎟)

Abrasion- and corrosion-resistant, plated load chain grade V (high breaking strength of 1,000 N/mm²).

Equipped with Overload Limiter

The advanced-design overload limiter comes as standard on the CX to enhance worker safety and protect the hoist against excessive overloading.

Easy and Smooth Operation with Minimal Hand-pull Force

Minimal force required to lift load

Suitable for work in confined spaces or wherever you need to lift a light load. Can be transported, installed and stored effortlessly.

Hand Chain

Durable and highly corrosion resistant hand chain

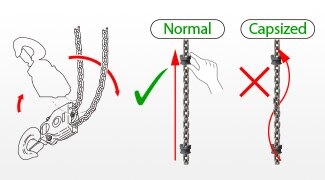

Equipped with a "Twist Checker"

Use of the hoist in the capsized condition will cause scratching or deformation of the product and chain, and is dangerous.

Capsizing is the condition where chain twisting has occurred in a double type bottom hook as shown in the figure below. Using the twist checker, it has become easier than before to judge whether capsizing has occurred.

Specifications & Dimensions

CX

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (kg)	Standard Lift (m)	Standard Length of Hand Chain (Folded) (m)	Load Chain Dia. × Chain Fall (mm)	Mass (Net Weight)* (kg)
CX003	250	2.5	2	3.2 x 1	2.4
CX005	500	2.5	2.5	4.3 x 1	4.5
CX010L	1000	2.5	2.5	4.3 x 2	7.3

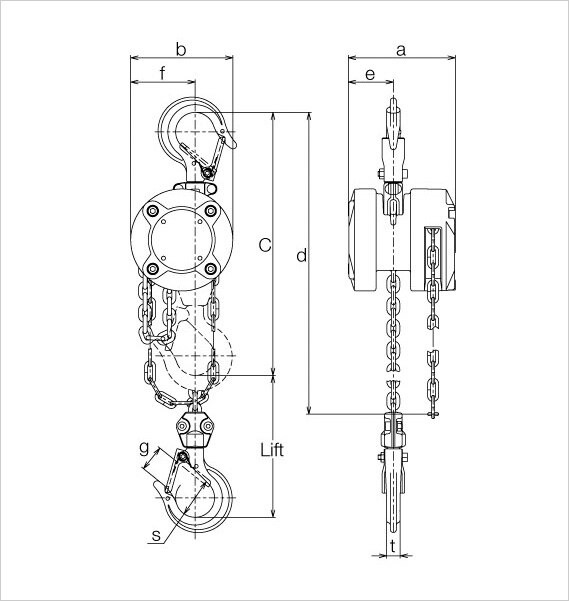

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

Code	a	b	Headroom: C	Length from the Top Hook: d
CX003	88	84	217	2100
CX005	103	102	260	2600
CX010L	103	122	360（340）*	2610

*The figures in the brackets show the numerical values excluding the twist checker.
