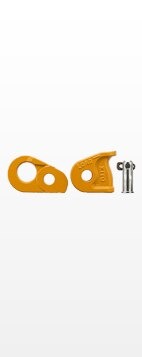

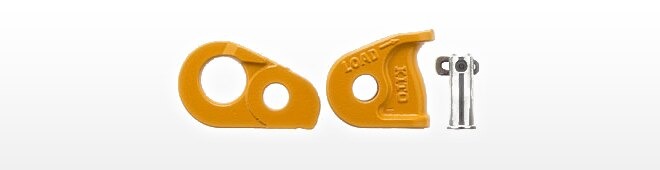

KITO Clip (KC)

KITO Clip (KC) – Easy-to-use and economical.

Can be fixed easily in any location along a wire.
The wire is firmly gripped by simply inserting it into the frame and pulling.
Feature a special groove that protects the wire.
Economical and versatile

Product Specification

Easy to use and Economical

Can Be Fixed Easily in any Location along a Wire

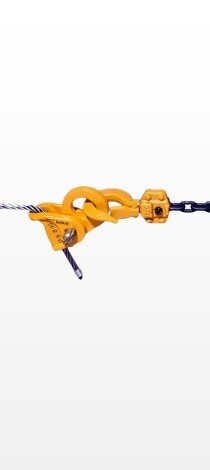

The KITO Clip is a fixture for wire ropes developed for combined use with the LB or CB series.
Example applications: Horizontal pulling of loads, logging in mountains, uprooting (stump pulling), horizontal pulling of machines.

Specifications & Dimensions

KC

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (t)	Applicable Wire Rope Diameter (mm)	Mass (Net weight) (kg)	Cam dimensions (mm)
Code	Capacity (t)	Applicable Wire Rope Diameter (mm)	Mass (Net weight) (kg)	a	b	c
KC100	0.75	8～10	0.9	34	16	10.5
KC140	1.5	12～14	2	42	19	15.5
KC200	3	16～20	4.8	48	20	18

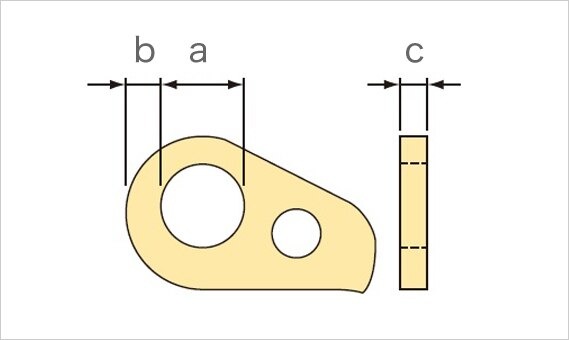

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.
