KITO CB Series Special Application Models – KITO can provide solutions to meet customers' requests.

KITO has various special application products to meet customers’ requests based on model M3, which contributes significantly to enhancing operational productivity and safety.

Special Applications

*1 The diameter of the hand chain is all 5 mm.
*2 It is a load level to switch from ｈigh speed to low speed when it is lifting.

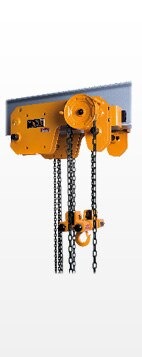

SHB (Short Headroom Type)

KITO CB Series Special Application Models

This ultra-low headroom trolley hoist offers premium quality and durability in a low-profile package. With KITO's SHB hand chain hoist, the built-in geared trolley configuration minimizes the beam-to-hook distance, making it ideal for applications where longer hook travel is required. This hoist is also ideal for demanding industrial lifting applications within confined spaces.

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (t)	Standard Lift (m)	Hand-pull to Lift Full Load (kg)	Flange Width: B (mm)		Load Chain Dia. × Chain Fall (mm)	Mass (Net Weight) (kg)
Code	Capacity (t)	Standard Lift (m)	Hand-pull to Lift Full Load (kg)	Standard	W30	Load Chain Dia. × Chain Fall (mm)	Mass (Net Weight) (kg)
SHB010	1	2.5	30	58 - 163	164 - 305	5.0 × 2	65
SHB020	2	3.0	27	82 - 204	205 - 305	7.1 × 2	110
SHB030	3		34	82 - 204		8.0 × 2	155
SHB050	5		38	125 - 204		9.0 × 2	275
SHB075	7.5	3.5	31	150 - 219	220 - 305	9.0 × 4	370
SHB100	10	3.5	41	150 - 219	220 - 305	9.0 × 4	370

・Other capacities are avialable upon request.
・The left photo includes lug and buffer as option.

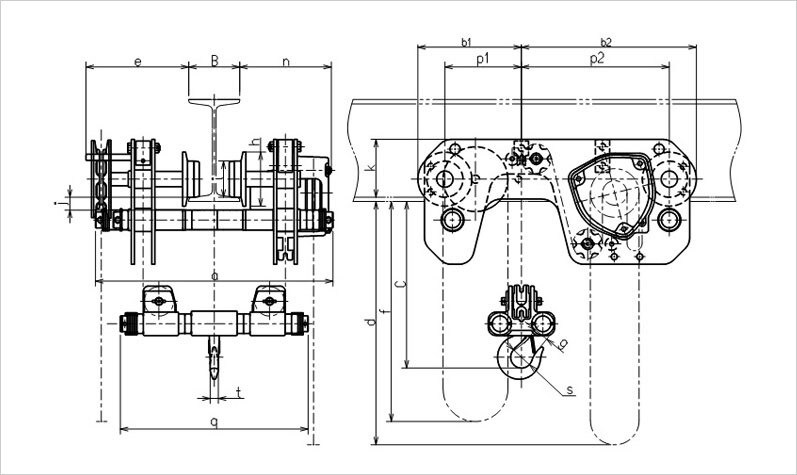

Dimensions (mm)

*Major capacities example. For more information, please refer to
Product Catalog.

Code	Headroom: C		e	n	b1	b2
Code	SHB	CBSG	e	n	b1	b2
SHB010	115	305	201.5	179.5	203	343
SHB020	145	380	227	194	243.5	398.5
SHB030	165	535	240	206.5	294	464
SHB050	195	660	264.5	223	349.5	539.5
SHB075	255	870	291	215.7	392.6	585.6
SHB100	255	860	291	215.7	392.6	585.6

The above dimensions are for SHB without lug and buffer.

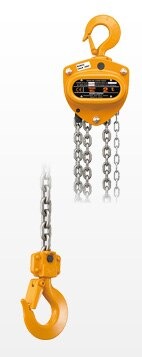

Offshore Model

Specially designed for use in the robust and harsh environments of offshore and underground mines.

Features

Forged Hook Latches
Fitted to top and bottom hooks; capable of withstanding side loading exceeding 30% of the safe working load without failure or distortion.

Sealed Bearings 'Reduced Downtime'
Double-Shield Sealed Bearings prevent the ingress of dirt, thereby prolonging bearing life and efficiency.

Double-brake Pawls
Two independent brake pawls, each fitted with a pair of independent pawl springs, for the safest and most reliable braking system available.

Cap Nuts 'Reduced Maintenance Costs'
All exposed threads are protected from mechanical damage and ingress of dirt by fitting domed nuts to all external studs.

Customized Model
