Traverse Systems

Overhead rail system (Traverse system) – Max load 600 kg

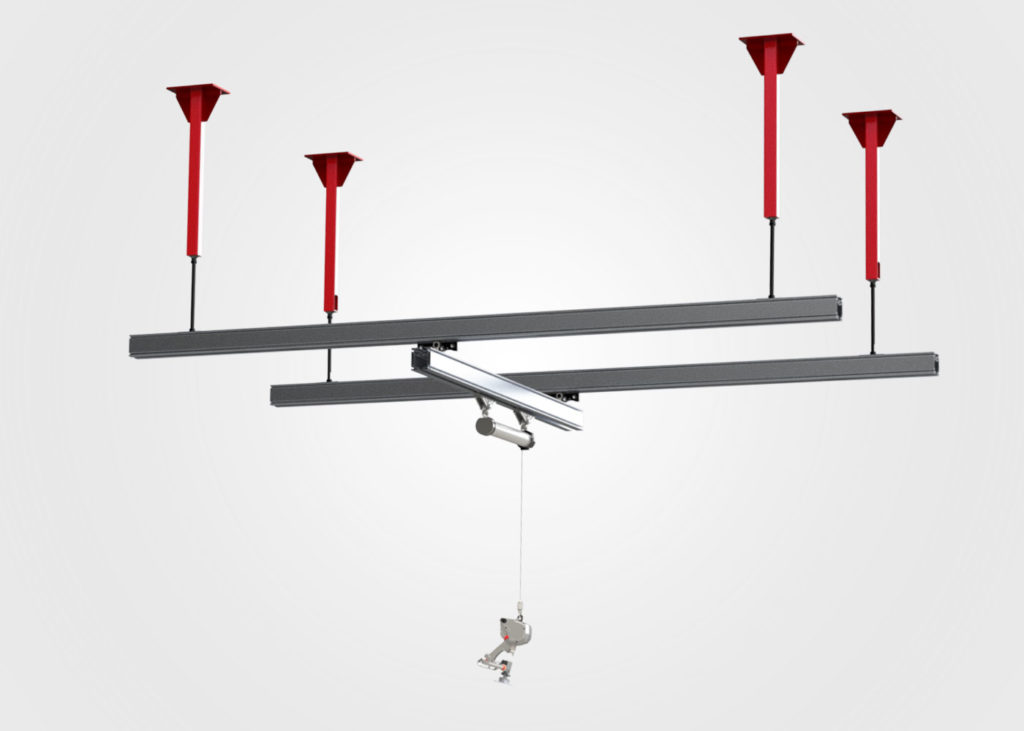

Hệ thống ray trên cao Lifts All — **Lifts All overhead rail system**

Cầu trục lắp trên sàn (golvmonterat) — **Floor-mounted crane (golvmonterat)**

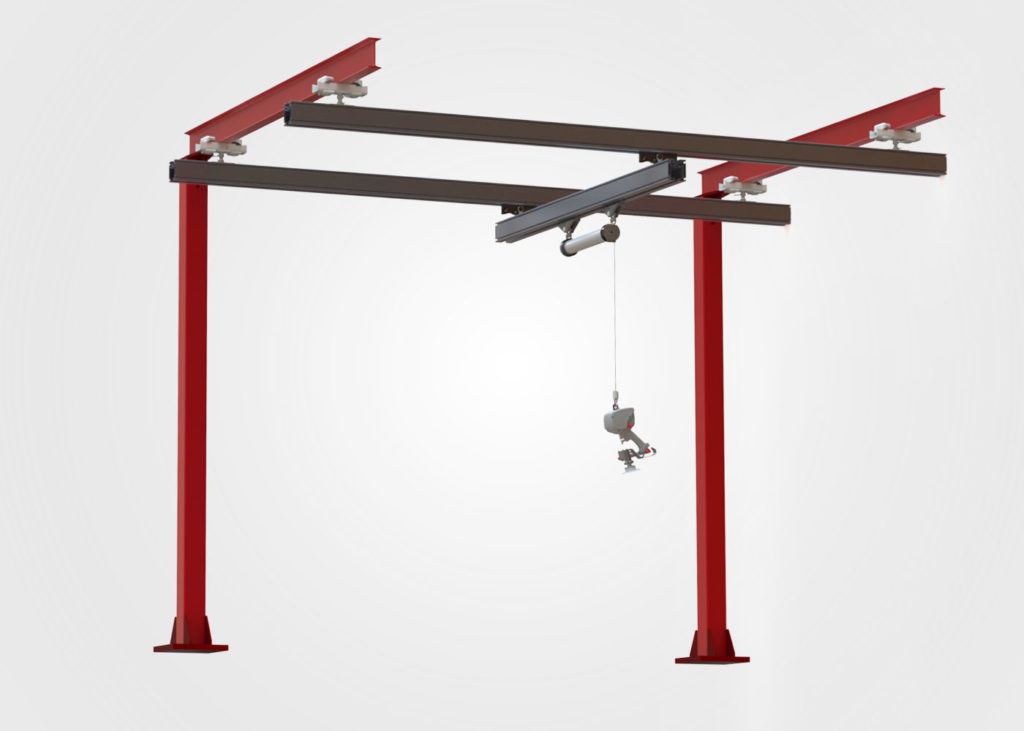

Cầu trục lắp sàn tối giản, tiết kiệm diện tích — **Minimal floor-mounted crane, space saving**

Aluminum overhead rail system for loads up to 600 kg (1,400 lbs)

The Lifts All overhead rail system is built from extruded aluminum profiles – strong yet flexible, with smooth, quiet operation, ideal for a good working environment. Compared with other light crane systems on the market, the Lifts All system needs only 1/3 of the force to move a load.

The system can be installed in several ways: ceiling mounted, wall mounted or on existing columns – depending on the space and environment of the facility. We also offer custom solutions to suit each workstation and each customer's specific lifting needs.

Request configuration advice

Max load600 kg
Travel force1/3 force
MaterialExtruded aluminum
Experience20+ years

Why choose Lifts All aluminum rails

Smooth & effortless

Built from extruded aluminum – a strong yet light and flexible structure.
Smooth, low-noise operation – a better working environment.
Needs only 1/3 of the force to move a load compared with conventional light crane systems.
Less operator fatigue and steady productivity throughout the shift.

Flexible & customizable

Versatile installation: ceiling mounted, wall mounted or on existing columns.
Customized to the space, environment and lifting requirements.
More than 20 years of experience handling difficult installation conditions.
Combines with the Bal-Trol hoist and grippers to form a complete system.

Typical installation types

Lắp trên sàn — **Floor mounted**
A freestanding crane system on floor columns – no drilling into the ceiling or walls, ideal when the building structure does not allow suspension.

Lắp sàn tối giản — **Minimal floor mounted**
A minimal version that saves the most floor space – suited to tight work areas while still providing full working coverage.

Lắp trên trần — **Ceiling mounted**
Suspended directly from the ceiling structure – frees up all floor space and covers a large working area for multiple stations.

Solutions for every facility condition

If the ceiling is too high or too low, or other factors make installing a lifting system difficult, Lifts All will find a suitable solution for you. With more than 20 years of experience customizing lifting systems, we always find an option that matches your needs and your workstation.

The overhead rail system can also be customized: a low-build version to save headroom, or an extendable version. For example, if you need to reach an area outside the rail system frame, we can add a telescopic rail for this purpose.

Clean room systems

In its basic form, the rail in the Lifts All overhead rail system is already suitable for clean room environments. With a few simple accessories, we can seal the slots in the rail to prevent fine dust from collecting inside – meeting the strict hygiene requirements of the pharmaceutical, electronics and food industries.

System in operation video

Floor-mounted overhead rail system with 2 support columns (gallows)

FULL-SHARP AUTOMATIZED VN (FULLSHARP)
Authorized distributor of Lifts All AB (Sweden) lifting equipment in Vietnam
For advice on rail system configuration and an official quotation, please contact a FULLSHARP representative.
