ENDO Retractor ERL Series

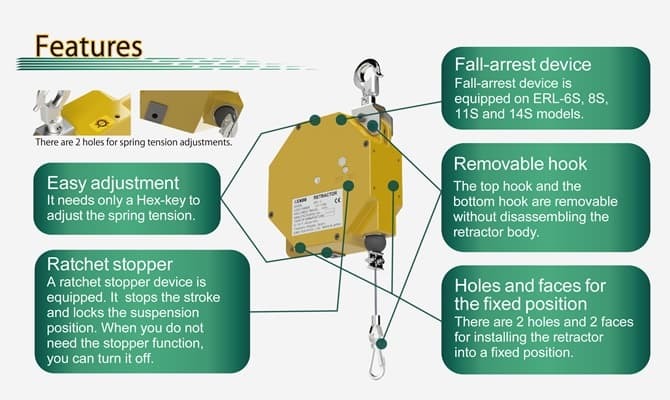

ENDO Retractor ERL Series is part of the ENDO Retractor range. ENDO retractors pull the tool back to its original position after use; the tension increases as the rope is drawn out.

  • The retractor is a spring balancer whose tension of a spring is changed with an extension of a wire rope.
  • Maximum wire rope travel is relative to the setting of the spring tension. (See catalog).
  • Fall-arrest device is equipped on ERL-6S, 8S, 11S and 14S.
  • The ratchet stopper device can be turned on or off according to your requirement.
  • The top hook can be detached without disassembling the retractor body.
  • ERL-8 is a successor model to ER-10A/10B.

Product Video

Specifications

※Wire length varies depending on tension setting and suspension load (see catalog)

Model Fall prevention device CE Certification Capacity (kg)Wire rope travel (m)※Mass (kg)
ERL-3-Yes1.5～3.04.03.8
ERL-6--3.0～6.04.04.4
ERL-8--5.0～8.04.04.8
ERL-11--8.0～11.04.05.1
ERL-14--11.0～14.04.05.1
ERL-6SYesYes3.0～6.04.04.4
ERL-8SYesYes5.0～8.04.04.8
ERL-11SYesYes8.0～11.04.05.1
ERL-14SYesYes11.0～14.04.05.1
Contact FullSharp for a quotation
