ENDO Position Balancer

ENDO Position Balancer is part of the ENDO Spring Balancer range. ENDO spring balancers suspend tools and parts from 0.3 kg to 200 kg so the operator carries almost no weight: standard types, hose balancers, retractors, clean-room types and counter reaction balancers.

This device is a spring balancer equipped with a stepping motor

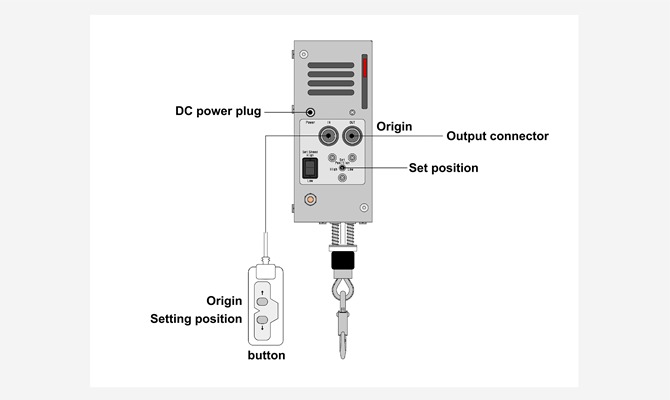

By controlling the motor, it is possible to automatically lower the suspended load to the set position and automatically raise it to the origin
Automatic wire lowering and raising can be controlled by electrical signals

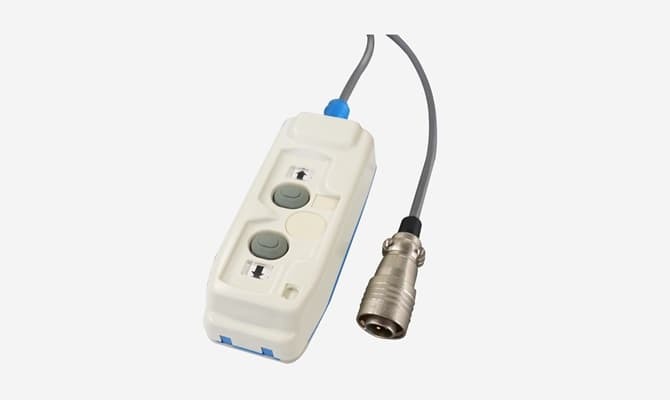

The input of electric signals can be combined with elements such as buttons, sensors or timers
It can be used like a normal spring balancer when the motor is not running
Spring adjustment is safe and easy mechanism that does not cause rapid rewinding

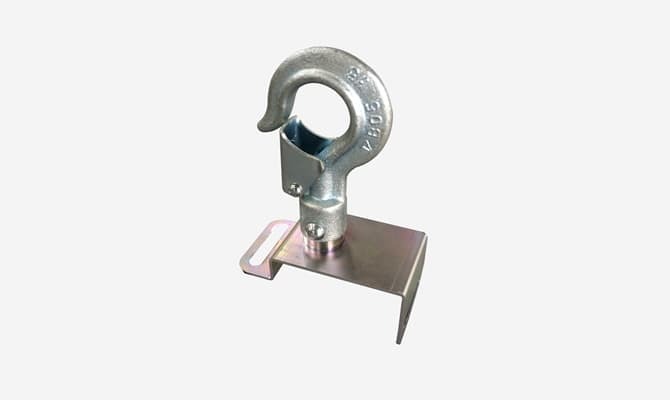

Upper hook is sold separately

Product Video

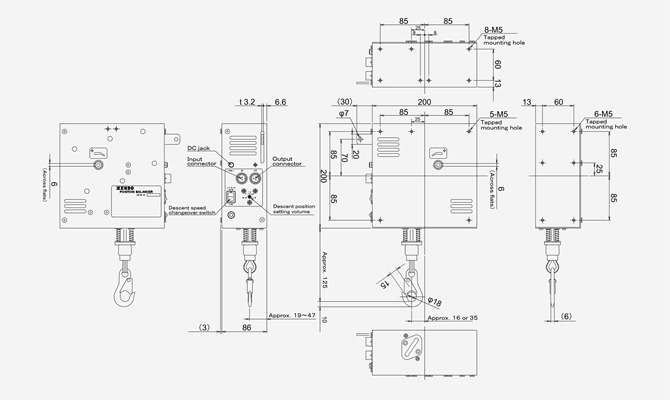

Specifications

※When the vehicle is empty or out of balance, it cannot be lowered or raised or lowered by automatic operation.
※Upper hook is optional

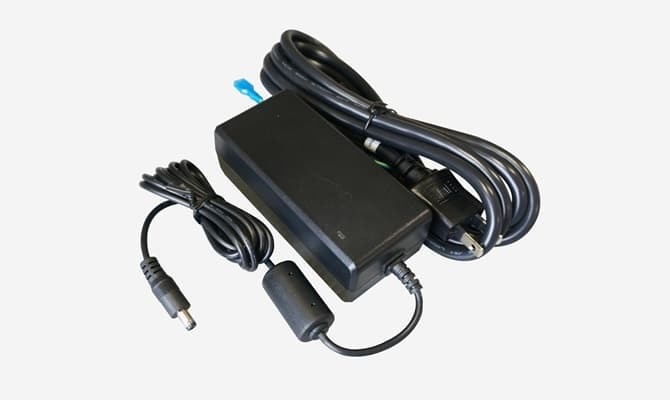

Model	Capacity (kg)	Main equipment Mass(kg)	Stroke (m)	Descent Setting Position(m)	Descent speed (m/s)	Ascent speed (m/s)	Power Supply	Maximum Power Consumption
PB3	1.5～3.0	4.2	1.2	0.3～0.9	Low Speed 0.2～0.3 High Speed 0.3～0.5	0.2～0.3	DC24V	56W
PB4	2.5～4.0	4.3
PB5	3.5～5.0	4.4
PB7	5.0～7.0	4.5

External Input

Plug	Model	Manufacturer
Compatible plug (you need to prepare the plugs)	PRC03-12A10-3AM10.5 (3 cores, plug)	Tajimi Electronics Co., Ltd.
Input connector	PRC03-23A10-3AF (3 cores, receptacle)	Tajimi Electronics Co., Ltd.

External Output

Plug	Model	Manufacturer
Compatible plug (you need to prepare the plugs)	PRC03-12A10-4F10.5 (4 cores, plug)	Tajimi Electronics Co., Ltd.
Output connector	PRC03-23A10-4M (4 cores, receptacle)	Tajimi Electronics Co., Ltd.

Contact FullSharp for a quotation
