ENDO HKC Series Counter Reaction Balancer

Name: ENDO HKC Series Counter Reaction Balancer
Brand: FullSharp

ENDO HKC Series Counter Reaction Balancer is part of the ENDO Counter Reaction Balancer range. ENDO counter reaction balancers suspend the tightening tool and absorb its torque reaction, relieving the operator's wrist: HKC, HKA and HKS series plus accessories.

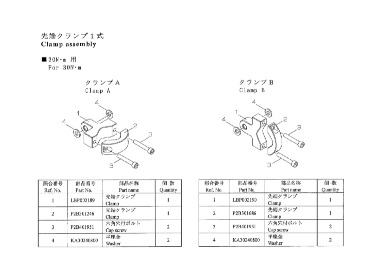

Capacity is 0.5kg - 7.0kg.Carbon telescopic arm and steel clamp can absorb the counter reaction force and built-in balancer supports positioning of the tool.

Product Video

Specifications

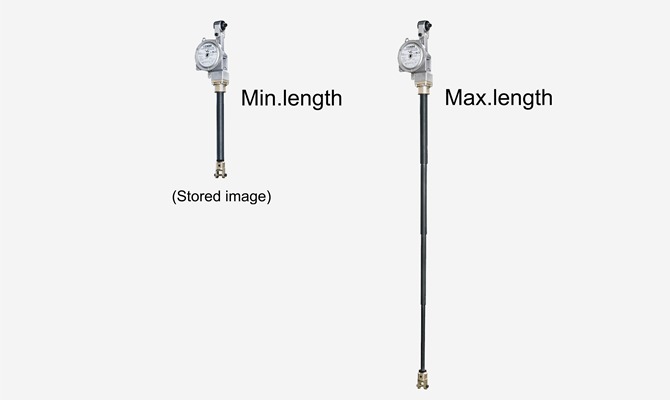

Model	Capacity (kg)	Max tightening torque (N.m)	Stroke (mm)	Max length (mm)	Min length (mm)	No.of Rod	Mass (kg)
HKC30N1800-25	0.5～2.5	30	870	1747	877	3	4.9
HKC30N1800-45	2.5～4.5	30	870	1747	877	3	5.1
HKC30N1800-65	4.5～6.5	30	870	1747	877	3	5.1
HKC60N1800-20	0.5～2.0	60	1000	1761	761	4	5.3
HKC60N1800-40	2.0～4.0	60	1000	1761	761	4	5.5
HKC60N1800-60	4.0～6.0	60	1000	1761	761	4	5.5
HKC60N2500-20	0.5～2.0	60	1120	2470	1350	3	5.7
HKC60N2500-40	2.0～4.0	60	1120	2470	1350	3	6.0
HKC60N2500-60	4.0～6.0	60	1120	2470	1350	3	6.0
HKC120N2300-40	2.0～4.0	120	1220	2261	1041	3	5.1
HKC120N2300-60	4.0～6.0	120	1220	2261	1041	3	5.3
HKC120N2300-80	6.0～8.0	120	1220	2261	1041	3	5.7
HKC200N1800-50	3.0～5.0	200	1000	1775	775	4	6.0
HKC200N1800-70	5.0～7.0	200	1000	1775	775	4	6.0
HKC200N2500-50	3.0～5.0	200	1260	2460	1200	3	6.3
HKC200N2500-70	5.0～7.0	200	1260	2460	1200	3	6.3

Contact FullSharp for a quotation
