ENDO HKA Series Counter Reaction Arm

Name: ENDO HKA Series Counter Reaction Arm
Brand: FullSharp

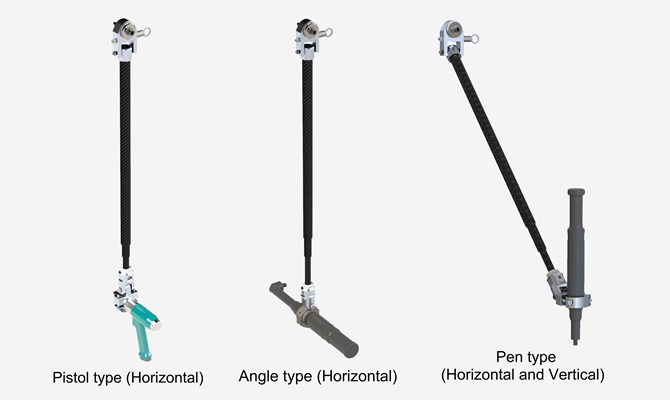

ENDO HKA Series Counter Reaction Arm is part of the ENDO Counter Reaction Balancer range. ENDO counter reaction balancers suspend the tightening tool and absorb its torque reaction, relieving the operator's wrist: HKC, HKA and HKS series plus accessories.

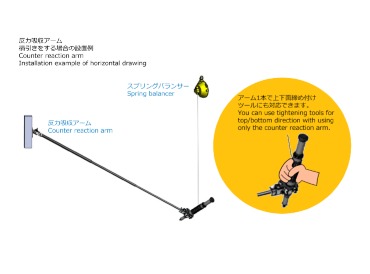

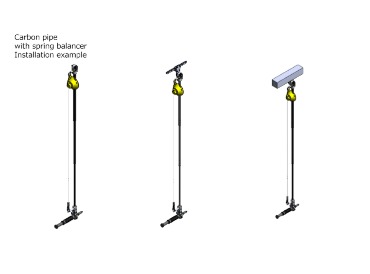

HKA is consisted by only torque arm part. Spring balancer is attached separately, so customer can apply wider capacity

Product Video

Specifications

Model	Max tightening torque (N.m)	Stroke (mm)	Max length (mm)	Min length (mm)	Number of Rod	Mass (kg)
HKA30N1550	30	870	1548	678	3	1.5
HKA60N2050	60	1180	2019	839	3	1.7
HKA120N2100	120	1230	2092	862	3	2.3
HKA200N2050	200	1180	2033	853	3	2.7
HKA300N2500	300	1480	2480	1000	3	3.2

Contact FullSharp for a quotation
