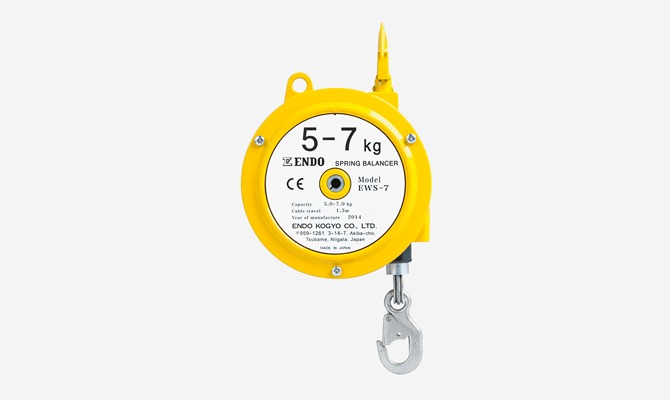

ENDO EWS Series Spring Balancer

ENDO EWS Series Spring Balancer is part of the ENDO Standard Spring Balancer range. ENDO standard spring balancers from 0.3 kg to 200 kg: EK, ERP, EW, EWS, EWF, ETP, ELF and EWA series.

Its capacity is 1.5kg-7kg.
The exposed part of the drum is reduced as much as possible to ensure worker safety.
The fall-arrest device prevents a suspended object from dropping even in the unlikely event that the spring breaks.

Specifications

Model	capacity (kg)	Stroke (m)	Wire rope diameter (mm)	Mass (kg)	How to adjust spring tension	Fall arrest device	Drum lock device
EWS-3	1.5～3.0	1.3	3.0	1.9	Worm	〇	〇
EWS-5	3.0～5.0	1.3	3.0	2.1		〇	〇
EWS-7	5.0～7.0	1.3	3.0	2.1		〇	〇

Optional Accessories

Plain trolley

When attached to a beam, this trolley enables smooth horizontal movement by hand.

Contact FullSharp for a quotation
