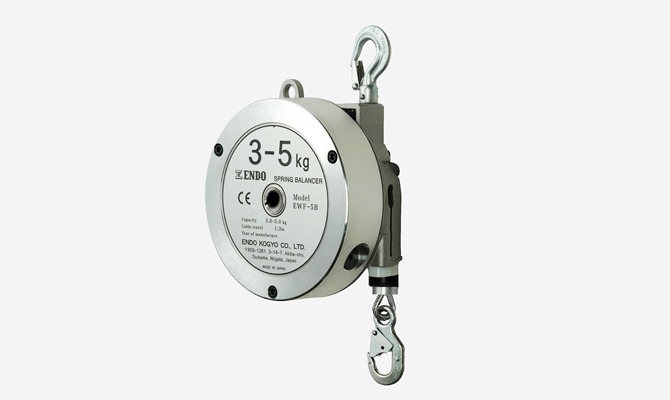

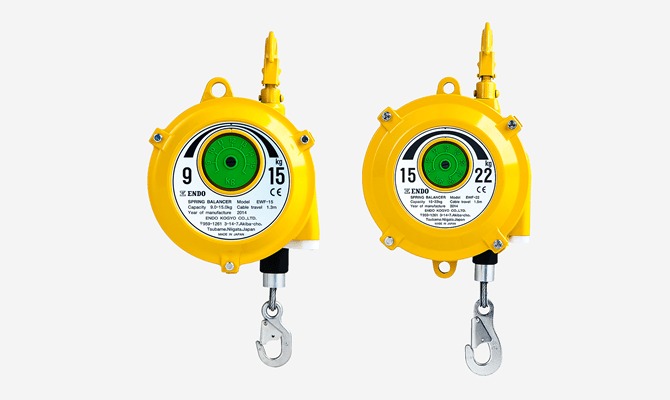

ENDO EWF Series Spring Balancer

ENDO EWF Series Spring Balancer is part of the ENDO Standard Spring Balancer range. ENDO standard spring balancers from 0.3 kg to 200 kg: EK, ERP, EW, EWS, EWF, ETP, ELF and EWA series.

Its capacity is 4.5kg-160kg.
The balancer of this series is equipped with safety features that are same as the EWS series. It also has a gauge for adjustment with respect to the suspended mass. Therefore, tension adjustment can be performed easily.
For suspending electrical devices, jigs, tools, and materials for processed goods.
Centering operations. Balancing device for various kinds of equipment.

Specifications

Model	Capacity (kg)	Stroke (m)	Wire rope diameter (mm)	Mass (kg)	How to adjust spring tension	Fall arrest device	Drum lock device
EWF-9	4.5～9.0	1.3	4.0	3.5	Worm	〇	〇
EWF-15	9.0～15.0	1.3	4.0	3.8		〇	〇
EWF-22	15.0～22.0	1.5	4.76	7.3		〇	〇
EWF-30	22.0～30.0	1.5	4.76	7.7		〇	〇
EWF-40	30.0～40.0	1.5	4.76	9.7		〇	〇
EWF-50	40.0～50.0	1.5	4.76	10.1		〇	〇
EWF-60	50.0～60.0	1.5	4.76	11.1		〇	〇
EWF-70	60.0～70.0	1.5	4.76	11.4		〇	〇
EWF-90	70.0～90.0	2.0	4.76	21.9		〇	〇
EWF-105	85.0～105.0	2.0	4.76	24.0		〇	〇
EWF-120	100.0～120.0	2.0	4.76	27.5		〇	〇
EWF-160	120.0～160.0	1.8	4.76	28.3		〇	〇

Optional Accessories

Plain trolley

When attached to a beam, this trolley enables smooth horizontal movement by hand.

Contact FullSharp for a quotation
