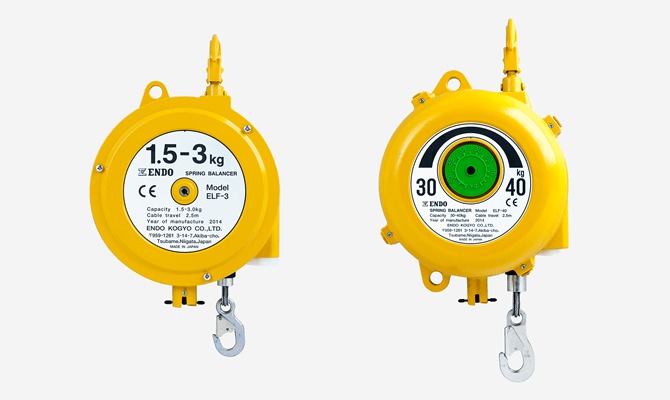

ENDO ELF Series Spring Balancer

ENDO ELF Series Spring Balancer is part of the ENDO Standard Spring Balancer range. ENDO standard spring balancers from 0.3 kg to 200 kg: EK, ERP, EW, EWS, EWF, ETP, ELF and EWA series.

Its capacity is 1.5kg-70kg.
For suspending electrical devices, jigs, and materials for processed goods.
Centering operations.
For cable suspended robots.
Balancing device for various kinds of equipment.

Specifications

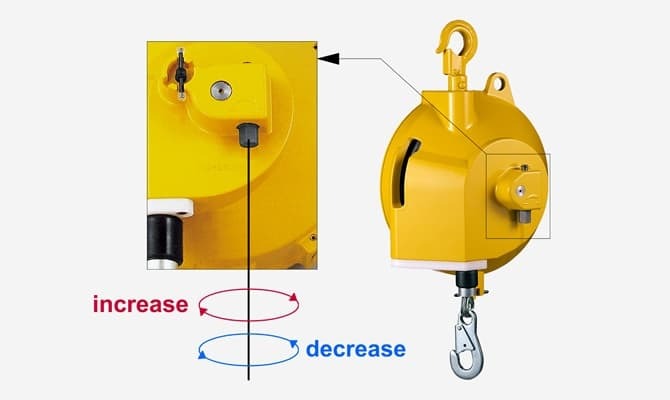

Model	Capacity (kg)	Stroke (m)	Wire rope diameter (mm)	Mass (kg)	How to adjust spring tension	Fall arrest device	Drum lock device
ELF-3	1.5～3.0	2.5	3.0	4.6	Worm	〇	〇
ELF-5	3.0～5.0	2.5	3.0	4.8		〇	〇
ELF-9	5.0～9.0	2.5	3.0	5.4		〇	〇
ELF-15	9.0～15.0	2.5	4.76	10.0		〇	〇
ELF-22	15.0～22.0	2.5	4.76	10.2		〇	〇
ELF-30	22.0～30.0	2.5	4.76	11.0		〇	〇
ELF-40	30.0～40.0	2.5	4.76	14.0		〇	〇
ELF-50	40.0～50.0	2.5	4.76	14.5		〇	〇
ELF-60	50.0～60.0	2.5	4.76	17.1		〇	〇
ELF-70	60.0～70.0	2.5	4.76	18.0		〇	〇

Optional Accessories

Plain trolley

When attached to a beam, this trolley enables smooth horizontal movement by hand.

Contact FullSharp for a quotation
