Mobile Pneumatic Jib Crane for Carton Boxes

Warehouses and factories often have several loading points for cardboard boxes, but each one is only used a few hours a day. Installing fixed equipment at every spot is wasteful, while having workers carry boxes by hand is slow and prone to tearing boxes when stacked high.

FullSharp chose a pneumatic jib crane mounted on a mobile base, with a vacuum tool for carton boxes as the working end. The arm rotates a full 360 degrees to pick up and place loads around the operator's position, and once the job is done, the whole unit can be wheeled to another area with no extra installation needed.

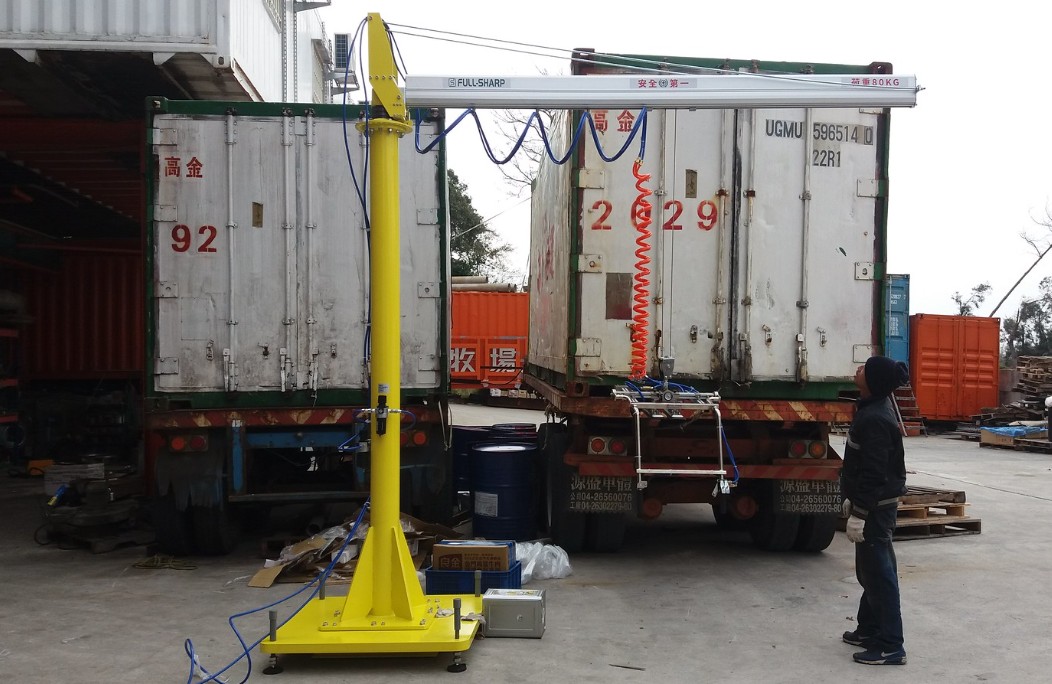

Pneumatic Jib Crane on Mobile Base with Carton Box Vacuum Tool

Pneumatic jib crane on a mobile base with a vacuum tool lifting carton boxes in the warehouse area.

Equipment Installed

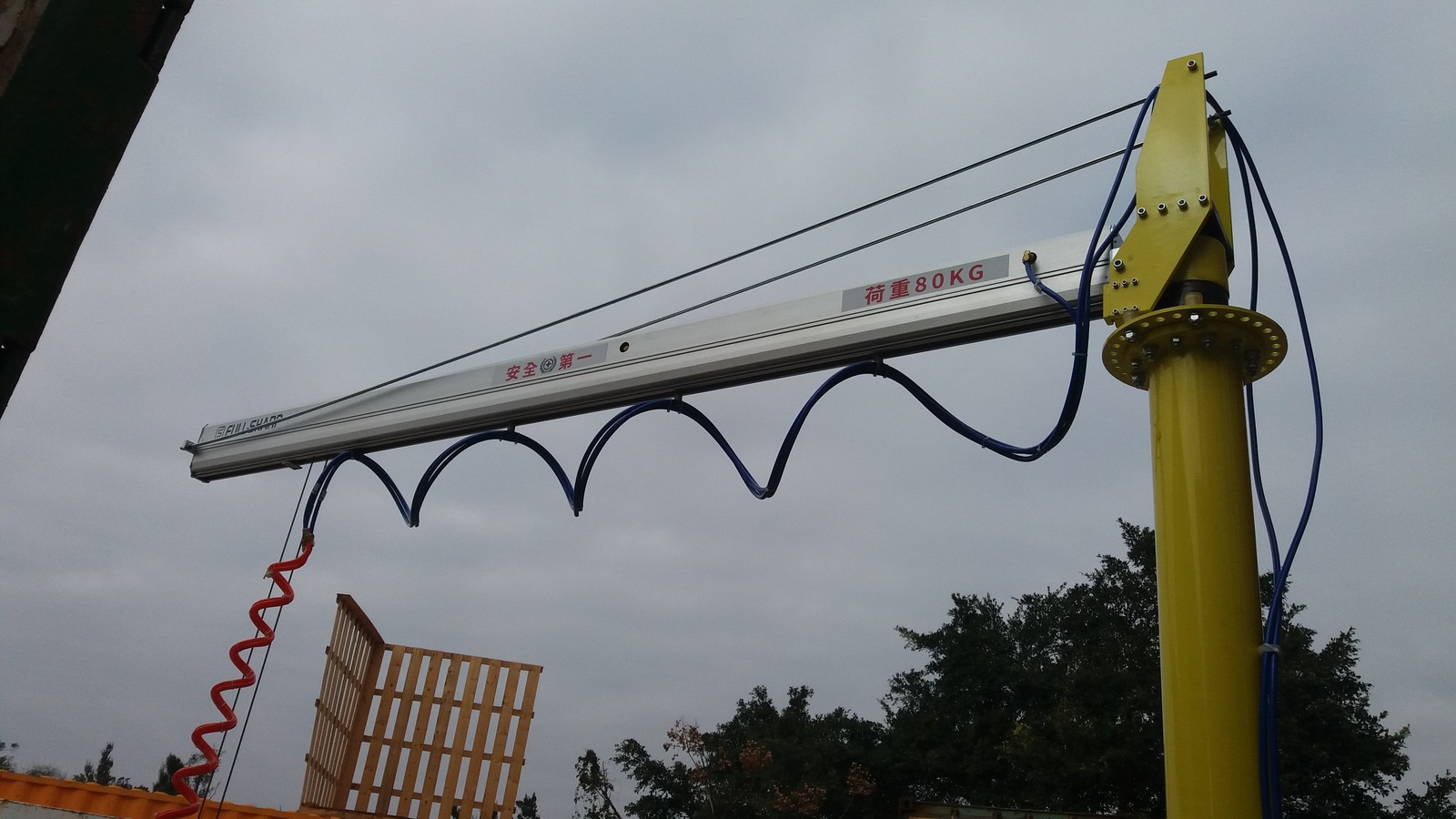

Pneumatic swing arm: raised and lowered by air, rotating around the column to cover the work area around the operator.

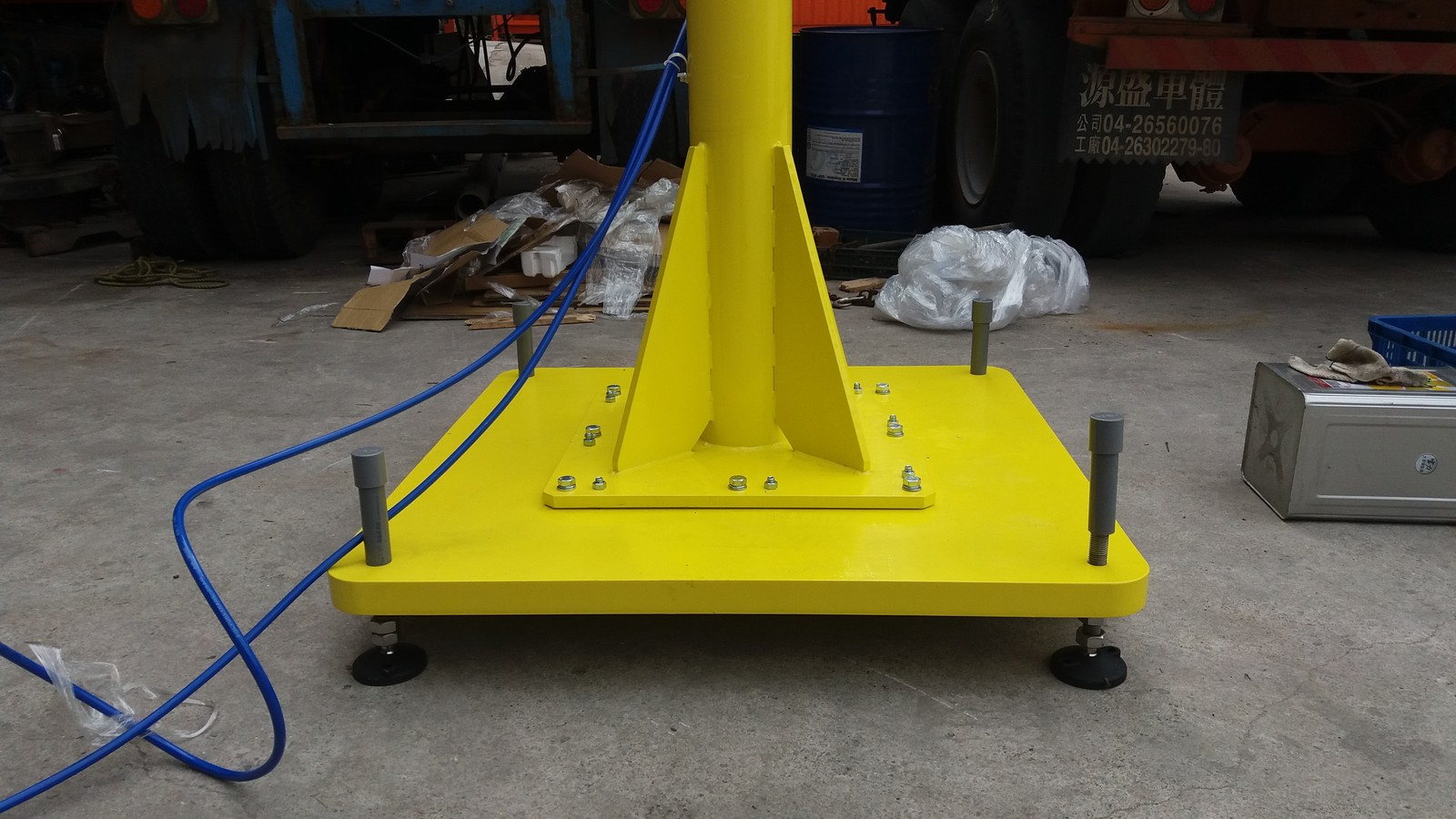

Mobile base with wheels: pushed by hand to a new position, then locked with foot brakes - no drilling into the floor, no foundation needed.

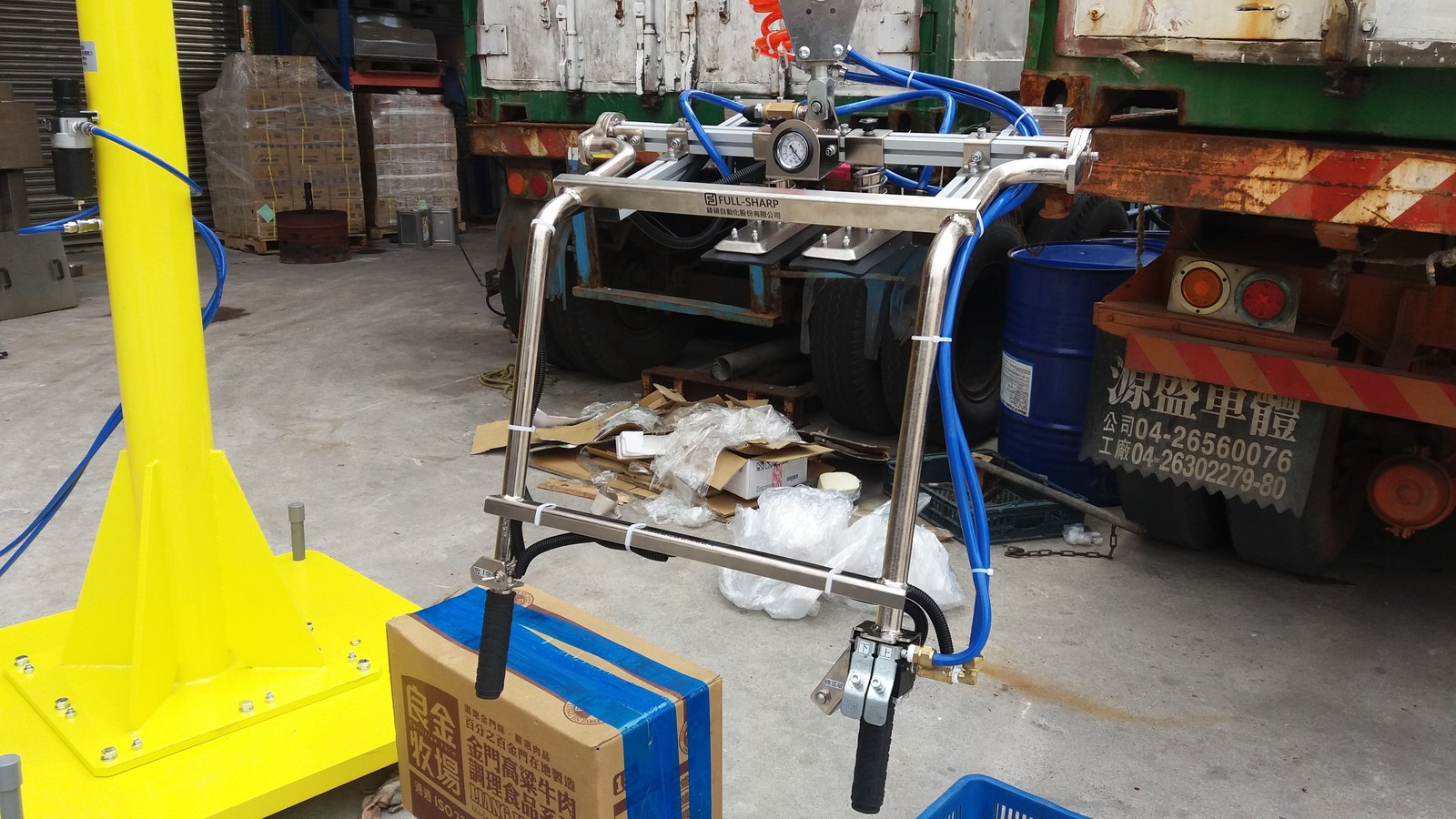

Carton box vacuum tool: a suction frame shaped to the carton surface, gripping fast and releasing cleanly when stacking.
Vacuum pump and handle: creates stable suction, with the grip/release controls built right into the handle.

Key Specifications

Rotation angle360 degrees

Benefits for Your Facility

Shared across multiple spots

One unit serves several loading areas instead of investing in fixed equipment for every location.

Fast to deploy

No drilling and no columns to erect, so it can be put to work the same day.

Protects the boxes

Suction is evenly spread across the box surface, so goods aren't crushed or lids don't pop open.

Actual Installation Photos

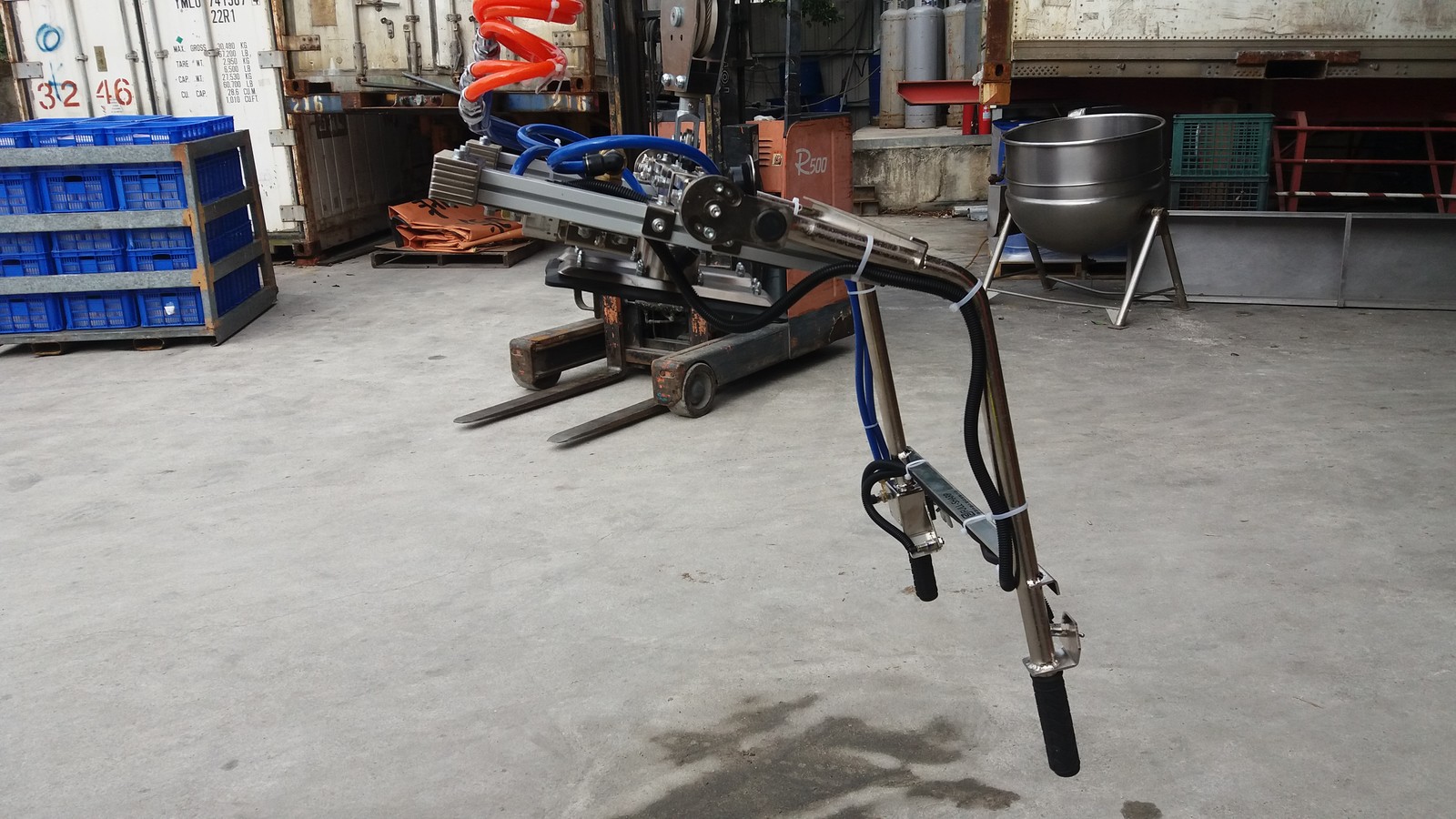

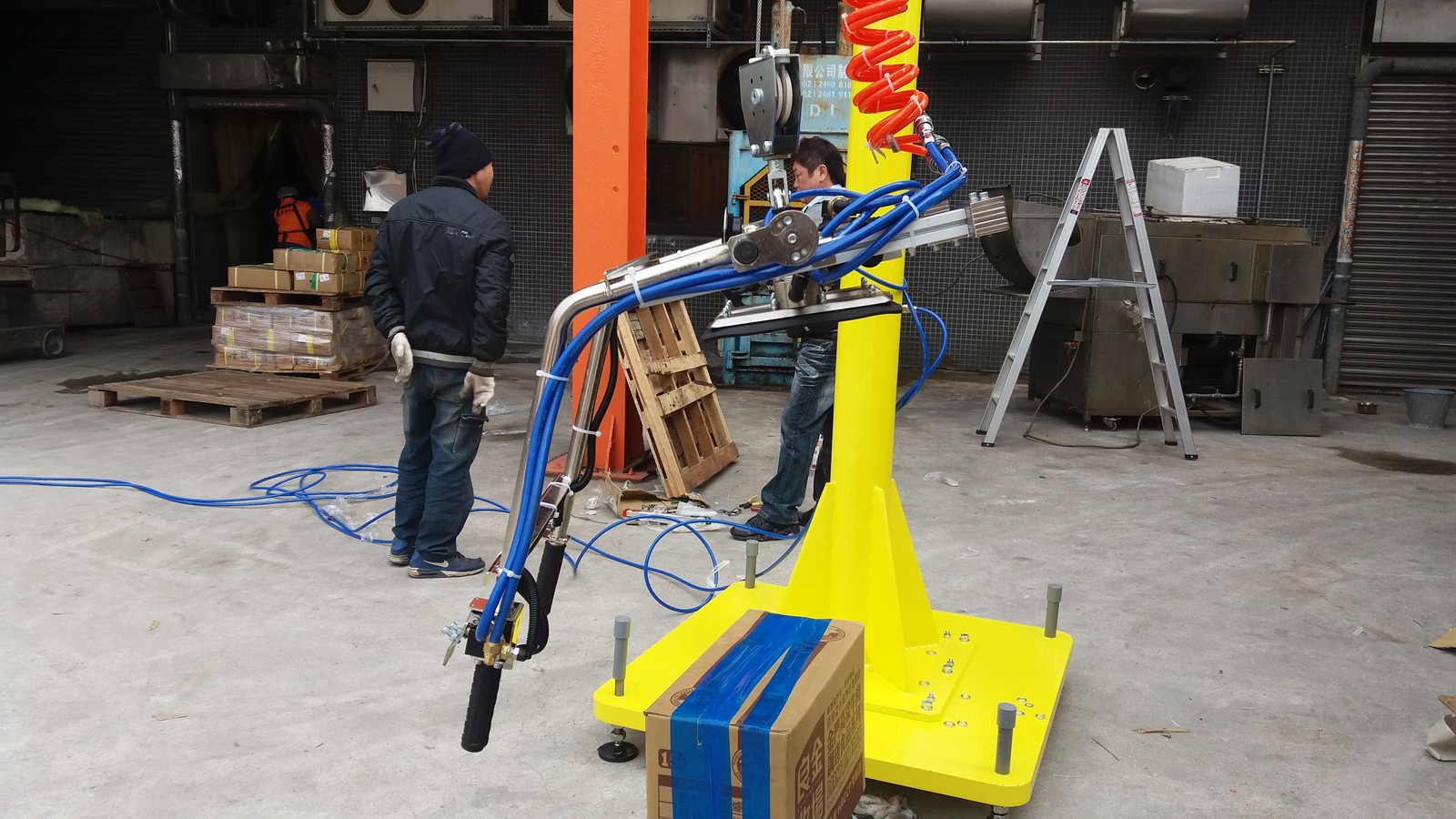

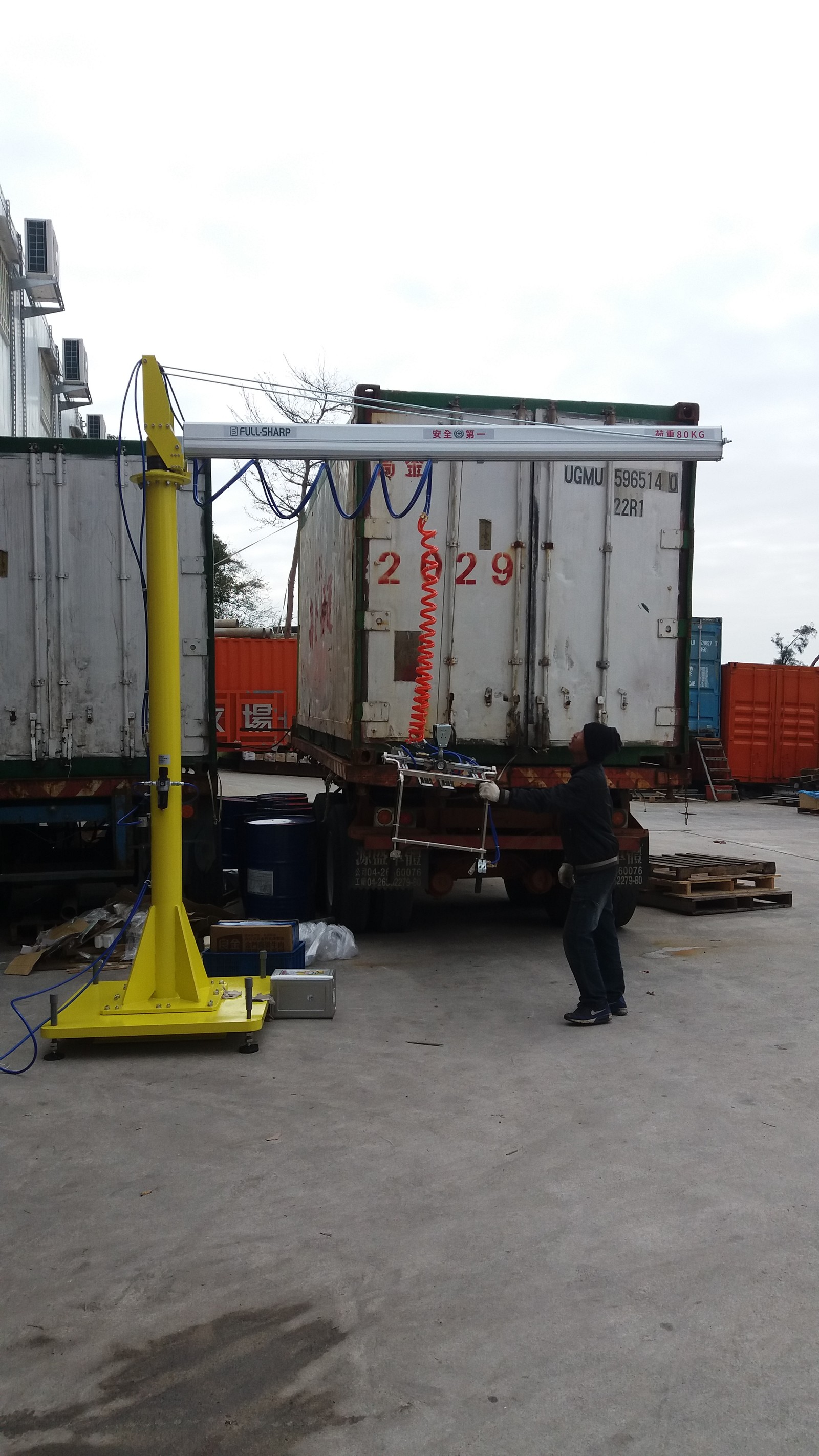

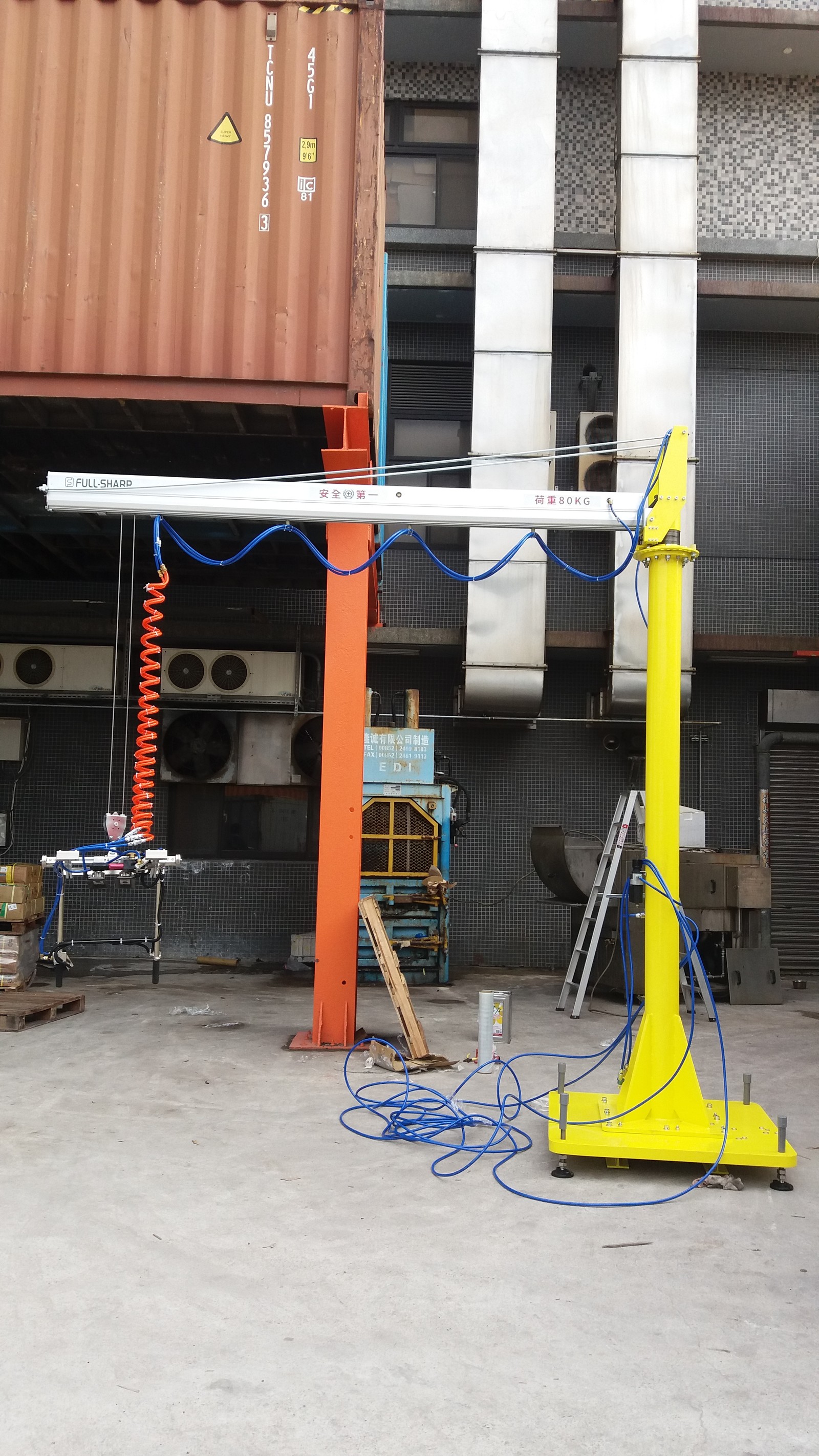

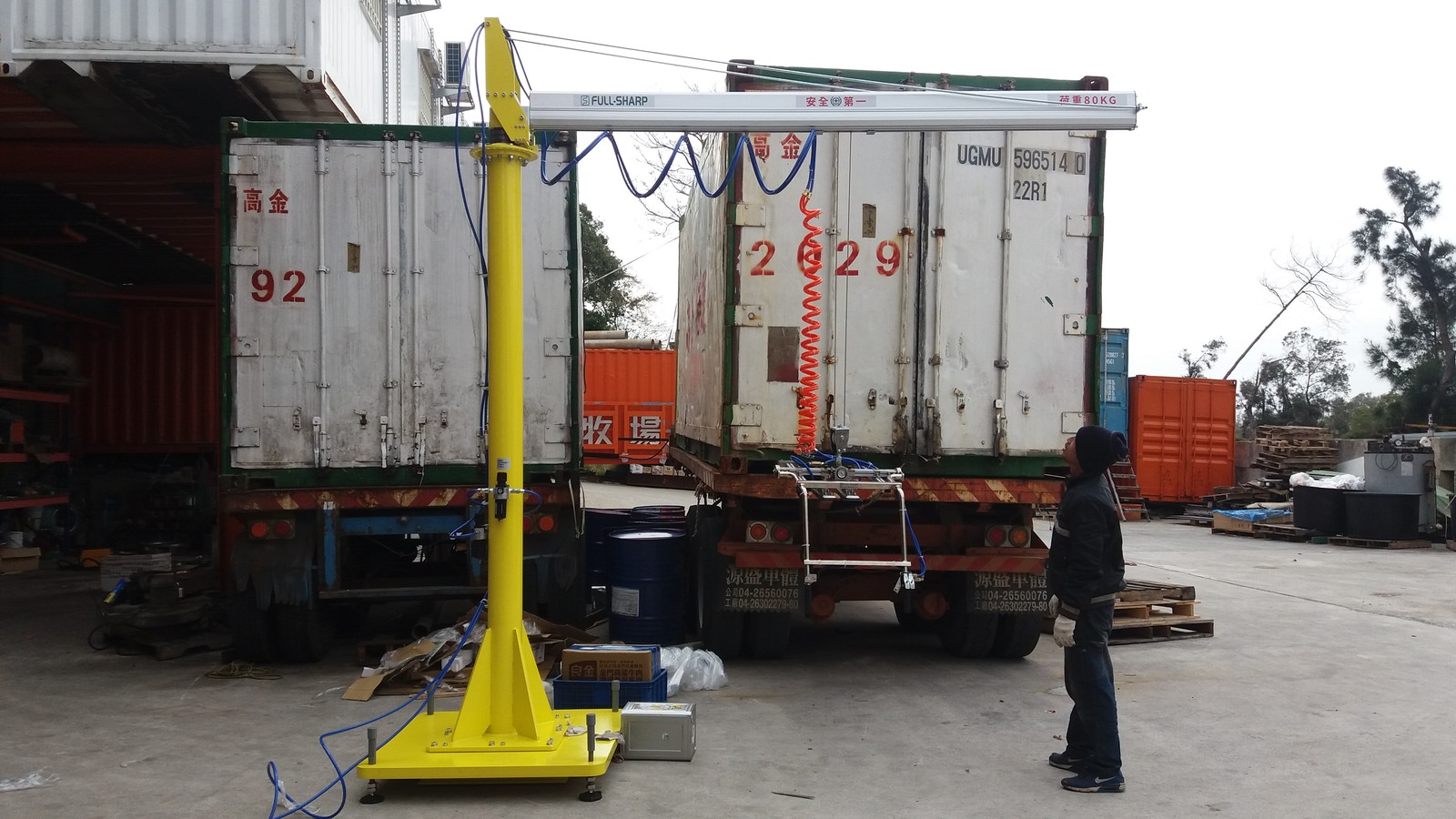

Pneumatic Jib Crane on Mobile Base with Carton Box Vacuum Tool - ảnh 1

Pneumatic Jib Crane on Mobile Base with Carton Box Vacuum Tool - ảnh 2

Pneumatic Jib Crane on Mobile Base with Carton Box Vacuum Tool - ảnh 3

Pneumatic Jib Crane on Mobile Base with Carton Box Vacuum Tool - ảnh 4

Pneumatic Jib Crane on Mobile Base with Carton Box Vacuum Tool - ảnh 5

Pneumatic Jib Crane on Mobile Base with Carton Box Vacuum Tool - ảnh 6

Pneumatic Jib Crane on Mobile Base with Carton Box Vacuum Tool - ảnh 7

Pneumatic Jib Crane on Mobile Base with Carton Box Vacuum Tool - ảnh 8

Click a photo to enlarge. Album of 8 photos taken on site.

Suitable Applications

Distribution warehouses palletizing boxes
Food and beverage plants loading finished goods
Container and truck loading areas
Printing and carton packaging workshops

Installation Consulting for Your Facility

FullSharp reviews the box dimensions, stacking height and floor flatness in the areas where the unit will be used. Our engineers select the arm's rotation radius and design the vacuum tool to match the box surface, then hand it over and run trial operation together with the workers at each station.
