Wolf 8.5

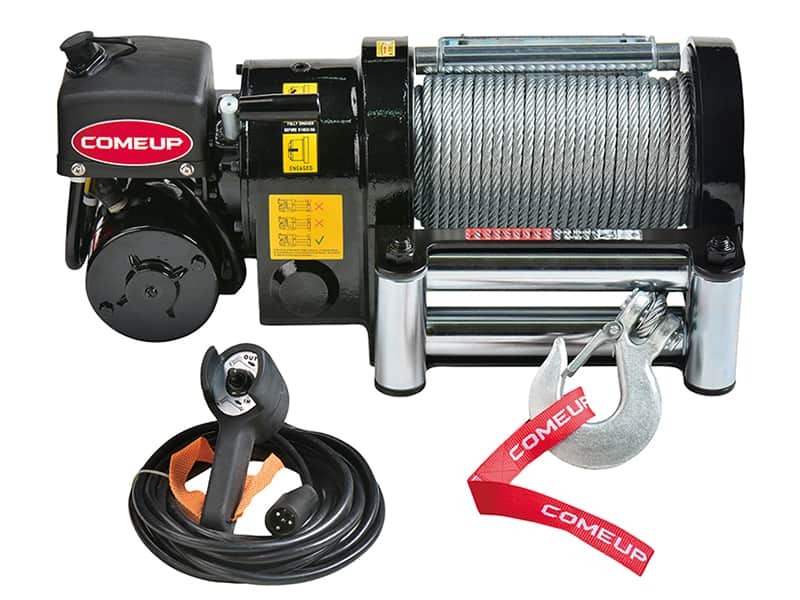

COMEUP Wolf 8.5 – 8,500 lb Electric Worm Gear Winch. Rhino and Wolf DC electric recovery winches for recovery vehicles, trucks and special-purpose vehicles.

Robust, extreme heavy duty worm drive
Heavy duty series wound motor for high torque output and fast line speed under extreme operating condition.
Detachable weather-resistant control box mounted elsewhere on the vehicle.
2 stages spur gears plus 1 exceptionally strong worm gear for reversing protection.
Irreversible worm gear brake as well as an auxiliary mechanism ratchet wheel brake performs instant braking and free slip.
Mechanism lever clutch for rapid wire rope payout.
Heavy duty sealed contactor gives better water resistance and lower amp. draw.
Higher D/d ratio (Drum dia./rope dia.) allows light commercial applications of car transporter, wrecker, tractor, lorry and fire/rescue engine.
Meets SAE J706, CE Machinery Directive 2006/42/EC and REMSA Standards.

Technical Specifications

Part number	PN 780254 (12V) / PN 780988 (24V)
Rated line pull	3,856 kg / 8,500 lb
Motor	3,430 w / 4.6 hp 12V series wound 1,940 w / 2.6 hp 24V series wound
Gear train	2-stage spur gear PLUS worm gear 228.9:1
Clutch (freespooling)	Mechanism lever
Brake	Irreversible worm gear brake PLUS mechanism ratchets wheel brake
Drum size	82 x 229 mm (3.2” x 9")
Control	Waterproof remote control w/5 m (17') cord
Rope type	Galvanized aircraft A7 x 19
Rope size	8.0 mm x 45 m (5/16" x 150')

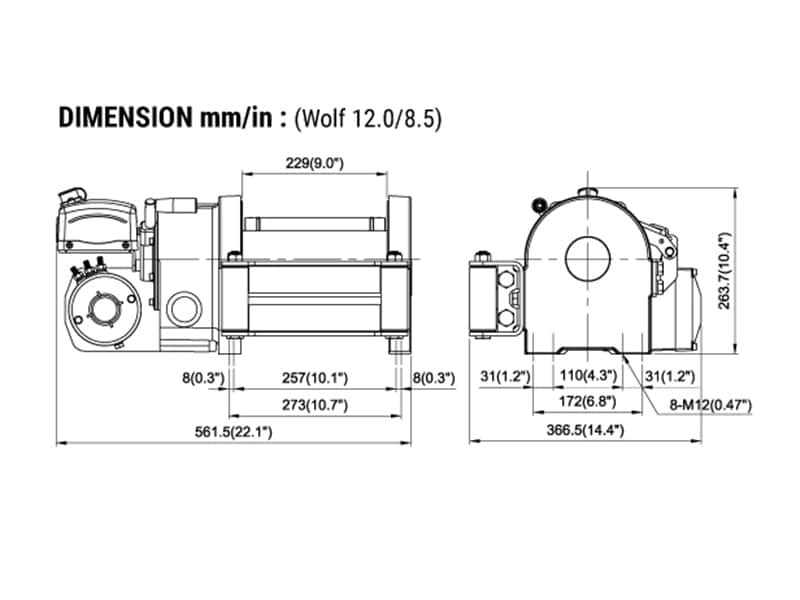

Mounting bolt pattern	273 x 110 mm (10.7” x 4.3”) 257 x 172 mm (10.1" x 6.8")

Performance Data

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull, kg / lb	Line Speed, mpm / fpm		Amp. Draw, A
Line Pull, kg / lb	12V	24V	12V	24V
No load	7.0 / 23.0	9.5 / 31.2	60	50
907 / 2,000	3.0 / 9.8	5.0 / 16.4	160	130
1,814 / 4,000	2.2 / 7.2	3.0 / 9.8	220	190
2,722 / 6,000	1.5 / 4.9	2.3 / 7.5	300	250
3,630 / 8,000	1.1 / 3.6	1.3 / 4.3	390	320
3,856 / 8,500	1.0 / 3.3	1.2 / 3.9	430	360

Line Pull and Rope Capacity:

Layer of Rope	Pull by layer, kg / lb	Total Rope on the Drum, m / ft
1^st	3,856 / 8,500	8.0 / 26.4
2^nd	3,279 / 7,229	17.5 / 57.4
3^rd	2,853 / 6,289	28.4 / 93.1
4^rd	2,524 / 5,566	40.7 / 133.4
5^th	2,264 / 4,991	45.0 / 150.0

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Each new winch is guaranteed against defects in workmanship and material for a period of twelve months from date of purchase. Wire ropes are not included under warranty.

Accessories

Standard Accessories	Option Accessories
Roller fairlead Remote control w/5 m (17’) cord Detachable control box Cable tensioner Wire rope w/hook	Snatch block

Packaging

Winch weight: 40 kg / 88.2 lb
Gross weight : 63.4 kg / 139.7 lb
Box dimension, (L x D x H) : 610 x 427 x 350 mm (24" x 16.8" x 13.8")

Downloads

Document	Date	Format	Download
Wolf 8.5 Operation Manual	2024-07-16	PDF, 0.63 MB	Download
