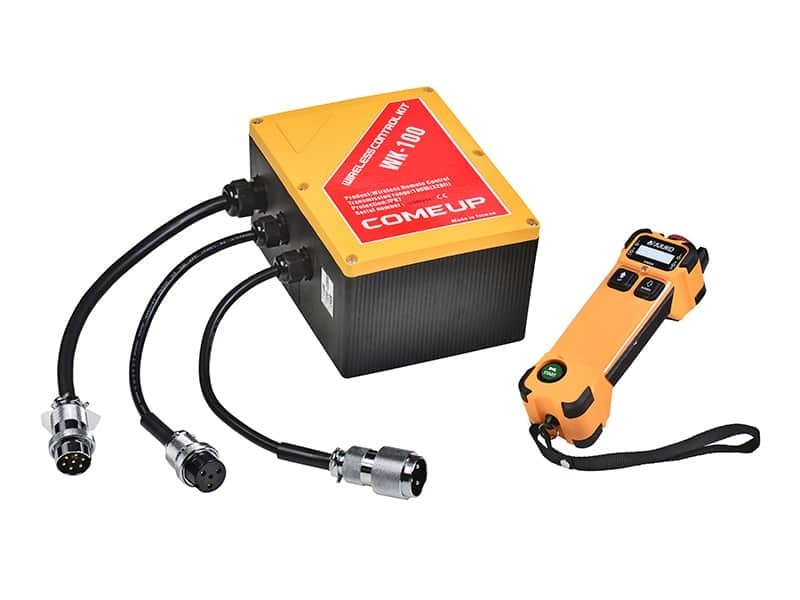

Wireless Control Kit WK-100H

The WK-100H wireless control kit is made for COMEUP CSH hoists (130, 250): receiver, industrial transmitter and fitting plate, with a 100 m operating range.

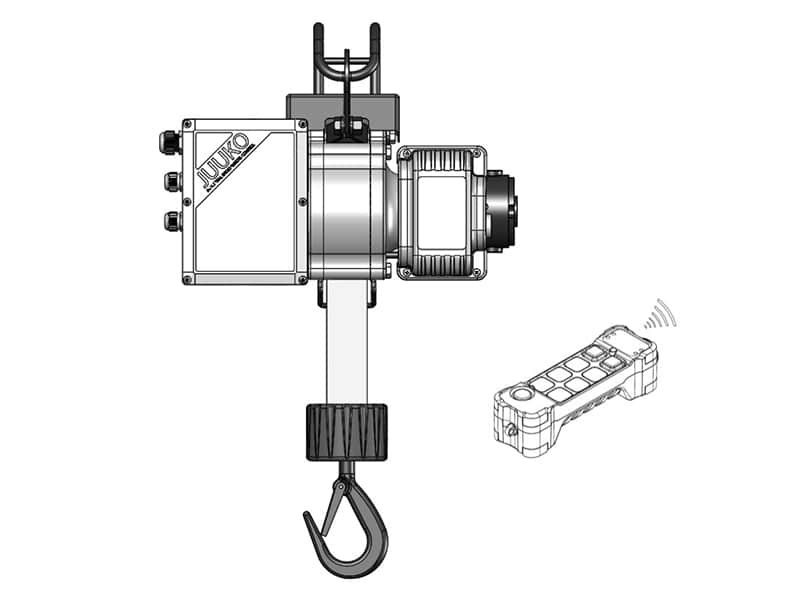

Clever designed fitting plate for easy installation on COMEUP CSH (130,250) winches.
Come with complete connectors for quick plug and play.
Cut power emergency stop design (built in three relays) meets highest safety standard.
High performance Industrial radio control module with operating range up to 100M.
Industrial standard transmitter with mushroom type EMO button and LED operating indicators.
High IP rating: Transmitter IP65; Receiver: IP67

Technical Specifications

WK-100H
PN 883874 / AC110V
PN 883875 / AC220V
PN 883881 / AC240V

Control module			Indirect control +Wireless Control
Frequency band			433MHz
Typical operating range			100 M (328 ft)
Applicable current			AC 110V 15A / 220V 7.5A / 240V 7.5A
Function			Go up / Go down / Emergency stop
Control Unit	Power Input	Current range	110V OR 220V OR 240V
	Power Input	Power lead for main power source	2.0 mmx 3C/3P quick connector
	Power Output	Power lead for winch	2.0 mmx 3C/3P quick connector
	Power Output	Control lead	2.0 mmx 6C/6P quick connector
	Contactors	Number	3 sets
	Receiver	Power supply	AC 110V / 220V / 240V
	Receiver	Function	Go up/ Go down / built-in buzzer
	Protection degree		IP67
Transmitter	Power supply		DC3V
	Button		Emergency stop switch, Power on switch
	Power consumption		16mA
	Battery		LR6(AA)1.5V*2
	Protection degree		IP65
Environment	Operating temperature		25°C ~ + 55°C
	Storage temperature		-40°C ~ + 65°C
	Humidity		90%RH
Complied with RED directive			2014/53/EU

Accessories

Standard Accessories:

Control Box
Base plate
Wireless remote control

Packaging

Net weight: 3.7 kg / 8.2 lb
Gross weight: 4.5 kg / 9.9 lb
Box dimension: 309 x 207 x 305 mm ( 12.5” x 8.2.” x 12.0 ” )

Downloads

Document	Date	Format	Download
WK-100H INSTALLATION INSTRUCTION	2021-06-30	PDF, 257 KB	Download
