FullSharp · since 1991

Walrus 30.0

COMEUP Walrus 30.0 belongs to the COMEUP Defense & Security Winch range. Walrus series heavy-duty winches for military, security and special-purpose vehicles.

  • 24V DC severe duty winch rated at 30,000 lb pulling meets or exceeds your expectations
  • Waterproof and dustproof construction:
    - Potted contactor and motor provide complete protection from water penetration and allow dependable operation in up to 1.8 meter of water.
    - Rubber seals at motor and gear housing joints for independent water protection.
    - Double lip and spring seal at drum support racks
    - Industrial duty remote control with twist-on connector to provide total protection from water.
  • Water-proof remote control with thermometric LED indicator alerts when receiving a warning signal from the motor over-heated.
  • Tough aluminum die cast housings withstand strength of 2 times winch line pull at least.
  • U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slippage.
  • Corrosion resistance 720hr.
  • Meet international standards of CE Machinery Directive 2006/42/EC, CE Electromagnetic Compatibility Directive 2014/30/EU, and SAE J706 Surface Vehicle standard 2003-08 rev.

Technical Specifications

Rated line pull13,608 kg ( 30,000 lb ) single line
Line speed ( 1st layer)5.2 mpm / 17.1 fpm 60 A at 24V no load
1.6 mpm / 5.2 fpm 280 A at 24V full load
Motor6,000 w / 8.0 hp 24V series wound
Gear train: 4-stage planetary 825.5:1
Clutch (freespooling)Rotating ring gear
Brake (outside the drum)Automatic, full load CBS (Cone Brake Structure)
Winch constructionAluminum die cast housings with steel drum
Drum size118 mm x 254L mm (4.6” x 10”L)
ControlWaterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope type6 × 29 - IWRC. (Breaking strength 124 kN)
Rope size14.3 mm x 30 m (9/16” x 98.4’)
Mounting bolt pattern305 mm x 168 mm (12” x 6.6”)
305 mm x 229 mm (12" x 9.0")
MountingFoot forward mounting only
* Remark: Only foot forward mounting can meet SAE J706

Performance Data

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb		Line Speed,
mpm / fpm		Amp. Draw, A
24V
No load5.2 / 17.160
3,629 / 8,0002.4 / 7.9120
7,257 / 16,0001.8 / 5.9180
10,886 / 24,0001.7 / 5.6220
13,608 / 30,0001.6 / 5.2280

Line Pull and Rope Capacity:

Layer of RopePull by layer, kg / lbTotal Rope on the Drum, m / ft
1st13,608 / 30,0006.8 / 22.3
2nd11,143 / 24,56615.1 / 49.5
3rd9,434 / 20,79824.9 / 81.7
4th8,180 / 18,03330.0 / 98.4

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the first layer of rope on the drum.
  • The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

  • Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

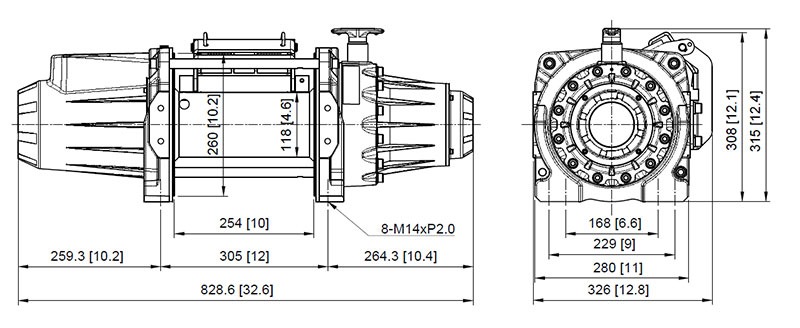

Dimensions

Walrus 30.0

Accessories

Standard Accessories:

  • Roller fairlead
  • Remote control w/5 m (17’) cord
  • Detachable control box
  • Wire rope w/clevis hook
  • Cable tensioner
  • 1.8 m (6’) 2 gauge battery lead
  • Handsaver strap
