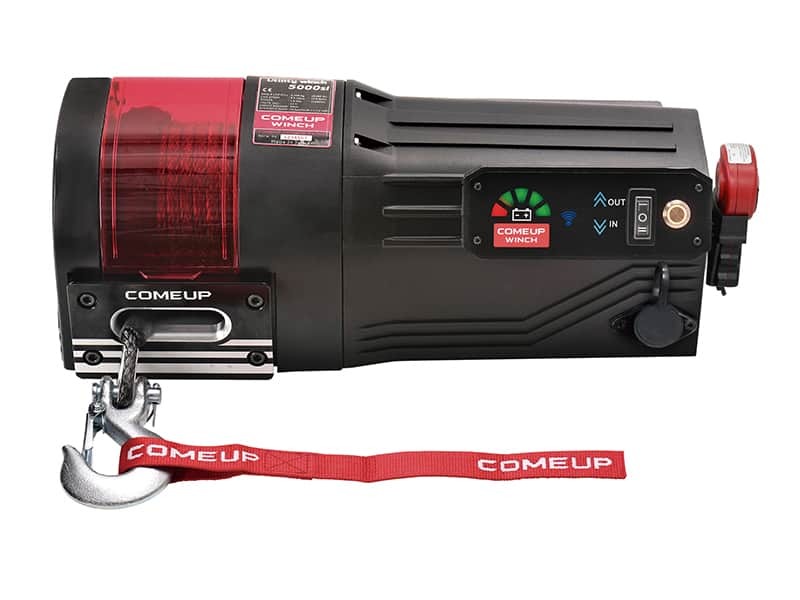

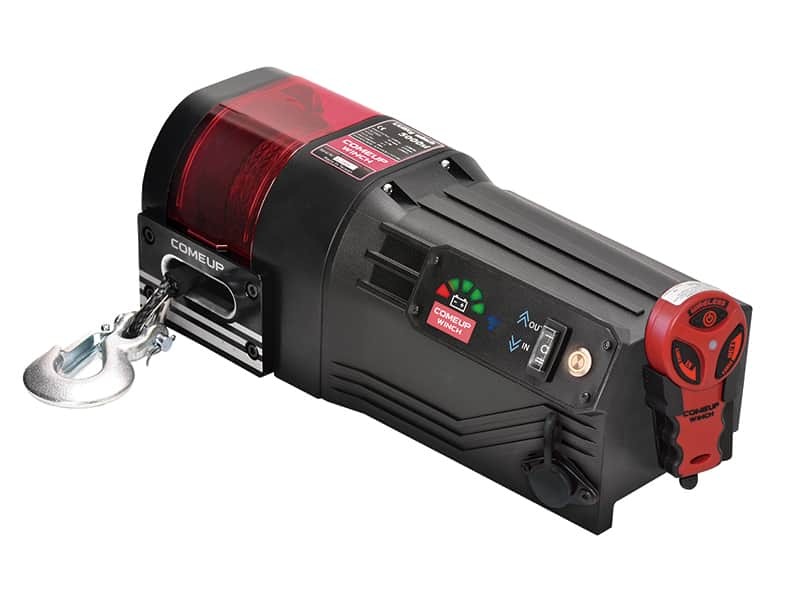

Utility Winch 5000si

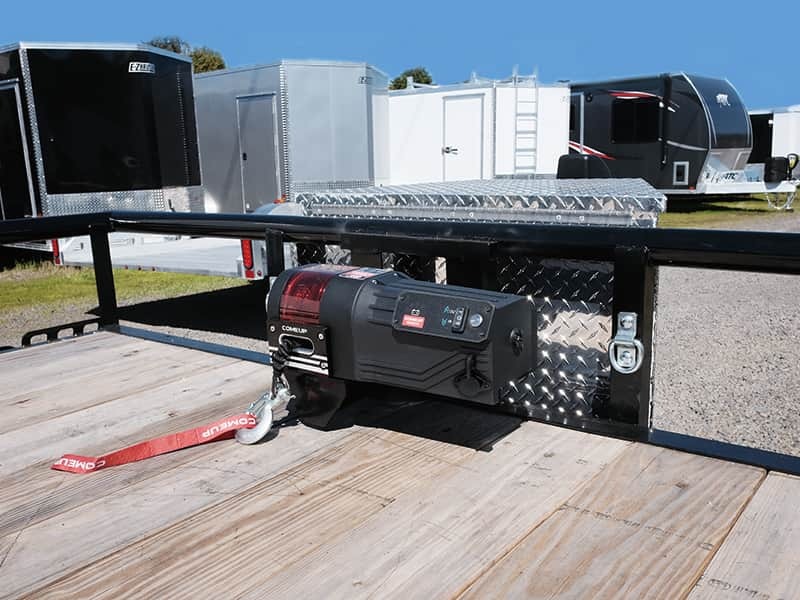

COMEUP Utility Winch 5000si – 5,000 lb Utility Duty Winch. Utility winches for trailers, tow vehicles, special-purpose vehicles and light pulling jobs.

Compact and light weight allows a wide range of application on trailers and boats.
High torque permanent magnet motor enables high line pull at lower amp and slip free dynamic brake.
3-stage planetary gearbox delivers the most reliable and durable performance of winch under the most rugged conditions.
Sliding pin and ring gear clutch for rapid rope payout.
Automatic load-holding mechanical brake plus motor dynamic brake ensure holding the load without slippage.
With circuit breakers to prevent motor overheating.
Both built-in digital signal two way wireless remote control and on board rocker switch (IN/OUT) control.

Intelligence Dashboard (IDB) functions:

Cutout switch prevents the vehicle battery from draining when not in use.
On board rocker switch (IN/OUT) can be operated directly.
With LED fan-shaped battery life indicator.

Technical Specifications

Part number	PN 645010
Rated line pull	2,268 kg ( 5,000 lb ) single line
Motor	1,300 w / 1.7 hp, 12V permanent magnet
Gear train / ratio	3-stage planetary 170:1
Clutch (freespooling)	Sliding ramping
Brake	Mechanical spring applied brake plus permanent magnet motor dynamic brakes
Drum size	54 mm x 83L mm (2.1” x 3.3”L)
Control	Wireless remote control and on board rocker switch control
Synthetic rope size	6.3 mm x 15.2 m (1/4” x 50’ )

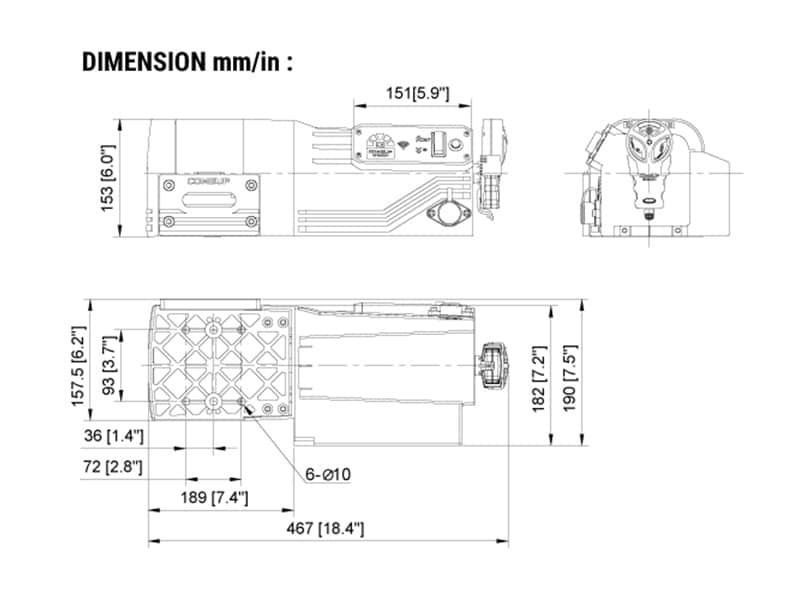

Mounting bolt pattern	72 mm x 93 mm (2.8” x 3.7”) Standard Compliance: - CE Machinery Directive 2006/42/EC - CE EMC Directive 2014/30/EU

Performance Data

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull, kg / lb	Line Speed, mpm / fpm	Amp. Draw, A
Line Pull, kg / lb	Line Speed, mpm / fpm	12V
No load	5.5 / 18.0	25
454 / 1,000	5 / 16.4	75
907 / 2,000	3.6 / 11.8	140
1,361 / 3,000	2.5 / 8.2	210
1,814 / 4,000	1.4 / 4.6	310
2,268 / 5,000	1.0 / 3.3	380

Line Pull and Rope Capacity:

Layer of Rope	Pull by layer, kg / lb	Total Rope on the Drum, m / ft
1^st	2,268 / 5,000	2.4 / 7.9
2^nd	1,876 / 4,136	5.3 / 17.4
3^rd	1,600 / 3,527	8.7 / 28.6
4^th	1,394 / 3,073	12.6 / 41.4
5^th	1,235 / 2,722	15.2 / 50

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 10 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty

Accessories

Standard Accessories:

Synthetic rope w/clevis hook
Wireless transmitter kit
Hawser fairlead
Mounting hardware

Packaging

Winch weight (including rope) : 12.7 kg / 28 lb
Gross weight : 16.7 kg / 36.8 lb
Box dimension, (L x D x H) : 462 x 271 x 185 mm (18.2" x 10.7" x 7.3")
