COMEUP Winch Accessories

COMEUP Winch Accessories

Tackle Block CBT

CBT tackle blocks for COMEUP electric winches, with single or double sheaves and rated loads of 1,000–3,000 kg. Used for double-line operation to raise the winch capacity.

Rated Load : 1,000~3,000 kg

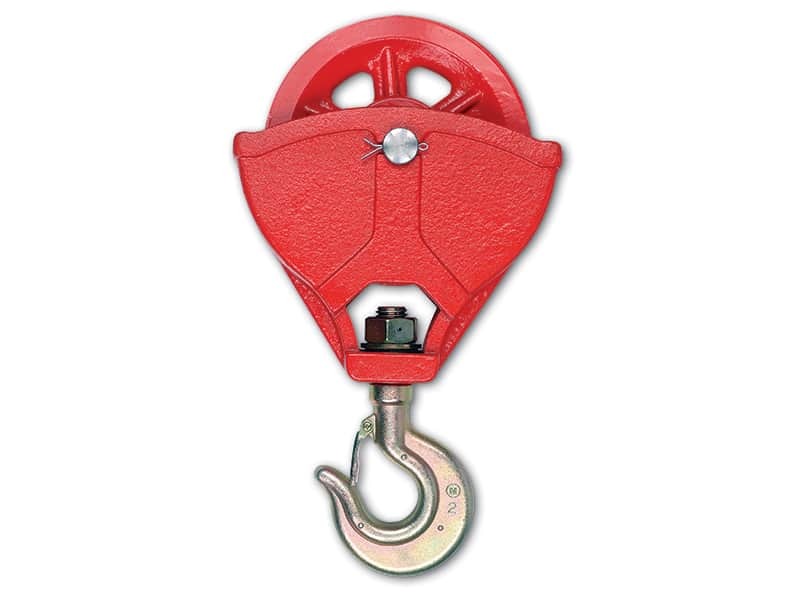

Single sheave tackle block

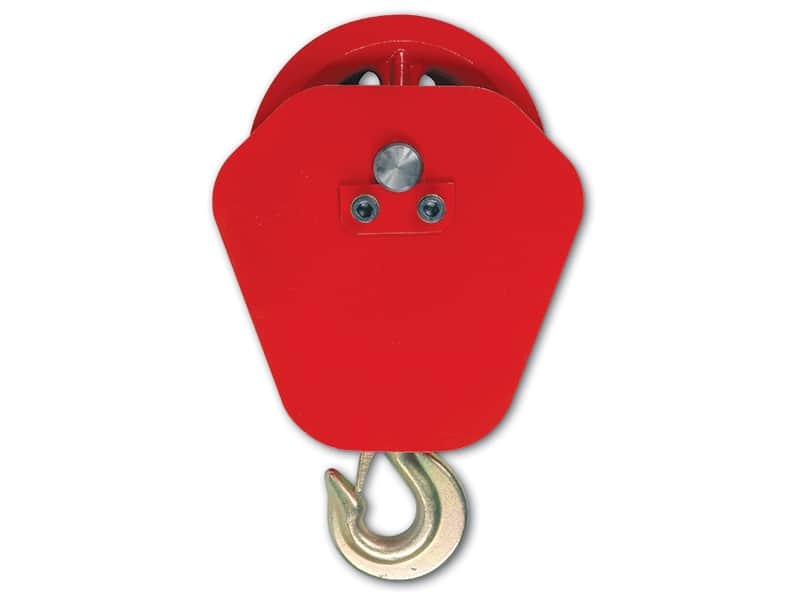

Double sheaves tackle block

Technical Specifications

Model number		CBT-1000	CBT-2000	CBT-3000	CBT-1000D	CBT-2000D	CBT-3000D
Sheave		Single			Double
Rated load		1,000	2,000	3,000	1,000	2,000	3,000

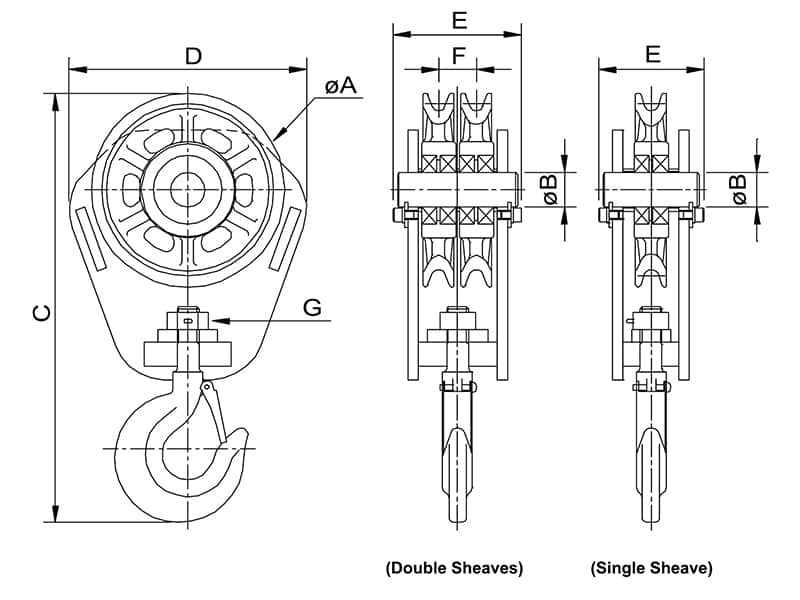

Dimension (mm)	øA	190	225	265	190	225	265
	øB	25	40	40	30	40	40
	C	392	507	540	377	507	540
	D	226	276	320	228	276	320
	E	75	122	122	128	149	150
	F	-	-	-	35	48	48
	G	M20	M24	M30	M20	M24	M30
Max. wire rope dia.		ø12	ø16	ø16	ø12	ø16	ø16

Note:

The winch is not intended to be used in any manner for the movement or lifting of personnel.
60 Hz motor is available upon request.
Use a tackle block for double line operation, to increase the rated load of the winch by approximately 85%.
