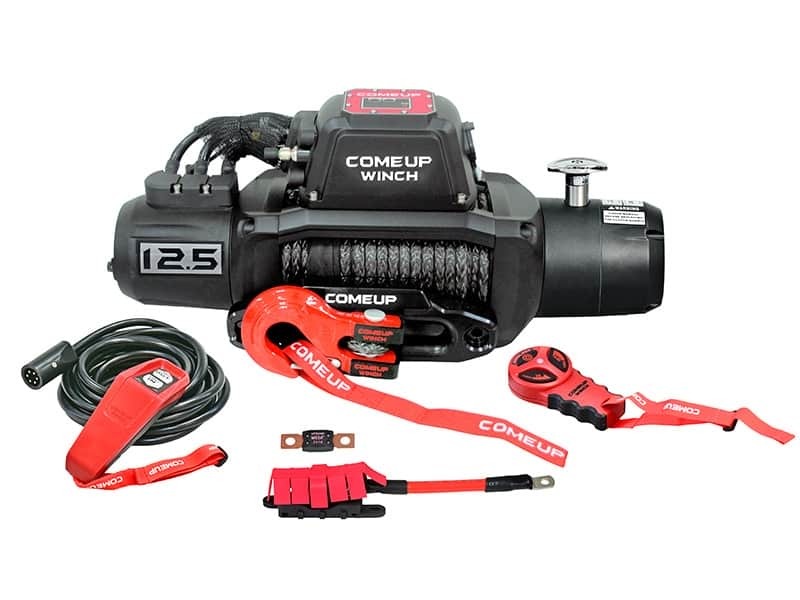

SOLO 12.5rs Trail Edition
COMEUP SOLO 12.5rs Trail Edition – 5.6 Tonnes Self-Recovery Winch. COMEUP SOLO, Seal and Slim waterproof automotive winches for Jeeps, pickups and SUVs off road.
Introducing the COMEUP SOLO 12.5rs Trail Edition, the ultimate winch designed for overland expedition and packed with Trail Edition features includes the innovative BossHook M and a specialized winch fuse kit for superior functionality and protection. Built for reliability and durability, the Trail Edition empowers you to conquer mud, snow, and rocky terrain with unstoppable confidence.- 12V DC severe duty winch rated at 12,500 lb pulling meets and exceeds your expectations.
- Heavy duty series wound motor equipped with thermal protection switch alters.
- Trendy design on winch body with new stylish control pack dedicated to provide excellent winching experience.

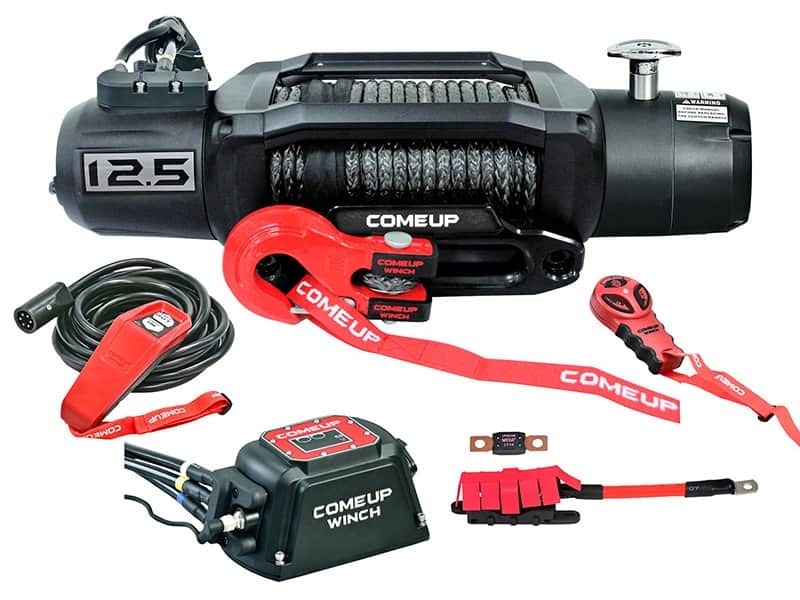

- Convertible control pack plus winch external wiring cable connection design allows quick and convenient remote mounting options.

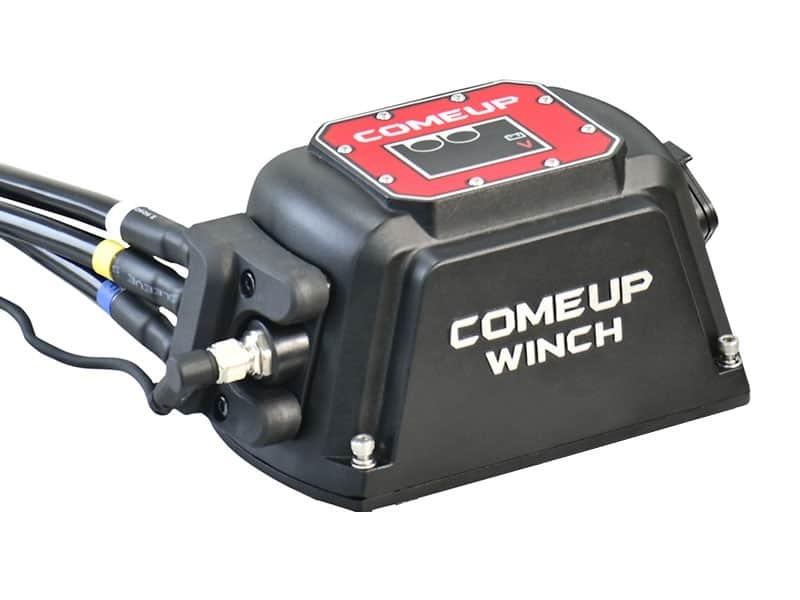

- Control pack equipped with on-top display screen shows battery level and offers solenoid malfunction alarm function.
- Newly designed wireless and wired controllers offer better holding and reliable operation.

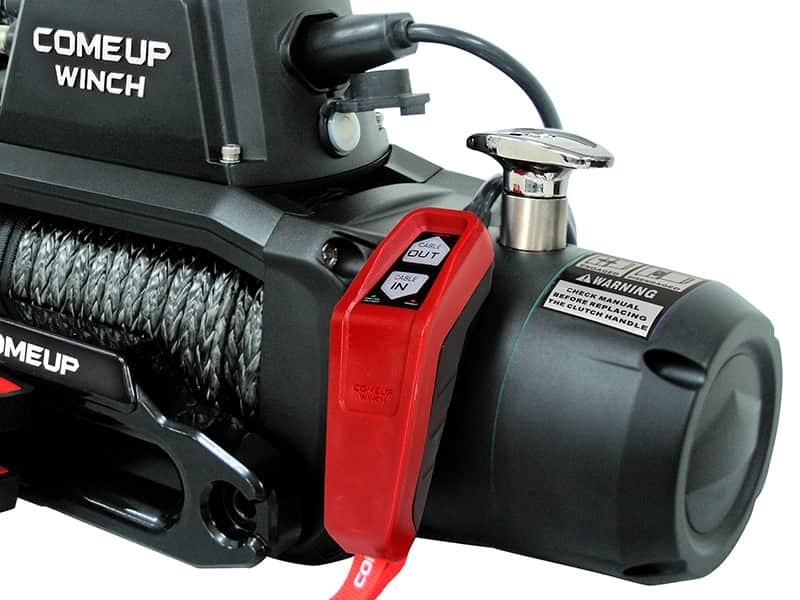

- Wired controller has magnet design, allowing it to put on idle vehicle body.
- Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
- 12- strand construction synthetic rope is coated to improve abrasion and has no water absorption.
- The U.S., Germany, U.K., France, etc. patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.
- Meets SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2014/30/EU.
- BossHook M made of strong SCM440 alloy steel, MBS14,500 KG.
- The Fuse Kit is designed to protect the winch motor and controls from damage caused by Amperage overload or short circuit.
- Built-in wireless control module includes functions:
- On/off switch prevents the vehicle battery from draining when no use
- Motor over-heating warning by LED indicators and beeper
Technical Specifications
| Part number | PN 291500 (12V) |
| Rated line pull | 5,670 kg / 12,500 lb single line |
| Line speed ( 1st layer) | 7.7 mpm / 25.3 fpm 60 A at 12V no load 0.9 mpm / 3.0 fpm 380 A at 12V full load |
| Motor | 3,730 w / 5.0 hp 12V series wound |
| Gear ratio | 3-stage planetary 225:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake (outside the drum) | Automatic, full load CBS (Cone Brake Structure) |
| Winch construction | Aluminum die cast housings with steel drum |
| Drum size | 63.5 mm x 227L mm (2.5” x 8.9”L) |
| Control | Includes both built-in digital two-way wireless control and waterproof wired remote control with LED thermometric indicator and 5m (17') cord |
| Rope type | Synthetic rope |
| Rope size | 11 mm x 21 m (7/16” x 69’) |
| Mounting bolt pattern | 254 mm x 114 mm (10” x 4.5”) |
| Mounting | Foot forward or foot down mounting workable |
| Finish | Matte black powder-coated |
Performance Data
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A |
|---|---|---|
| 12V | ||
| No load | 7.7 / 25.3 | 60 |
| 907 / 2,000 | 3.4 / 11.2 | 115 |
| 1,814 / 4,000 | 2.5 / 8.2 | 160 |
| 2,722 / 6,000 | 2.0 / 6.6 | 220 |
| 3,629 / 8,000 | 1.7 / 5.6 | 275 |
| 5,670 / 12,500 | 0.9 / 3.0 | 380 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
|---|---|---|
| 1st | 5,670 / 12,500 | 4.8 / 15.7 |
| 2nd | 4,499 / 9,919 | 10.9 / 35.7 |
| 3rd | 3,729 / 8,221 | 18.5 / 60.7 |
| 4th | 3,184 / 7,020 | 21.0 / 69.0 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of synthetic rope on the drum.
- The synthetic rope winding on the drum shall remain 10 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and three(3) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

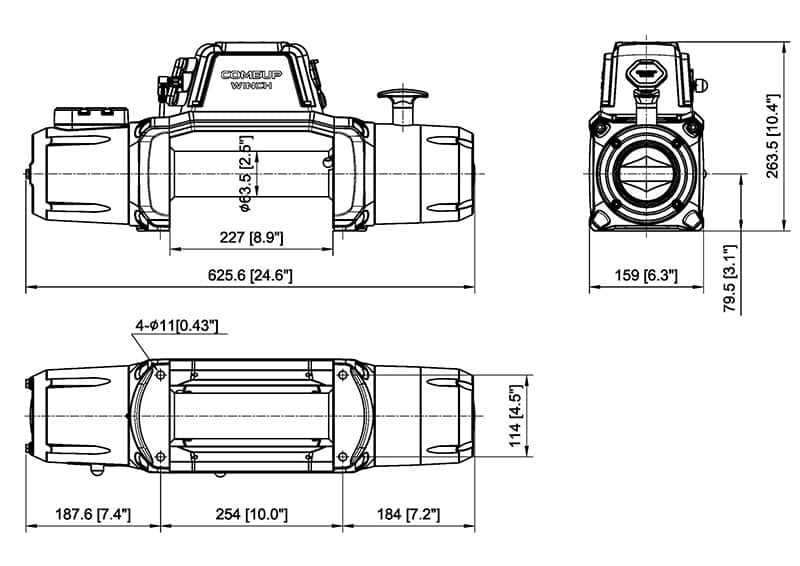

Dimensions
16 equally positioned pin holes ensure seamless clutch transmission, making it easily rotate by 22.5˚ Increments.
Accessories
| Standard Accessories: | Option Accessories: |
|---|---|
|
|
Packaging
- Winch weight: 36 kg / 79.4 lb
- Gross weight: 42.3 kg / 93.3 lb
- Box dimension (L x D x H) : 682 x 209 x 430 mm (26.9” x 8.2” x 16.9”)
Downloads
Why choose SOLO Winch?
A:
Because the Trail Edition is designed around real-world off-road needs.
BossHook M/L enhances safety, and the Fuse Kit protects the motor and controls.
For 95% of overlanding, camping, forest trails, and general recovery situations, the SOLO delivers all the performance you need — with easier installation, lower weight, and more user-friendly operation.
IP69K is an extreme-level protection standard designed for high-pressure, high-temperature water jets — far beyond what most off-roaders ever encounter. 95% of off-road scenarios don’t require that level of protection.
Trail Edition uses a fully sealed construction that already handles rain, mud, puddles, and normal water crossings with ease — while offering simpler maintenance and a more user-friendly setup.
Unless you expect frequent high-pressure wash-down or deep-water operations, Trail Edition provides all the protection required for real-world trails — without unnecessary over-engineering or extra cost.
A:

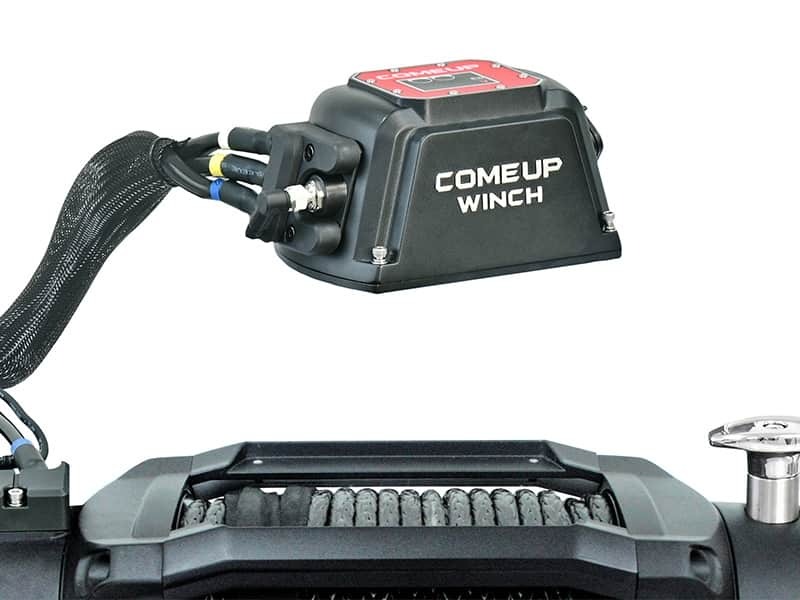

The Convertible Control Pack allows multiple mounting layouts, making it far easier to avoid bumper obstructions and achieve a clean, OEM-like fit.
Installers appreciate the flexibility — fewer conflicts, cleaner routing, faster installation.
A:
Trail Edition is engineered with sealed components, thermal protection, and a proven mechanical cone brake structure (CBS).
The lifetime mechanical warranty reflects confidence in its build quality.
For long-term overlanding, recovery, and expedition travel, Trail Edition offers durability that stands up to years of real-world use.
