Slim 9.5

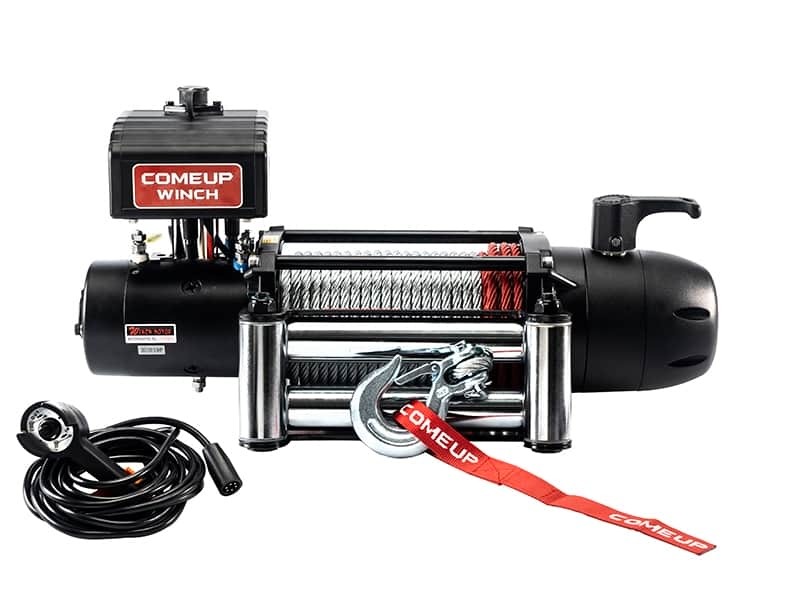

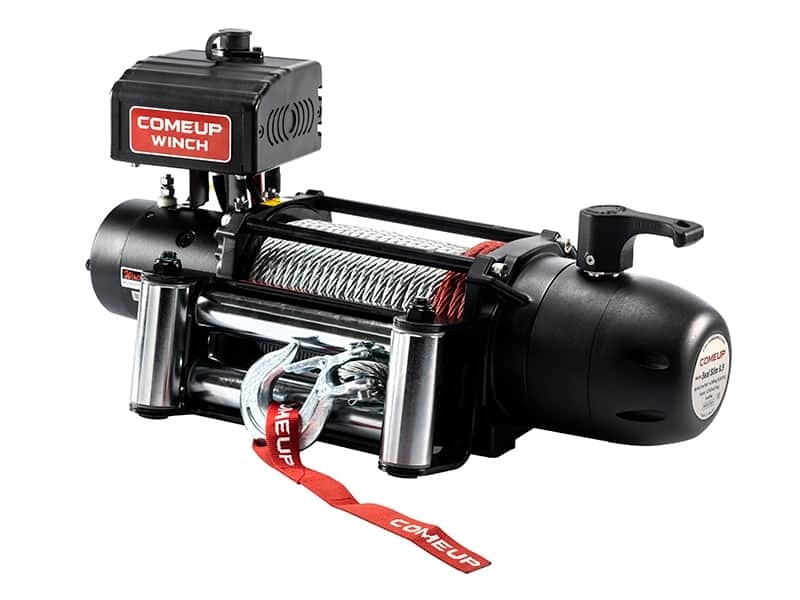

COMEUP Slim 9.5 – 4.3 Tonnes Severe Duty Winch. COMEUP SOLO, Seal and Slim waterproof automotive winches for Jeeps, pickups and SUVs off road.

12V DC severe duty winch rated at 9,500 lb pulling meets or exceeds your expectations.
Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.

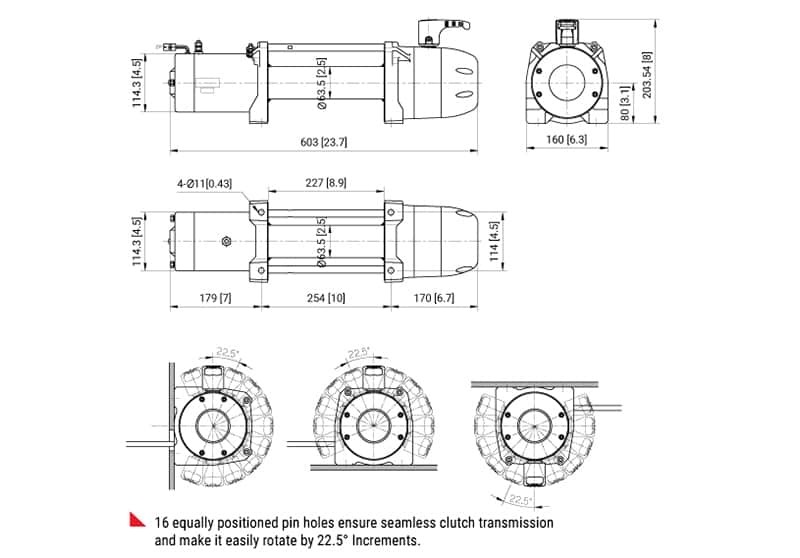

16 equally positioned pin holes with a stainless steel ergonomic T-handle make it possible to reposition in 22.5 degreeIncrements.
Water-proof remote control with thermometric LED indicator w/5 m cord.
Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites heat dispersion. The greater the load on the rope, the greater amount of braking is generated by the mechanism.
Meet SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2014/30/EU.

Technical Specifications

Part number	PN 295020
Rated line pull	4,309 kg / 9,500 lb single line
Line speed ( 1st layer)	14.5 mpm / 47.6 fpm 60 A at 12V no load 2.1 mpm / 6.8 fpm 380 A at 12V full load
Motor	3,730 w / 5.0 hp 12V series wound
Gear ratio	3-stage planetary 159:1
Clutch (freespooling)	Rotating ring gear
Brake (outside the drum)	Automatic, full load CBS (Cone Brake Structure)
Winch construction	Aluminum die cast housings with steel drum
Drum size	63.5 mm x 227L mm (2.5” x 8.9”L)
Control	Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope type	Galvanized aircraft A7 x 19 wire rope
Rope size	8.7 mm x 30.5 m (11/32” x 100’)
Mounting bolt pattern	254 mm x 114 mm (10” x 4.5”)
Mounting	Foot forward or foot down mounting workable
Finish	Matte black powder-coated

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull and Rope Capacity:

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of wire rope on the drum.
The wire rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and three(3) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

Slim 9.5

Standard Accessories	Option Accessories
Roller fairlead Remote control w/5 m (17’) cord Detachable control box Wire rope w/safety hook 1.8 m (6’) 2 gauge battery lead Handsaver strap	Winch accessory kit

Document	Date	Format	Download
Slim 9.5 Operation Manual	Ver: 02	2025-08-29	PDF, 0.67 MB	Download
