FullSharp · since 1991

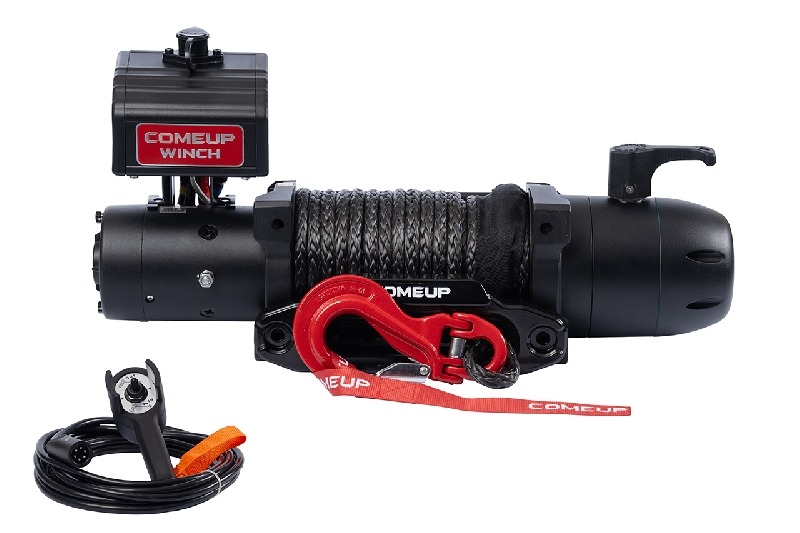

Slim 12.5s

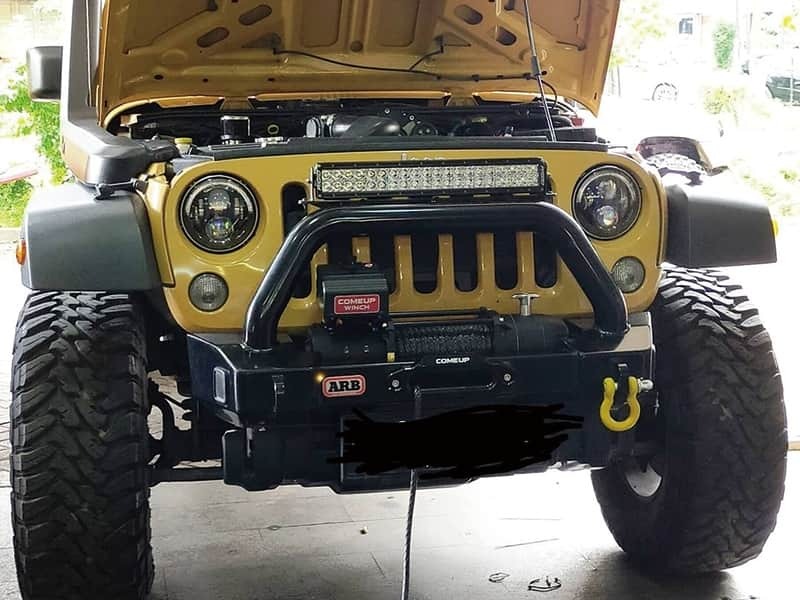

COMEUP Slim 12.5s – 5.6 Tonnes Severe Duty Winch. COMEUP SOLO, Seal and Slim waterproof automotive winches for Jeeps, pickups and SUVs off road.

  • 12V DC severe duty winch rated at 12,500 lb pulling meets or exceeds your expectations.
  • Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.
  • 16 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 22.5 degreeIncrements.
  • Water-proof remote control with thermometric LED indicator w/5 m cord.
  • A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
  • Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
  • The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch idea for use with synthetic rope.
  • Meet SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2014/30/EU.

Technical Specifications

Part numberPN 295037 (12V)
Rated line pull5,670 kg / 12,500 lb single line
Line speed ( 1st layer)7.7 mpm / 25.3 fpm 60 A at 12V no load
0.9 mpm / 3.0 fpm 380 A at 12V full load
Motor3,730 w / 5.0 hp 12V series wound
Gear ratio3-stage planetary 225:1
Clutch (freespooling)Rotating ring gear
Brake (outside the drum)Automatic, full load CBS (Cone Brake Structure)
Winch constructionAluminum die cast housings with steel drum
Drum size63.5 mm x 227L mm (2.5” x 8.9”L)
ControlWaterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope typeSynthetic rope
Rope size11 mm x 21 m (7/16” x 69’)
Mounting bolt pattern254 mm x 114 mm (10” x 4.5”)
MountingFoot forward mounting workable
FinishMatte black powder-coated
* Remark: Only foot forward mounting can meet SAE J706

Performance Data

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb		Line Speed,
mpm / fpm		Amp. Draw, A
12V
No load7.7 / 25.360
907 / 2,0003.4 / 11.2115
1,814 / 4,0002.5 / 8.2160
2,722 / 6,0002.0 / 6.6220
3,629 / 8,0001.7 / 5.6275
5,670 / 12,5000.9 / 3.0380

Line Pull and Rope Capacity:

Layer of RopePull by layer, kg / lbTotal Rope on the Drum, m / ft
1st5,670 / 12,5004.8 / 15.7
2nd4,499 / 9,91910.9 / 35.7
3rd3,729 / 8,22118.5 / 60.7
4th3,184 / 7,02021.0 / 69.0

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the first layer of synthetic rope on the drum.
  • The synthetic rope winding on the drum shall remain 10 wraps from the drum.

Warranty

  • Limited lifetime warranty for mechanical components and three(3) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

Dimensions

Slim 12.5s

Accessories

Standard Accessories:Option Accessories:
  • Hawse fairlead
  • Remote control w/5 m (17’) cord
  • Detachable control box
  • Synthetic rope w/sling hook
  • 1.8 m (6’) 2 gauge battery lead
  • Handsaver strap
  • Winch accessory kit

Packaging

  • Winch weight: 29.3 kg / 64.6 lb
  • Gross weight: 40.3 kg / 89 lb
  • Box dimension (L x D x H) : 682 x 209 x 430 mm (26.9” x 8.2” x 16.9”)

Downloads

DocumentDateFormatDownload
Slim 12.5s Operation ManualVer:032025-08-28PDF, 0.58 MBDownload
