Slim 12.5rsi Trail Edition

COMEUP Slim 12.5rsi Trail Edition – Compact Strength Low Profile integrated winch - 5.6 Tonnes Severe Duty Winch. COMEUP SOLO, Seal and Slim waterproof automotive winches for Jeeps, pickups and SUVs off road.

Trail Edition features includes the innovative BossHook M and a specialized winch fuse kit for superior functionality and protection. Slim 12.5rsi Trail Edition with the integrated design of the control box and motor, the overall size of the winch is significantly reduced, making low-profile installation much easier.

12V DC severe duty winch rated at 12,500 lbs pulling meets or exceeds your expectations.
The slim size plus strong of motor housing and gearbox support rack are suitable for equipped with any vehicles.
Heavy duty series wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch
New clutch lever kit is easy to engaged and disengaged. 16 equally positioned pin holes ensure seamless clutch transmission and make it easily rotate by 22.5 degree increments.
Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
On/Off switch prevents the vehicle battery from draining when no use.
Both built-in digital two way wireless remote control and wired waterproof remote control.
A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
BossHook M made of strong SCM440 alloy steel, MBS14,500 KG.
The Fuse Kit is designed to protect the winch motor and controls from damage caused by Amperage overload or short circuit.
Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
U.S. Germany, U.K. France, etcpatented mechanical cone brake holds the full load

Technical Specifications

Part number	PN 295073 (12V)
Rated line pull	5,670 kg / 12,500 lb single line
Line speed ( 1st layer)	7.7 mpm / 25.3 fpm 60 A at 12V no load 0.9 mpm / 3.0 fpm 380 A at 12V full load
Motor	3,730 w / 5.0 hp 12V series wound
Gear ratio	3-stage planetary 225:1
Clutch (freespooling)	Rotating ring gear
Brake (outside the drum)	Automatic, full load CBS (Cone Brake Structure)
Winch construction	Aluminum die cast housings with steel drum
Drum size	63.5 mm x 227L mm (2.5” x 8.9”L)
Control	Includes both built-in digital two-way wireless control and waterproof wired remote control with LED thermometric indicator and 5m (17') cord
Rope type	Synthetic rope
Rope size	11 mm x 21 m (7/16” x 69’)
Mounting bolt pattern	254 mm x 114 mm (10” x 4.5”)
Mounting	Foot forward or foot down mounting workable
Finish	Matte black powder-coated

Performance Data

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull, kg / lb	Line Speed, mpm / fpm	Amp. Draw, A
Line Pull, kg / lb	Line Speed, mpm / fpm	12V
No load	7.7 / 25.3	60
907 / 2,000	3.4 / 11.2	115
1,814 / 4,000	2.5 / 8.2	160
2,722 / 6,000	2.0 / 6.6	220
3,629 / 8,000	1.7 / 5.6	275
5,670 / 12,500	0.9 / 3.0	380

Line Pull and Rope Capacity:

Layer of Rope	Pull by layer, kg / lb	Total Rope on the Drum, m / ft
1^st	5,670 / 12,500	4.8 / 15.7
2^nd	4,499 / 9,919	10.9 / 35.7
3^rd	3,729 / 8,221	18.5 / 60.7
4^th	3,184 / 7,020	21.0 / 69.0

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of synthetic rope on the drum.
The synthetic rope winding on the drum shall remain 10 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and three(3) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

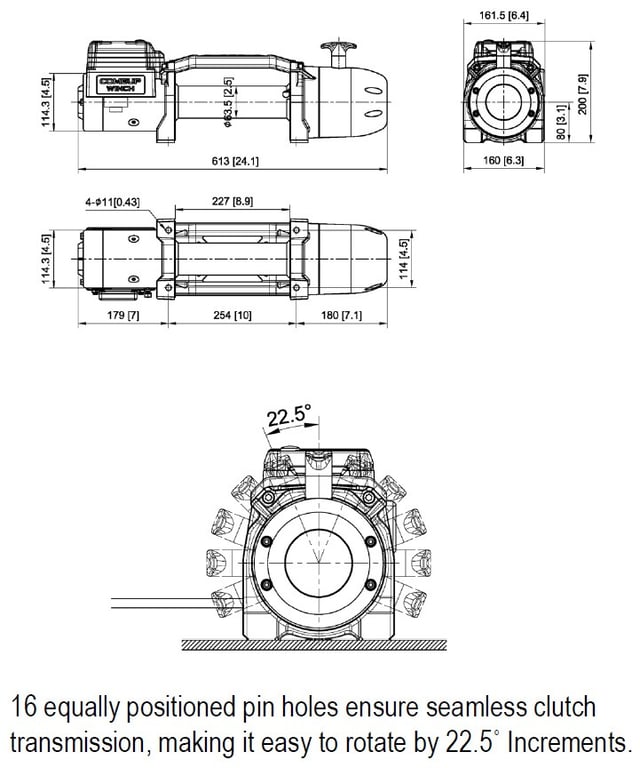

Dimensions

Slim 9.5rsi Trail Edition Dimension

Accessories

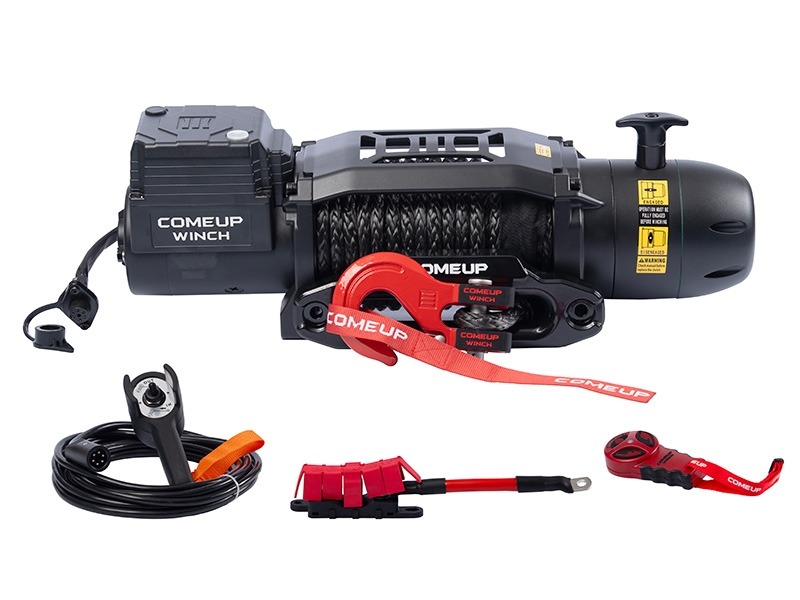

Standard Accessories:	Option Accessories:
Hawse fairlead Built-in wireless remote control modules Remote control w/5 m (17’) cord Bridge control box w/ 250A fuse Synthetic rope w/ BossHook M 1.8 m (6’) 2 gauge battery lead Handsaver strap	Winch accessory kit

Packaging

Winch weight: 31.1 kg / 68.6 lb
Gross weight: 39.4 kg / 87 lb
Box dimension (L x D x H) : 682 x 209 x 430 mm (26.9” x 8.2” x 16.9”)

Downloads

Document	Date	Format	Download
Slim 12.5rsi Trail Edition Operation Manual	Ver: 01	2025-09-05	PDF, 0.86 MB	Download
