Slim 12.5rs Trail Edition

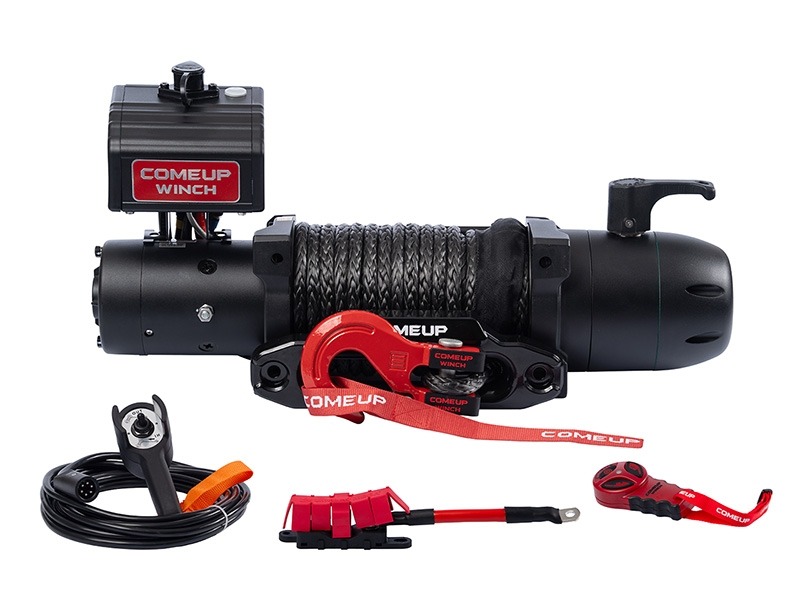

COMEUP Slim 12.5rs Trail Edition – 5.6 Tonnes Severe Duty Winch. COMEUP SOLO, Seal and Slim waterproof automotive winches for Jeeps, pickups and SUVs off road.
Trail Edition features includes the innovative BossHook M and a specialized winch fuse kit for superior functionality and protection.- 12V DC severe duty winch rated at 12,500 lbspulling meets or exceeds your expectations.
- The slim size plus strong of motor housing and gearbox support rack are suitable for equipped with any vehicles.
- Heavy duty series wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch.
- New clutch lever kit is easy to engaged and disengaged. 16 equally positioned pin holes ensure seamless clutch transmission and make it easily rotate by 22.5 degree increments.
- Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
- waterproof remote control.
- A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
- The U.S., Germany, U.K., France, etc. patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.
- Meets SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2014/30/EU.
- Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
- BossHook M made of strong SCM440 alloy steel, MBS 14,500 KG.
- The Fuse Kit is designed to protect the winch motor and controls from damage caused by Amperage overload or short circuit.
- Built-in wireless control module includes functions:
- On/Off switch prevents the vehicle battery from draining when no use
- Motor over-heating warning by LED indicators and beeper
Technical Specifications
| Part number | PN 295114 (12V) |
| Rated line pull | 5,670 kg / 12,500 lb single line |
| Line speed ( 1st layer) | 7.7 mpm / 25.3 fpm 60A at 12V no load 0.9 mpm / 3.0 fpm 380A at 12V full load |
| Motor | 3,730 w / 5.0 hp 12V series wound |
| Gear ratio | 3-stage planetary 225:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake (outside the drum) | Automatic, full load CBS (Cone Brake Structure) |
| Winch construction | Aluminum die cast housings with steel drum |
| Drum size | 63.5 mm x 227L mm (2.5” x 8.9”L) |
| Control | Includes both built-in digital two-way wireless control and waterproof wired remote control with LED thermometric indicator and 5m (17') cord |
| Rope type | Synthetic rope |
| Rope size | 11 mm x 21 m (7/16” x 69’) |
| Mounting bolt pattern | 254 mm x 114 mm (10” x 4.5”) |
| Mounting | Foot forward mounting workable |
| Finish | Matte black powder-coated * Remark: Only foot forward mounting can meet SAE J706 |
Performance Data
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A |
|---|---|---|
| 12V | ||
| No load | 7.7 / 25.3 | 60 |
| 907 / 2,000 | 3.4 / 11.2 | 115 |
| 1,814 / 4,000 | 2.5 / 8.2 | 160 |
| 2,722 / 6,000 | 2.0 / 6.6 | 220 |
| 3,629 / 8,000 | 1.7 / 5.6 | 275 |
| 5,670 / 12,500 | 0.9 / 3.0 | 380 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
|---|---|---|
| 1st | 5,670 / 12,500 | 4.8 / 15.7 |
| 2nd | 4,499 / 9,919 | 10.9 / 35.7 |
| 3rd | 3,729 / 8,221 | 18.5 / 60.7 |
| 4th | 3,184 / 7,020 | 21.0 / 69.0 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of synthetic rope on the drum.
- The synthetic rope winding on the drum shall remain 10 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and three(3) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.
Dimensions
Accessories
| Standard Accessories: | Option Accessories: |
|---|---|
|
|
Packaging
- Winch weight: 29.3 kg / 64.6 lb
- Gross weight: 40.3 kg / 89 lb
- Box dimension (L x D x H) : 682 x 209 x 430 mm (26.9” x 8.2” x 16.9”)
Downloads
| Document | Date | Format | Download | |
|---|---|---|---|---|
| Slim 12.5rs Trail Edition Operation Manual | Ver: 00 | 2025-09-03 | PDF, 0.61 MB | Download |
