Seal Slim 9.5rs

COMEUP Seal Slim 9.5rs – 4.3 Tonnes Severe Duty Winch. Earlier COMEUP automotive winch models, listed for reference and spare-parts lookup.

12V DC severe duty winch rated at 9,500 lbs pulling meets or exceeds your expectations.
Heavy duty series wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch

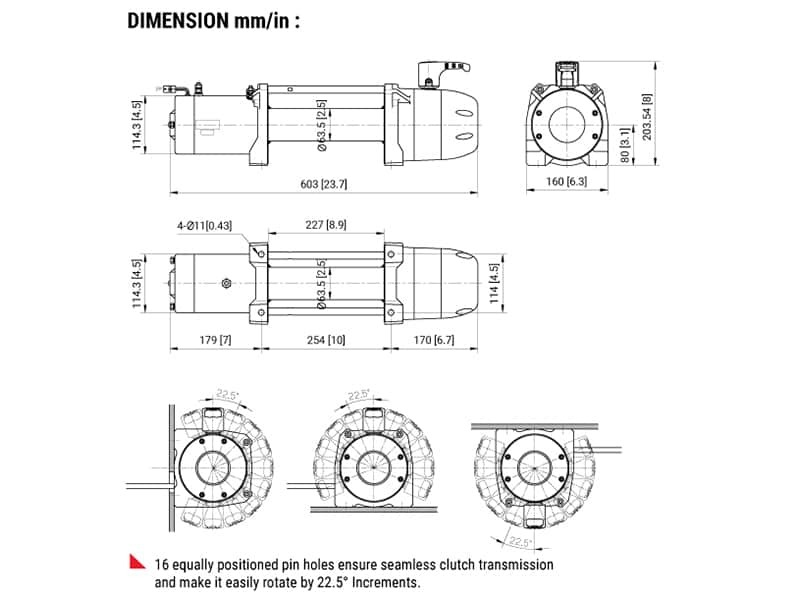

New clutch lever kit is easy to engage and disengaged. 16 equally positioned pin holes to ensure seamless clutch transmission and make it easily rotate by 22.5 degree increments.
Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
Cutout switch prevents the vehicle battery from draining when no use.
Both built-in digital two way signal wireless remote control and wired water-proof remote control.
12 strand construction synthetic rope coated to improve abrasion resistance.
Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load

Technical Specifications

Part number	PN 295053 (12V)
Rated line pull	4,309 kg / 9,500 lb single line
Line speed ( 1st layer)	14.8 mpm / 48.6 fpm 60 A at 12V no load 2.2 mpm / 7.2 fpm 380 A at 12V full load
Motor	3,730 w / 5.0 hp 12V series wound
Gear ratio	3-stage planetary 159:1
Clutch (freespooling)	Rotating ring gear
Brake (outside the drum)	Automatic, full load CBS (Cone Brake Structure)
Winch construction	Aluminum die cast housings with steel drum
Drum size	63.5 mm x 227L mm (2.5” x 8.9”L)
Control	Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope type	Synthetic rope
Rope size	10 mm x 30.5 m (3/8” x 100’)
Mounting bolt pattern	254 mm x 114 mm (10” x 4.5”)
Mounting	Foot forward or foot down mounting workable
Finish	Matte black powder-coated

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull and Rope Capacity:

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of synthetic rope on the drum.
The synthetic rope winding on the drum shall remain 10 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and three ( 3 ) years warranty for electrical components from date of purchase. Synthetic ropes are not included under warranty.

Seal Slim 9.5rs

Standard Accessories	Option Accessories

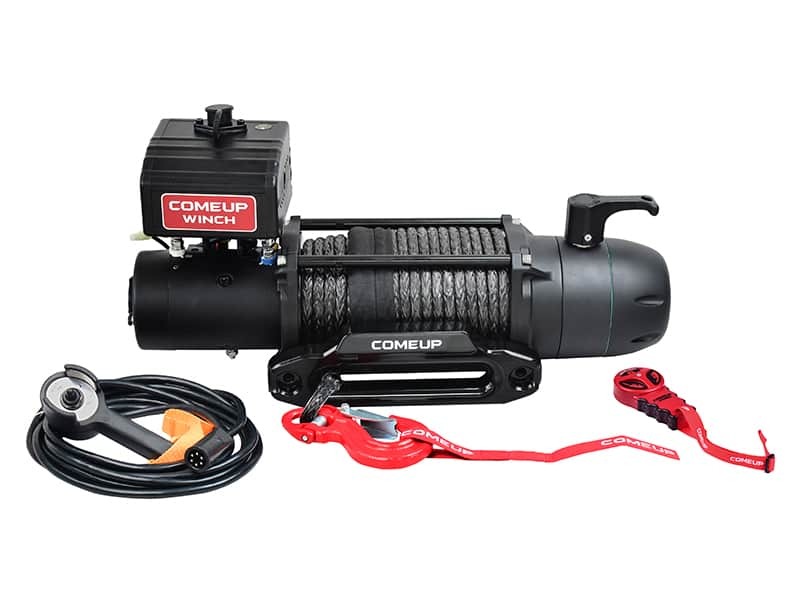

Hawse fairlead Built-in wireless remote control modules Remote control w/5 m (17’) cord Detachable control box Synthetic rope w/sling hook 1.8 m (6’) 2 gauge battery lead Handsaver strap	Winch accessory kit

Document	Date	Format	Download
Seal Slim 9.5rs Operation Manual	2023-12-18	PDF, 0.31 MB	Download
[QUICK START GUIDE] Seal Slim Series - Pairing the wireless transmitter with the winch wireless receiver module	2023-09-01	PDF, 0.60 MB	Download
[QUICK START GUIDE] Connecting the cables of the control box to the motor terminals (triangle type)	2021-07-31	PDF, 0.34 MB	Download
