FullSharp · since 1991

Seal Slim 12.5rs

COMEUP Seal Slim 12.5rs – 5.6 Tonnes Severe Duty Winch. Earlier COMEUP automotive winch models, listed for reference and spare-parts lookup.

  • 12V DC severe duty winch rated at 12,500 lbs pulling meets or exceeds your expectations.
  • Heavy duty series wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch
  • New clutch lever kit is easy to engage and disengaged. 16 equally positioned pin holes to ensure seamless clutch transmission and make it easily rotate by 22.5 degree increments.
  • Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
  • Cutout switch prevents the vehicle battery from draining when no use.
  • Both built-in digital two way signal wireless remote control and wired water-proof remote control.
  • 12 strand construction synthetic rope coated to improve abrasion resistance.
  • Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
  • U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load

Technical Specifications

Part numberPN 295059 (12V)
Rated line pull5,670 kg / 12,500 lb single line
Line speed ( 1st layer)7.7 mpm / 25.3 fpm 45 A at 12V no load
0.9 mpm / 3.0 fpm 470 A at 12V full load
Motor3,730 w / 5.0 hp 12V series wound
Gear ratio3-stage planetary 225:1
Clutch (freespooling)Rotating ring gear
Brake (outside the drum)Automatic, full load CBS (Cone Brake Structure)
Winch constructionAluminum die cast housings with steel drum
Drum size63.5 mm x 227L mm (2.5” x 8.9”L)
ControlBoth built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope typeSynthetic rope
Rope size11 mm x 25 m (7/16” x 82’)
Mounting bolt pattern254 mm x 114 mm (10” x 4.5”)
MountingFoot forward mounting workable
FinishMatte black powder-coated
* Remark: Only foot forward mounting can meet SAE J706

Performance Data

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb		Line Speed,
mpm / fpm		Amp. Draw, A
12V
No load7.7 / 25.345
907 / 2,0003.4 / 11.275
1,814 / 4,0002.5 / 8.2160
2,722 / 6,0002.0 / 6.6230
3,629 / 8,0001.7 / 5.6300
5,670 / 12,5000.9 / 3.0470

Line Pull and Rope Capacity:

Layer of RopePull by layer, kg / lbTotal Rope on the Drum, m / ft
1st5,670 / 12,5004.8 / 15.7
2nd4,499 / 9,91910.9 / 35.7
3rd3,729 / 8,22118.5 / 60.7
4th3,184 / 7,02025.0 / 82.0

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the first layer of synthetic rope on the drum.
  • The synthetic rope winding on the drum shall remain 10 wraps from the drum.

Warranty

  • Limited lifetime warranty for mechanical components and three(3) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

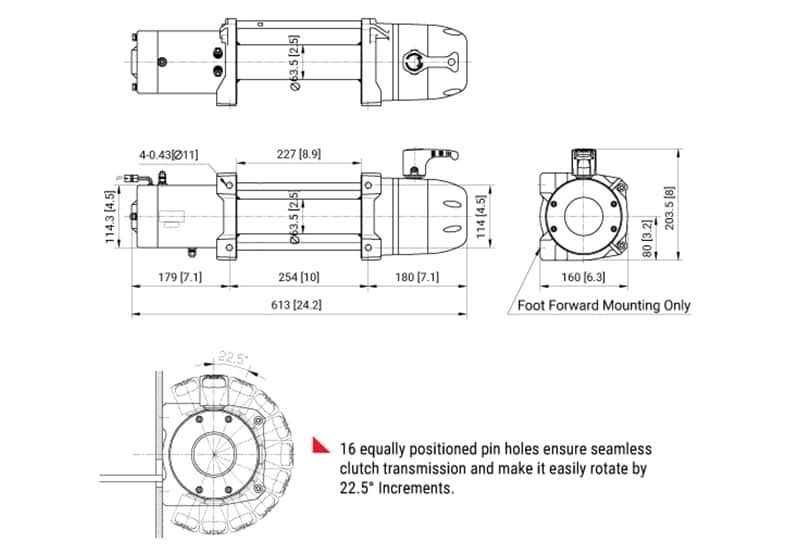

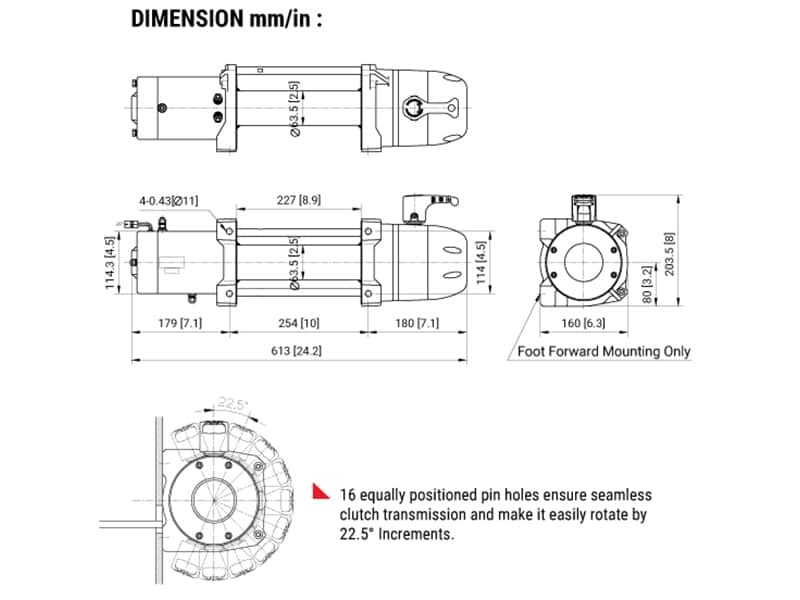

Dimensions

Seal Slim 12.5rs

Accessories

Standard Accessories:Option Accessories:
  • Hawse fairlead
  • Built-in wireless remote control modules
  • Remote control w/5 m (17’) cord
  • Detachable control box
  • Synthetic rope w/sling hook
  • 1.8 m (6’) 2 gauge battery lead
  • Handsaver strap
  • Winch accessory kit

Packaging

  • Winch weight: 29.8 kg / 65.7 lb
  • Gross weight: 40.8 kg / 90 lb
  • Box dimension (L x D x H) : 682 x 209 x 430 mm (26.9” x 8.2” x 16.9”)

Downloads

DocumentDateFormatDownload
Seal Slim 12.5rs Operation Manual2023-12-18PDF, 0.58 MBDownload
[QUICK START GUIDE] Seal Slim Series - Pairing the wireless transmitter with the winch wireless receiver module2023-09-01PDF, 0.60 MBDownload
[QUICK START GUIDE] Connecting the cables of the control box to the motor terminals (triangle type)2021-07-31PDF, 0.34 MBDownload
