Seal MadX 8.0s LD

COMEUP Seal MadX 8.0s LD – 8,000 LB Extreme Racing Winch with 25 mpm Line Speed. Blazer and Seal MadX competition winches with high line speed for off-road racing.

12V DC severe duty winch rated at 8,000 lb pulling meets or exceeds your expectations.
Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.
16 equally positioned pin holes with a stainless steel ergonomic T-handle make it possible to reposition in 22.5 degree Increments.
Water-proof remote control with thermometric LED indicator w/5 m cord
Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch
The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites heat dispersion. The greater the load on the rope, the greater amount of braking is generated by the mechanism
Meets SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2014/30/EU.

Technical Specifications

Part number	PN 296060
Rated line pull	3,630 kg / 8,000 lb single line
Motor	5,250 w / 7.0 hp 12V series wound
Gear ratio	3-stage planetary 67:1
Clutch (freespooling)	Rotating ring gear
Brake (outside the drum)	Automatic, full load CBS (Cone Brake Structure)
Winch construction	Aluminum die cast housings with steel drum

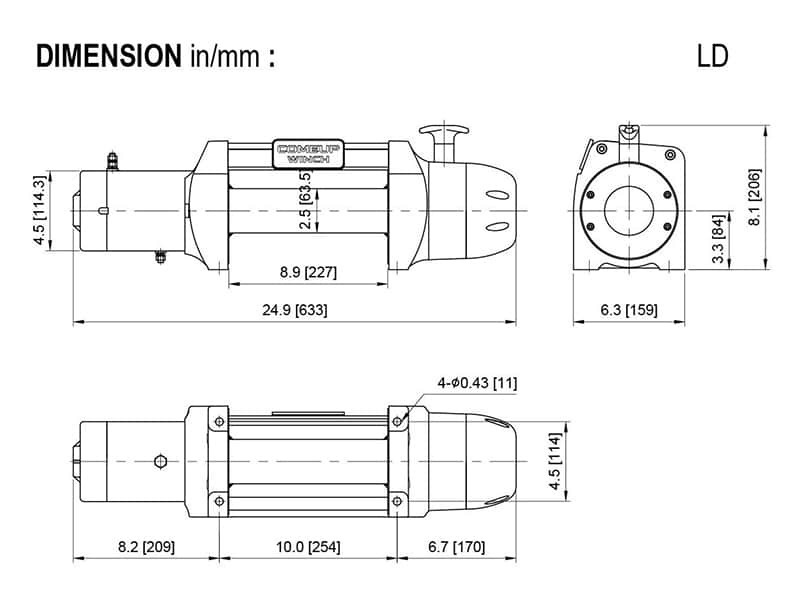

Drum size	63.5 mm x 227L mm (2.5” x 8.9”L)
Control	Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
Recommended battery	650 CCA minimum for winching
Battery lead	1.8 m (6') 2 gauge battery lead
Mounting bolt pattern	254 mm x 114 mm (10” x 4.5”)
Mounting	Foot forward or foot down mounting workable
Finish	Matte black powder-coated

Performance Data

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull, kg / lb	Line Speed, mpm / fpm	Amp. Draw, A
Line Pull, kg / lb	Line Speed, mpm / fpm	12V
No load	25 / 82	45
907 / 2,000	10.8 / 35.4	125
1,814 / 4,000	8.5 / 27.9	249
2,722 / 6,000	4.1 / 13.5	378
3,630 / 8,000	1.0 / 3.3	500

Line Pull and Rope Capacity:

Layer of Rope	Pull by layer, kg / lb	Total Rope on the Drum, m / ft
1^st	3,630 / 8,000	5.8 / 19.1
2^nd	2,924 / 6,446	13.1 / 42.9
3^rd	2,449 / 5,399	21.7 / 71.2
4^th	2,106 / 4,643	30.5 / 100

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 10 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and three ( 3 ) years warranty for electrical components from date of purchase. Synthetic ropes are not included under warranty.

Accessories

Standard Accessories	Option Accessories

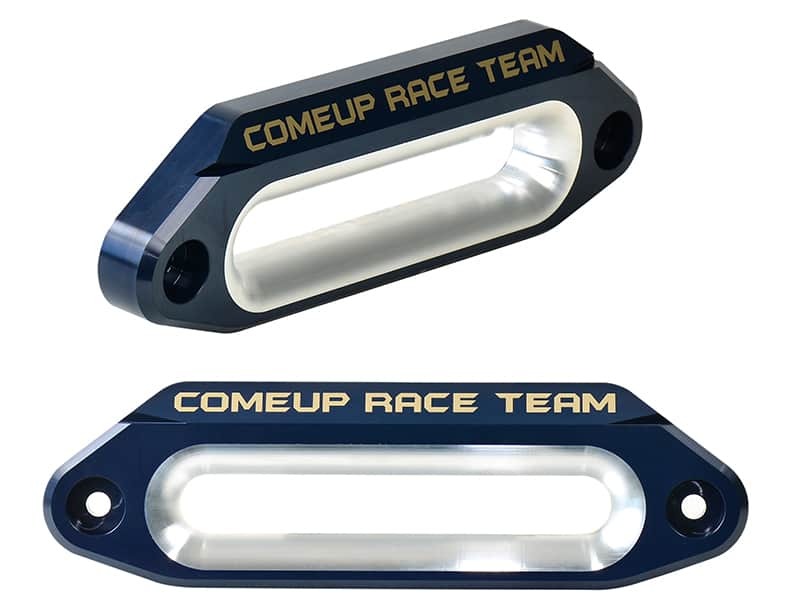

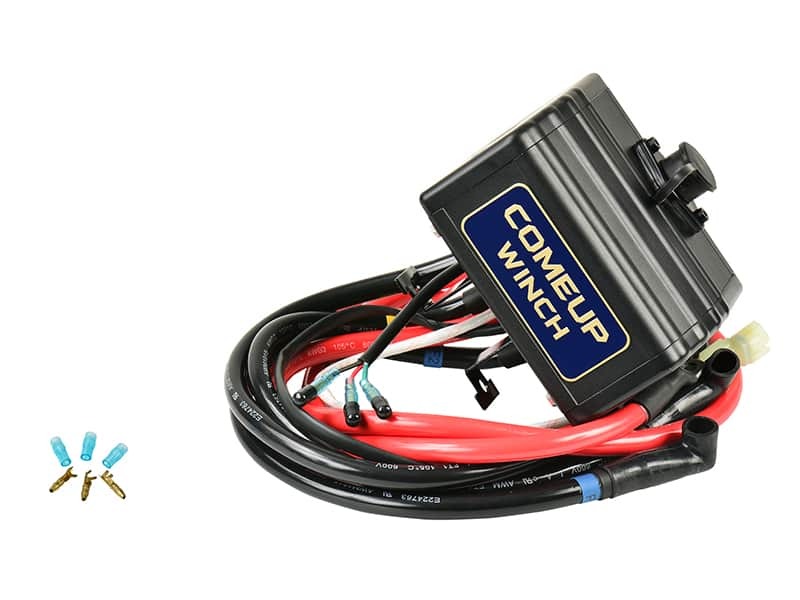

Hawse fairlead, PN 883067 Remote control w/5 m (17’) cord Detachable control box, PN 883070 1.8 m (6’) 2 gauge battery lead	Winch accessory kit Air Clutch

Packaging

Winch weight (including rope) : 26 kg / 57.3 lb
Gross weight : 38.5 kg / 85 lb
Box dimension, (L x D x H) : 653 x 209 x 430 mm (25.7" x 8.2" x 16.9")

Downloads

Document	Date	Format	Download
Seal MadX 8.0s SD/MD//LD Operation Manual	2021-09-29	PDF, 0.23 MB	Download
