Seal Gen2 9.5s

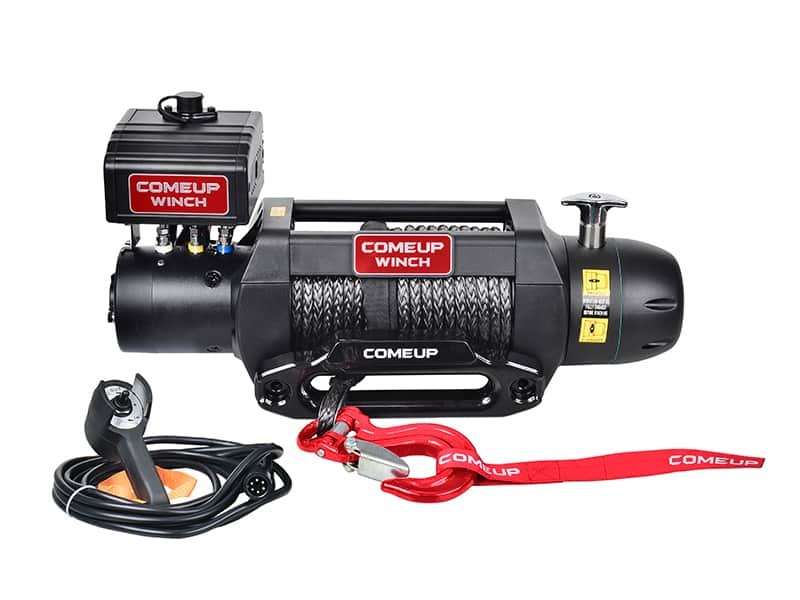

COMEUP Seal Gen2 9.5s – 4.3 Tonnes Self-Recovery Winch. Earlier COMEUP automotive winch models, listed for reference and spare-parts lookup.

  • 12V DC severe duty winch rated at 9,500 lb pulling meets or exceeds your expectations.
  • Heavy duty series wound motor equipped with thermal protection switch alters.
  • 16 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 22.5 degree Increments.
  • Both built-in digital signal two ways wireless remote control and wired water-proof remote control
  • A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
  • Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch
  • The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites
    heat dispersion and also makes the winch ideal for use with synthetic rope.
  • Meets SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2014/30/EU.

Technical Specifications

Part numberPN 295990
Rated line pull4,309 kg / 9,500 lb single line
Motor3,730 w / 5.0 hp 12V series wound
Gear ratio3-stage planetary 159:1
Clutch (freespooling)Rotating ring gear
Brake (outside the drum)Automatic, full load CBS (Cone Brake Structure)
Winch constructionAluminum die cast housings with steel drum
Drum size63.5 mm x 227L mm (2.5” x 8.9”L)
ControlWaterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope typeSynthetic rope
Rope size10 mm x 30.5 m (3/8” x 100’)
Mounting bolt pattern254 mm x 114 mm (10” x 4.5”)
MountingFoot forward or foot down mounting workable
FinishMatte black powder-coated

Performance Data

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb		Line Speed,
mpm / fpm		Amp. Draw, A
12V
No load14.8 / 48.660
907 / 2,0004.8 / 15.7115
1,814 / 4,0003.6 / 11.8210
2,722 / 6,0002.8 / 9.2245
3,629 / 8,0002.3 / 7.6280
4,309 / 9,5002.2 / 7.2380

Line Pull and Rope Capacity:

Layer of RopePull by layer, kg / lbTotal Rope on the Drum, m / ft
1st4,309 / 9,5005.1 / 16.7
2nd3,472 / 7,65511.7 / 38.4
3rd2,908 / 6,41019.7 / 64.6
4th2,501 / 5,51430.5 / 100

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the first layer of synthetic rope on the drum.
  • The synthetic rope winding on the drum shall remain 10 wraps from the drum.

Warranty

  • Limited lifetime warranty for mechanical components and three(3) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

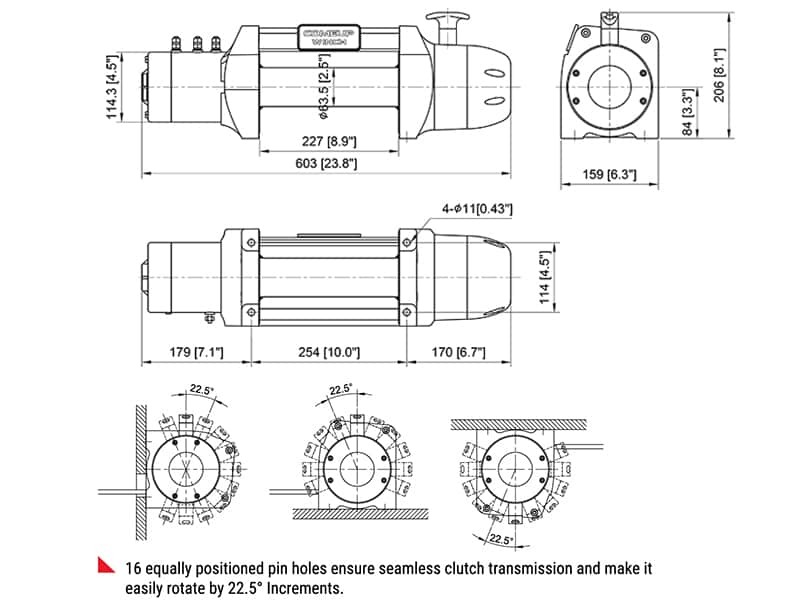

Dimensions

Seal Gen2 9.5s

Accessories

Standard AccessoriesOption Accessories
  • Hawse fairlead
  • Remote control w/5 m (17’) cord
  • Detachable control box
  • Synthetic rope w/sling hook
  • 1.8 m (6’) 2 gauge battery lead
  • Handsaver strap
  • Winch accessory kit

Packaging

  • Winch weight: 28.5 kg / 62.8 lb
  • Gross weight: 40 kg / 88 lb
  • Box dimension ( L x D x H) : 682 x 209 x 430 mm (26.9” x 8.2” x 16.9”)

Downloads

DocumentDateFormatDownload
Seal Gen2 9.5s Operation Manual2022-04-28PDF, 0.69 MBDownload
[QUICK START GUIDE] Connecting the cables of the control box to the motor terminals (triangle type)2021-07-31PDF, 0.34 MBDownload
[QUICK START GUIDE] Connecting the cables of the control box to the motor terminals (in line type)2021-07-31PDF, 0.21 MBDownload
