FullSharp · since 1991

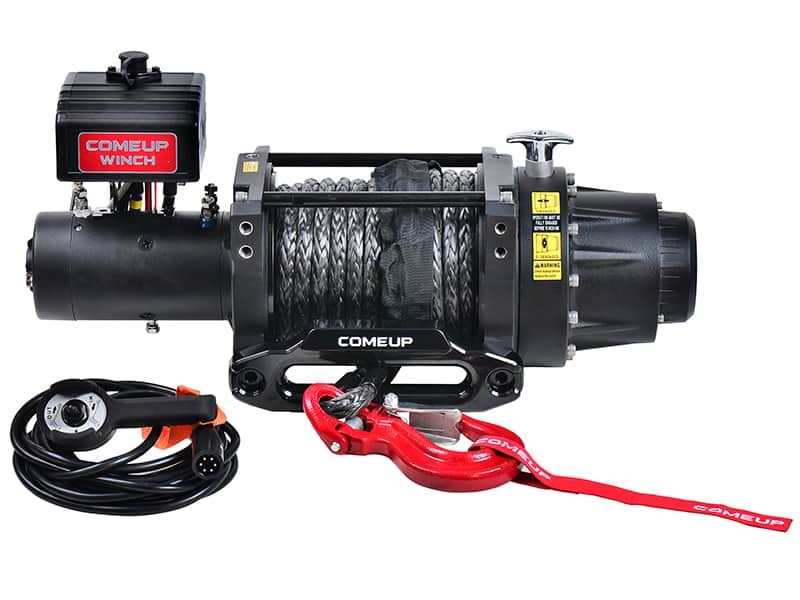

Seal Gen2 20.0s

COMEUP Seal Gen2 20.0s – 9.1 Tonnes Severe Duty Winch. COMEUP SOLO, Seal and Slim waterproof automotive winches for Jeeps, pickups and SUVs off road.

  • 12V DC severe duty winch rated at 20,000 lb pulling meets or exceeds your expectations.
  • Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.
  • 4 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 90 degree Increments.
  • Water-proof remote control with thermometric LED indicator w/5 m cord
  • A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
  • Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch
  • The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.
  • Meets international standards of CE Machinery Directive 2006/42/EC, CE Electromagnetic Compatibility Directive 2014/30/EU, and SAE J706 Surface Vehicle standard 2003-08 rev.

Technical Specifications

Part numberPN 295217 (12V)
Rated line pull9,072 kg / 20,000 lb single line
Line speed ( 1st layer)4.5 mpm / 14.8 fpm 60A at 12V no load
0.4 mpm / 1.3 fpm 410A at 12V full load
Motor5,220 w / 7.0 hp 12V series wound
Gear train3-stage planetary 343:1
Clutch (freespooling)Rotating ring gear
Brake (outside the drum)Automatic, full load CBS (Cone Brake Structure)
Winch constructionAluminum die cast housings with steel drum
Drum size89 mm x 204L mm (3.5" x 8"L)
ControlWaterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope typeSynthetic rope
Rope size14 mm x 16.7 m (9/16" x 55’)
Mounting bolt pattern254 mm x 114.3 mm (10” x 4.5”)
254 mm x 165 mm (10" x 6.5")
MountingFoot forward mounting only
* Remark: Only foot forward mounting can meet SAE J706

Performance Data

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb		Line Speed,
mpm / fpm		Amp. Draw, A
12V
No load4.5 / 14.860
1,814 / 4,0002.1 / 6.9150
3,629 / 8,0001.8 / 5.9190
4,536 / 10,0001.4 / 4.6260
7,484 / 16,5001.1 / 3.6340
9,072 / 20,0000.4 / 1.3410

Line Pull and Rope Capacity:

Layer of RopePull by layer, kg / lbTotal Rope on the Drum, m / ft
1st9,072 / 20,0004.6 / 14.9
2nd7,133 / 15,72510.3 / 33.9
3rd5,877 / 12,95616.7 / 55.0

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the first layer of rope on the drum.
  • The rope winding on the drum shall remain 10 wraps from the drum.

Warranty

  • Limited lifetime warranty for mechanical components and three(3) years warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

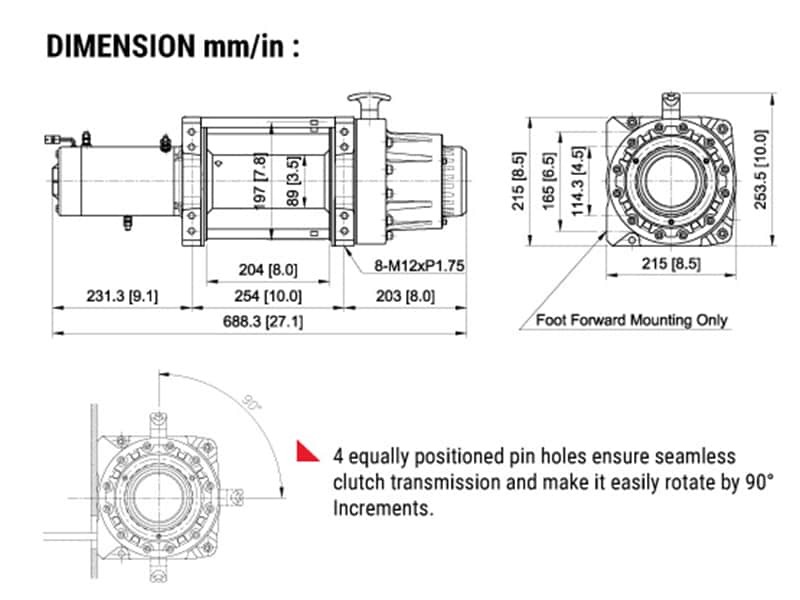

Dimensions

Seal Gen2 20.0s

Accessories

Standard Accessories:

  • Hawse fairlead
  • Remote control w/5 m (17’) cord
  • Detachable control box
  • Synthetic rope w/sling hook
  • 1.8 m (6’) 2 gauge battery lead
  • Handsaver strap

Packaging

  • Winch weight (including rope) : 49.6 kg / 109.3 lb
  • Gross weight : 63.6 kg / 140.2 lb
  • Box dimension, (L x D x H) : 740 x 270 x 495 mm (29.1" x 10.6" x 19.5")

Downloads

DocumentDateFormatDownload
Seal Gen2 20.0s Operation Manual2022-04-28PDF, 0.84 MBDownload
[QUICK START GUIDE] Connecting the cables of the control box to the motor terminals (triangle type)2021-07-31PDF, 0.34 MBDownload
