Seal Gen2 20.0

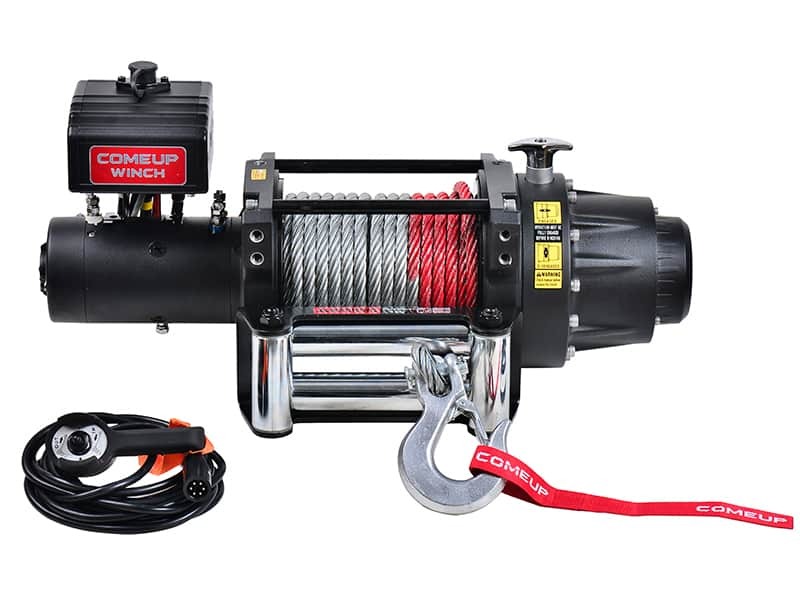

COMEUP Seal Gen2 20.0 – 9.1 Tonnes Severe Duty Winch. COMEUP SOLO, Seal and Slim waterproof automotive winches for Jeeps, pickups and SUVs off road.

  • 12V DC severe duty winch rated at 20,000 lb pulling meets or exceeds your expectations.
  • Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.
  • 4 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 90 degree Increments.
  • Water-proof remote control with thermometric LED indicator w/5 m cord
  • A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
  • Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch
  • The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.
  • Meets international standards of CE Machinery Directive 2006/42/EC, CE Electromagnetic Compatibility Directive 2014/30/EU, and SAE J706 Surface Vehicle standard 2003-08 rev.

Technical Specifications

  • Part Number: PN 295205 (12V)
  • Rated line pull: 9,072 kg ( 20,000 lb ) single line
  • Line speed ( 1st layer): 4.5 mpm / 14.8 fpm 60A at 12V, no load
    0.4 mpm / 1.3 fpm 410A at 12V, full load
  • Motor: 5,220 w / 7.0 hp 12V series wound
  • Gear train: 3-stage planetary 343:1
  • Clutch (freespooling): Rotating ring gear
  • Brake (outside the drum): Automatic, full load cone brake
  • Winch construction: Aluminum die cast housings with steel drum
  • Drum size: 89 x 204 mm (3.5” x 8”)
  • Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
  • Wire rope: 6 × 29 - IWRC
  • Size: 12.7 mm x 18 m (1/2” x 59’)
  • Mounting bolts pattern: 254 x 114.3 mm (10” x 4.5”)
    254 x 165 mm (10” x 6.5”)
  • Mounting: Foot forward mounting only
    * Remark: Only foot forward mounting can meet SAE J706

Performance Data

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb		Line Speed,
mpm / fpm		Amp. Draw, A
12V
No load4.5 / 14.860
1,814 / 4,0002.1 / 6.9150
3,629 / 8,0001.8 / 5.9190
4,536 / 10,0001.4 / 4.6260
7,484 / 16,5001.1 / 3.6340
9,072 / 20,0000.4 / 1.3410

Line Pull and Rope Capacity:

Layer of RopePull by layer, kg / lbTotal Rope on the Drum, m / ft
1st9,072 / 20,0005.0 / 16.4
2nd7,259 / 16,00311.2 / 36.7
3rd6,050 / 13,33818.0 / 59.0

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the first layer of rope on the drum.
  • The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

  • Limited lifetime warranty for mechanical components and three(3) years warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

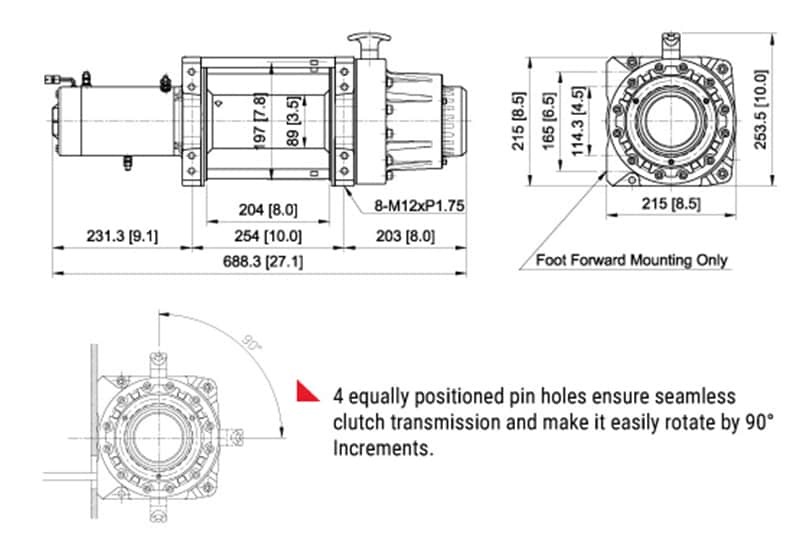

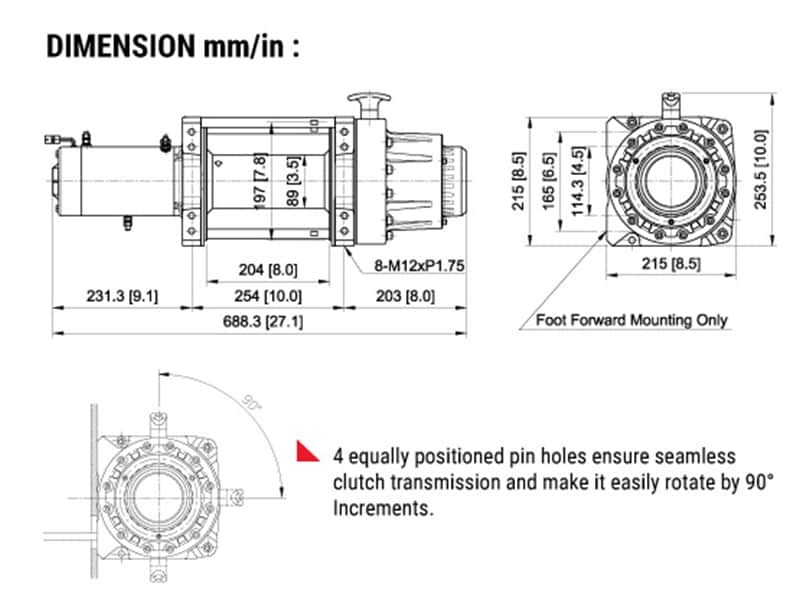

Dimensions

Seal Gen2 20.0

Accessories

Standard Accessories:

• Roller fairlead
• Remote control w/5 m (17’) cord
• Detachable control box
• Wire rope w/clevis hook
• 1.8 m (6’) 2 gauge battery lead
• Handsaver strap

Packaging

  • Winch weight (including rope): 59.9 kg / 132 lb
  • Gross weight: 77 kg / 169.7 lb
  • Box dimension (L x D x H) : 740 x 270 x 495 mm (29.1” x 10.6” x 19.5”)

Downloads

DocumentDateFormatDownload
Seal Gen2 20.0 Operation Manual2022-04-28PDF, 0.82 MBDownload
[QUICK START GUIDE] Connecting the cables of the control box to the motor terminals (triangle type)2021-07-31PDF, 0.34 MBDownload
