Seal Gen2 16.5s

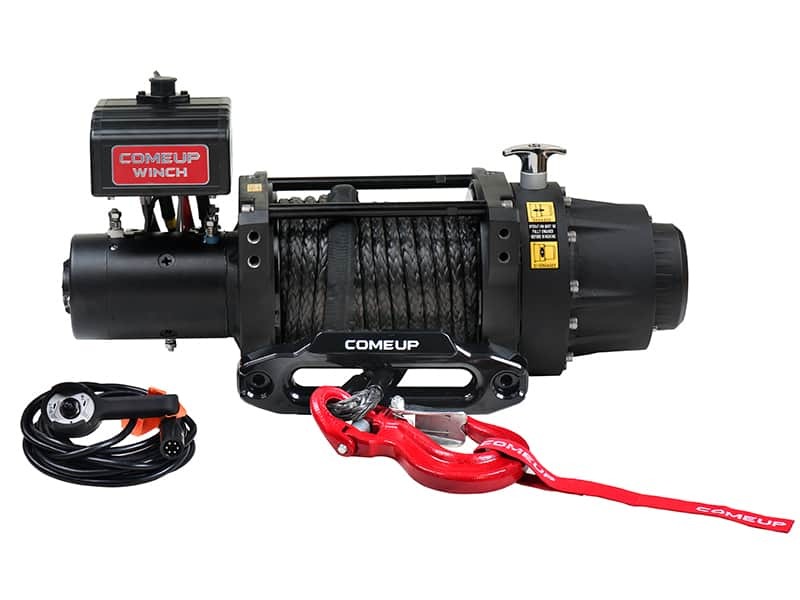

COMEUP Seal Gen2 16.5s – 7.5 Tonnes Severe Duty Winch. COMEUP SOLO, Seal and Slim waterproof automotive winches for Jeeps, pickups and SUVs off road.

  • 12/24V DC severe duty winch rated at 16,500 lb pulling meets or exceeds your expectations.
  • Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.
  • 4 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 90 degree Increments.
  • Water-proof remote control with thermometric LED indicator w/5 m cord
  • A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
  • Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch
  • The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.
  • Meets Meet international standards of CE Machinery Directive 2006/42/EC, CE Electromagnetic Compatibility Directive 2014/30/EU, and SAE J706 Surface Vehicle standard 2003-08 rev.

Technical Specifications

Part numberPN 295635 (12V) / PN 295646 (24V)
Rated line pull7,484 kg / 16,500 lb single line
Line speed ( 1st layer)5.6 mpm / 18.4 fpm 50A at 12V, 7.6 mpm / 24.7 fpm 25A at 24V no load
1.4 mpm / 4.6 fpm 355A at 12V, 1.4 mpm / 4.6 fpm 245A at 24V full load
Motor4,325 w / 5.8 hp 12V series wound
4,474 w / 6.0 hp 24V series wound
Gear train3-stage planetary 343:1
Clutch (freespooling)Rotating ring gear
Brake (outside the drum)Automatic, full load CBS (Cone Brake Structure)
Winch constructionAluminum die cast housings with steel drum
Drum size89 mm x 204L mm (3.5" x 8"L)
ControlWaterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope typeSynthetic rope
Rope size12.7 mm x 25 m (1/2” x 82’)
Mounting bolt pattern254 mm x 114.3 mm (10” x 4.5”)
254 mm x 165 mm (10" x 6.5")
MountingFoot forward mounting only
* Remark: Only foot forward mounting can meet SAE J706

Performance Data

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb		Line Speed, mpm / fpmAmp. Draw, A
12V24V12V24V
No load5.6 / 18.47.6 / 24.95025
1,814 / 4,0003.0 / 9.83.1 / 10.39090
3,629 / 8,0002.5 / 8.21.9 / 6.4180150
4,536 / 10,0001.9 / 6.21.6 / 5.2230200
7,484 / 16,5001.4 / 4.61.4 / 4.6355245

Line Pull and Rope Capacity:

Layer of RopePull by layer, kg / lbTotal Rope on the Drum, m / ft
1st7,484 / 16,5005.2 / 17.1
2nd6,125 / 13,50311.6 / 38.1
3rd5,184 / 11,42919.2 / 63.0
4rd4,494 / 9,90825.0 / 82.0

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the first layer of rope on the drum.
  • The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

  • Limited lifetime warranty for mechanical components and three(3) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

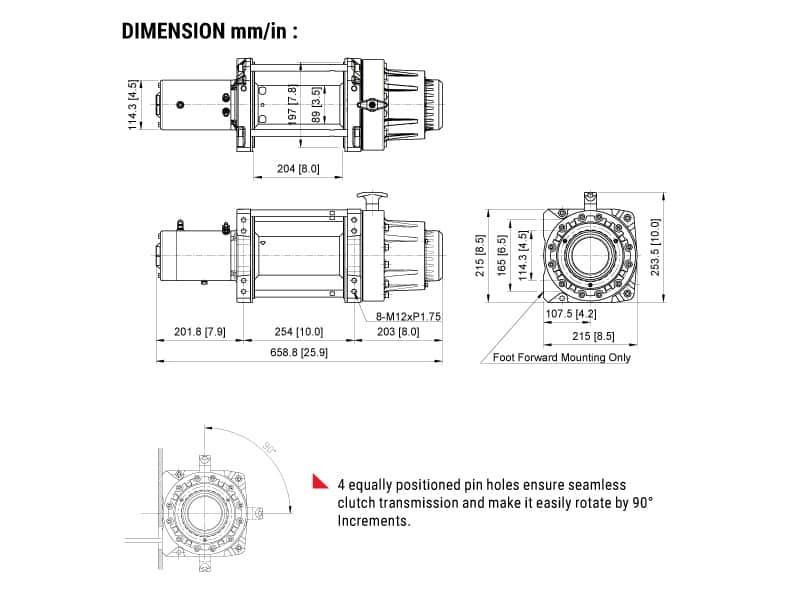

Dimensions

Seal Gen2 16.5s

Accessories

Standard Accessories:

  • Hawse fairlead
  • Remote control w/5 m (17’) cord
  • Detachable control box
  • Synthetic rope w/sling hook
  • 1.8 m (6’) 2 gauge battery lead
  • Handsaver strap

Packaging

  • Winch weight (including rope): 48 kg / 106 lb
  • Gross weight: 60.8 kg / 134 lb
  • Box dimension (L x D x H) : 690 x 270 x 405 mm (27.2” x 10.6” x 15.9”)

Downloads

DocumentDateFormatDownload
Seal Gen2 16.5s Operation Manual2022-04-28PDF, 0.72 MBDownload
[QUICK START GUIDE] Connecting the cables of the control box to the motor terminals (triangle type)2021-07-31PDF, 0.34 MBDownload
