FullSharp · since 1991

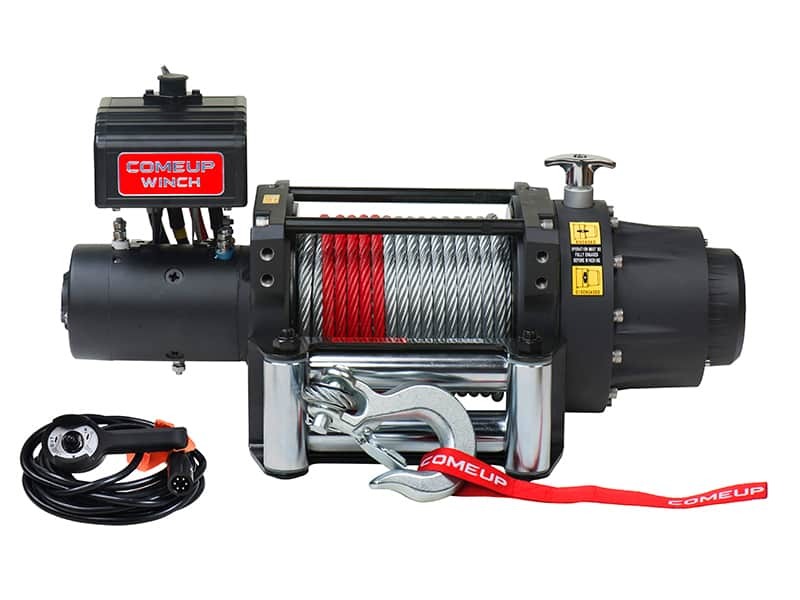

Seal Gen2 16.5

COMEUP Seal Gen2 16.5 – 7.5 Tonnes Severe Duty Winch. COMEUP SOLO, Seal and Slim waterproof automotive winches for Jeeps, pickups and SUVs off road.

  • 12/24V DC severe duty winch rated at 16,500 lb pulling meets or exceeds your expectations.
  • Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.
  • 4 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 90 degree Increments.
  • Water-proof remote control with thermometric LED indicator w/5 m cord
  • Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch
  • The U.S. Germany, U.K. France, etcpatented mechanical cone brake outside the drum expedites heat dispersion. The greater the load on the rope, the greater amount of braking is generated by the mechanism.
  • Meets international standards of CE Machinery Directive 2006/42/CE, CE Electromagnetic Compatibility Directive 2014/30/EU, and SAE J706 Surface Vehicle standard 2003-08 rev.

Technical Specifications

Part numberPN 295615 (12V) / PN 295628 (24V)
Rated line pull7,484 kg / 16,500 lb single line
Line speed ( 1st layer)5.5 mpm / 18 fpm 50A at 12V, 7.5 mpm / 24.7 fpm 25A at 24V no load
1.4 mpm / 4.6 fpm 355A at 12V, 1.4 mpm / 4.6 fp, 245A at 24V full load
Motor4,325 w / 5.8 hp 12V series wound
4,474 w / 6.0 hp 24V series wound
Gear train3-stage planetary 343:1
Clutch (freespooling)Rotating ring gear
Brake (outside the drum)Automatic, full load CBS (Cone Brake Structure)
Winch constructionAluminum die cast housings with steel drum
Drum size89 mm x 204L mm (3.5" x 8"L)
ControlWaterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope type6 × 29 - IWRC
Rope size11.1 mm x 27.4 m (7/16” x 90’)
Mounting bolt pattern254 mm x 114.3 mm (10” x 4.5”)
254 mm x 165 mm (10" x 6.5")
MountingFoot forward mounting only
* Remark: Only foot forward mounting can meet SAE J706

Performance Data

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb		Line Speed, mpm / fpmAmp. Draw, A
12V24V12V24V
No load5.5 / 18.07.5 / 24.75025
1,814 / 4,0002.9 / 9.53.1 / 10.29090
3,629 / 8,0002.4 / 7.91.9 / 6.3180150
4,536 / 10,0001.8 / 5.91.6 / 5.1230200
7,484 / 16,5001.4 / 4.61.4 / 4.6355245

Line Pull and Rope Capacity:

Layer of RopePull by layer, kg / lbTotal Rope on the Drum, m / ft
1st7,484 / 16,5005.6 / 18.4
2nd6,125 / 13,50312.4 / 40.7
3rd5,184 / 11,42920.4 / 66.9
4rd4,494 / 9,90827.4 / 90.0

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the first layer of rope on the drum.
  • The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

  • Limited lifetime warranty for mechanical components and three(3) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

Accessories

Standard Accessories:

  • Roller fairlead
  • Remote control w/5 m (17’) cord
  • Detachable control box
  • Wire rope w/clevis hook
  • 1.8 m (6’) 2 gauge battery lead
  • Handsaver strap

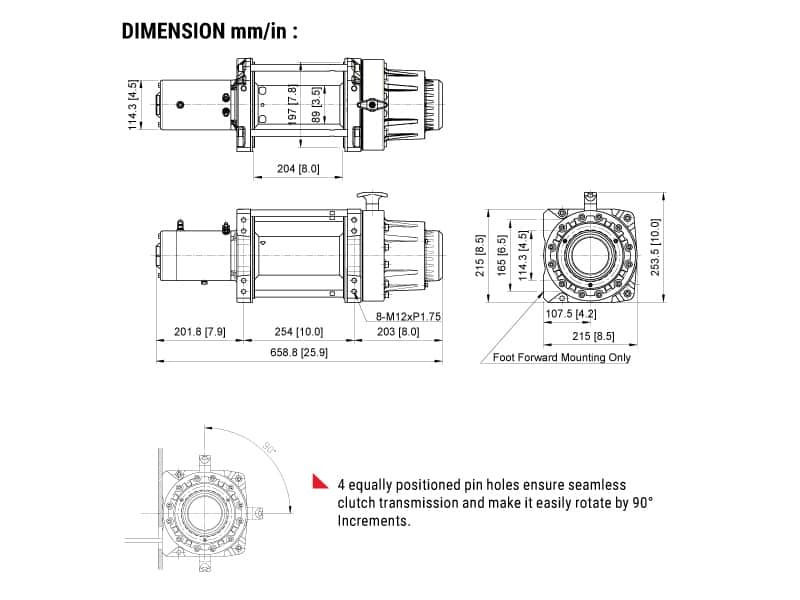

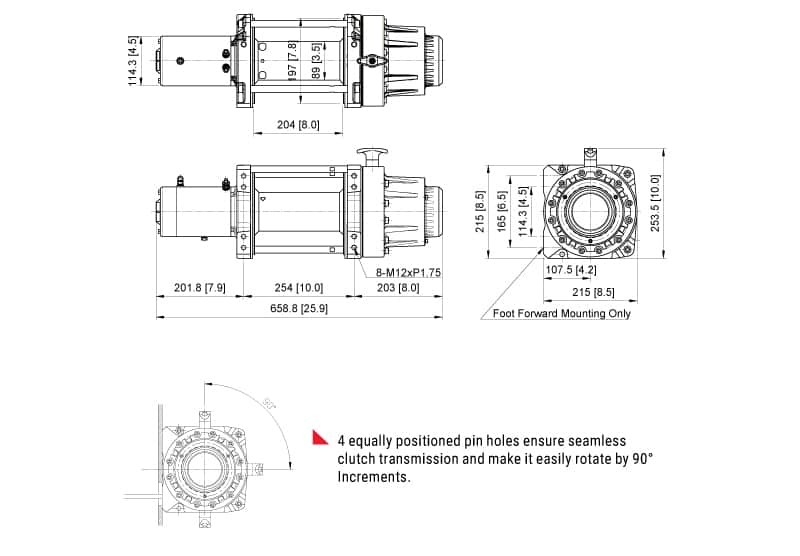

Dimensions

Seal Gen2 16.5

Packaging

  • Winch weight (including rope): 61 kg / 135 lb
  • Gross weight: 76.7 kg / 169 lb
  • Box dimension (L x D x H) : 690 x 270 x 405 mm (27.2” x 10.6” x 15.9”)

Downloads

DocumentDateFormatDownload
Seal Gen2 16.5 Operation Manual2022-04-28PDF, 0.72 MBDownload
[QUICK START GUIDE] Connecting the cables of the control box to the motor terminals (triangle type)2021-07-31PDF, 0.34 MBDownload
