Seal 16.5rs Trail Edition

COMEUP Seal 16.5rs Trail Edition – Trail Edition: Includes a BossHook L and a 250A fuse kit. COMEUP SOLO, Seal and Slim waterproof automotive winches for Jeeps, pickups and SUVs off road.

  • 12/24V DC severe duty winch rated at 16,500 lb pulling meets or exceeds your expectations.
  • Heavy duty series wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch
  • 4 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 90 degree Increments.
  • Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
  • Cutout switch prevents the vehicle battery from draining when no use.
  • Both built-in digital two way signal wireless remote control and wired water-proof remote control.
  • A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
  • Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
  • U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load
  • BossHook L made of strong SCM440 alloy steel, MBS18,200 KG.
  • The Fuse Kit is designed to protect the winch motor and controls from damage caused by Amperage overload or short circuit.
  • Meets international standards of CE Machinery Directive 2006/42/EC, CE Electromagnetic Compatibility Directive 2014/30/EU, and SAE J706 Surface Vehicle standard 2003-08 rev.

Technical Specifications

Part numberPN 298115 (12V) / PN 298126 (24V)
Rated line pull7,484 kg / 16,500 lb single line
Line speed ( 1st layer)5.6 mpm / 18.4 fpm 50A at 12V, 7.6 mpm / 24.7 fpm 25A at 24V no load
1.4 mpm / 4.6 fpm 355A at 12V, 1.4 mpm / 4.6 fpm 245A at 24V full load
Motor4,325 w / 5.8 hp 12V series wound
4,474 w / 6.0 hp 24V series wound
Gear train3-stage planetary 343:1
Clutch (freespooling)Rotating ring gear
Brake (outside the drum)Automatic, full load CBS (Cone Brake Structure)
Winch constructionAluminum die cast housings with steel drum
Drum size89 mm x 204L mm (3.5" x 8"L)
ControlIncludes both built-in digital two-way wireless control and waterproof wired remote control with LED thermometric indicator and 5m (17') cord
Rope typeSynthetic rope
Rope size12.7 mm x 25 m (1/2” x 82’)
Mounting bolt pattern254 mm x 114.3 mm (10” x 4.5”)
254 mm x 165 mm (10" x 6.5")
MountingFoot forward mounting only
* Remark: Only foot forward mounting can meet SAE J706

Performance Data

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb		Line Speed, mpm / fpmAmp. Draw, A
12V24V12V24V
No load5.6 / 18.47.6 / 24.95025
1,814 / 4,0003.0 / 9.83.1 / 10.39090
3,629 / 8,0002.5 / 8.21.9 / 6.4180150
4,536 / 10,0001.9 / 6.21.6 / 5.2230200
7,484 / 16,5001.4 / 4.61.4 / 4.6355245

Line Pull and Rope Capacity:

Layer of RopePull by layer, kg / lbTotal Rope on the Drum, m / ft
1st7,484 / 16,5005.2 / 17.1
2nd6,125 / 13,50311.6 / 38.1
3rd5,184 / 11,42919.2 / 63.0
4rd4,494 / 9,90825.0 / 82.0

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the first layer of rope on the drum.
  • The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

  • Limited lifetime warranty for mechanical components and three(3) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

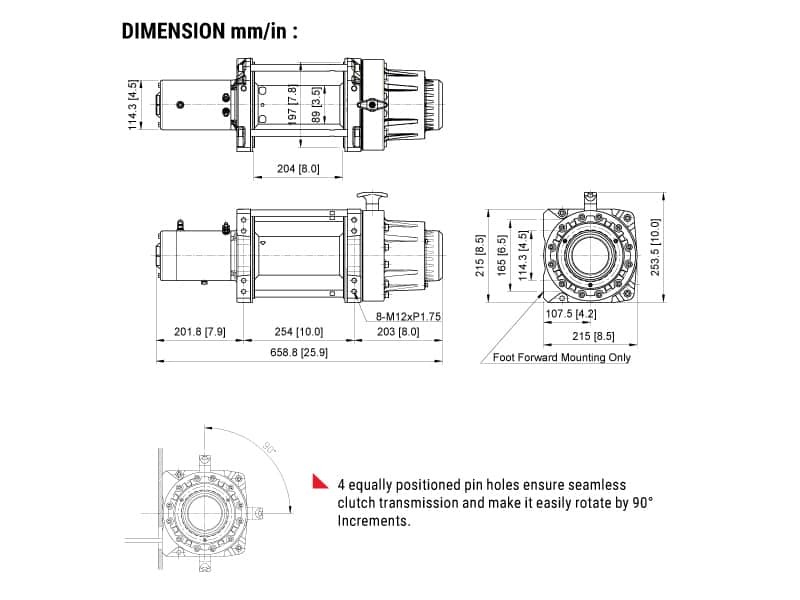

Dimensions

Seal 16.5rs Trail Edition

Accessories

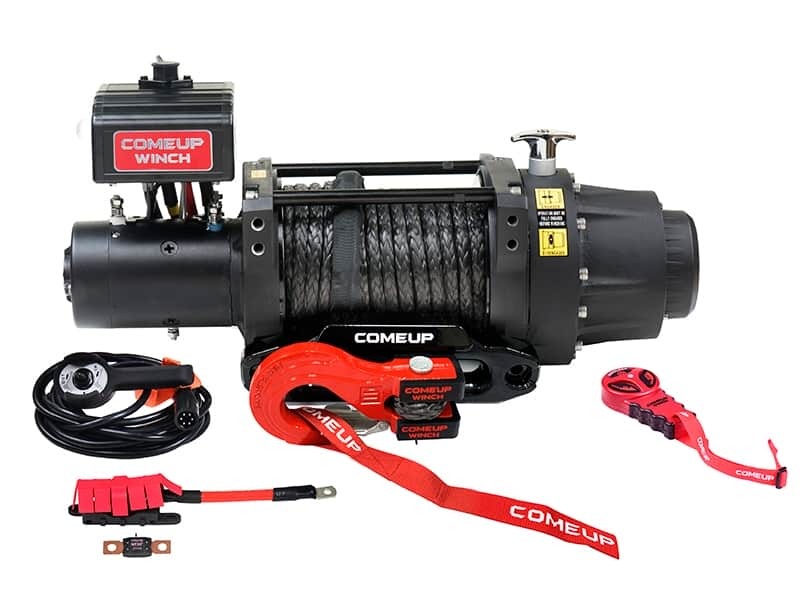

Standard Accessories:

• Hawse fairlead
• Built-in wireless remote control modules
• Remote control w/5 m (17’) cord
• Detachable control box w/ 200A fuse
• Synthetic rope w/ BossHook L
• 1.8 m (6’) 2 gauge battery lead
• Handsaver strap

Packaging

  • Winch weight (including rope): 48 kg / 106 lb
  • Gross weight: 60.8 kg / 134 lb
  • Box dimension (L x D x H) : 690 x 270 x 405 mm (27.2” x 10.6” x 15.9”)
