Rhino 8 Pro

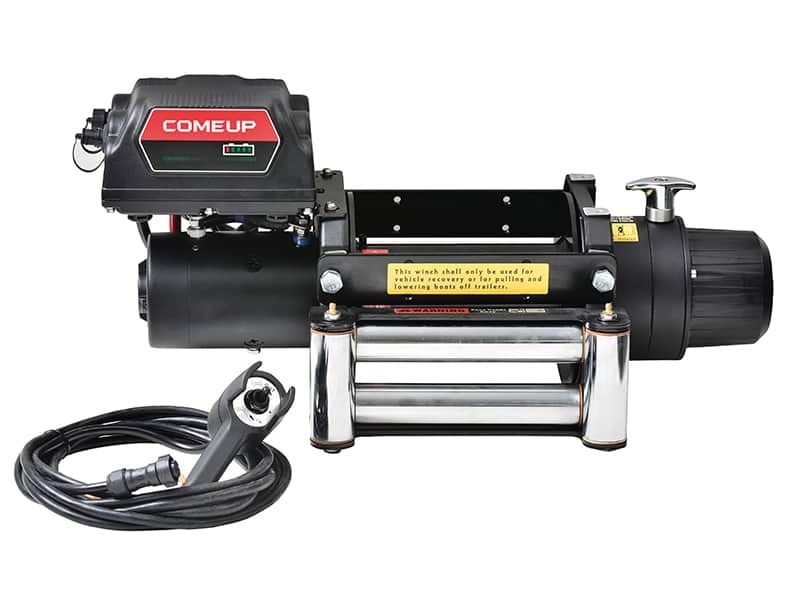

COMEUP Rhino 8 Pro – 3.5 Tonnes Electric Recovery Winch. Rhino and Wolf DC electric recovery winches for recovery vehicles, trucks and special-purpose vehicles.

Reliable electric winch for commercial, industrial and severe duty applications
3,430w/12V or 1,940w/24V series wound motor.
Patented over-loading current protector can be programmed by the winch specification and pulling requirements which limits the winch's maximum pulling power.
LED Indicator displays detailed winch status while operating.
Low voltage detecting function reminds operator vehicle battery status.
U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
Submersible sealed contactor handles high amps and allows higher duty cycle.
Meets SAE J706, CE Machinery Directive 2006/42/EC, and EN 14492-1 standards

What's News Link:KAIZEN: Rhino Pro Series Electric Recovery Winches

Technical Specifications

Part number	PN 850318 (12V) / PN 850326 (24V)
Rated line pull	3,630 kg / 8,000 lb single line (SAE J706 rating) 3,560 kg (EN 14492-1 rating)
Motor	3,430 w / 4.6 hp 12V series wound 1,940 w / 2.6 hp 24V series wound
Gear train	3-stage planetary 211:1
Clutch (freespooling)	Rotating ring gear
Brake (outside the drum)	Automatic, full load CBS (Cone Brake Structure)
Winch construction	Aluminum die cast housings with steel drum

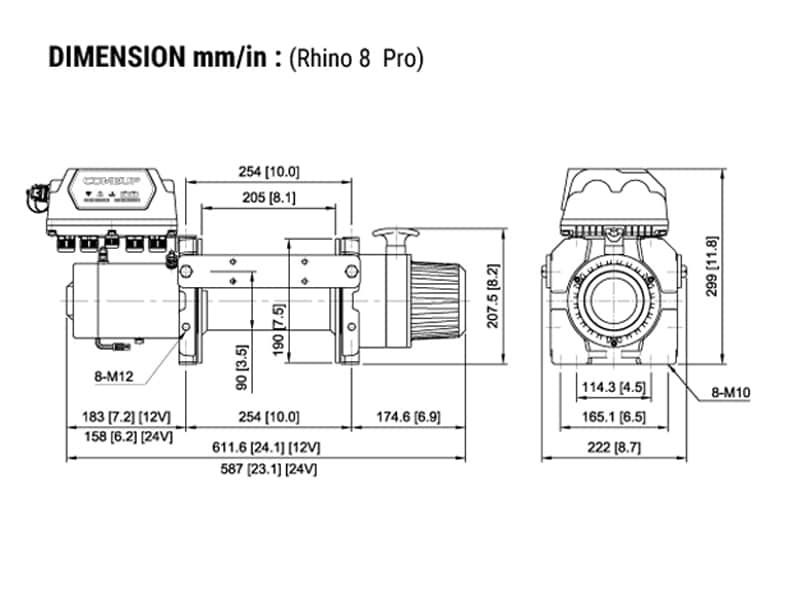

Drum size	90 x 205 mm (3.5” x 8.1")
Rotation of winch	Wire rope shall be under-wound orientation only
Control	Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
Mounting bolt pattern	254 x 114 mm (10” x 4.5”) 254 x 165 mm (10" x 6.5")
Wire rope recommended	* 10 mm x 22.6 m, 1,960 N/mm² grade with a minimum breaking strength of 69.8 kN required for EN 14492-1 rating. * 3/8" x 100', EIPS grade with a minimum breaking strength of 15,663 lbf required for SAE J706 rating

Compliant with EN 14492-1 requirements for recovery winches:

The working coefficient for the first rope layer on the drum shall be at least 2.
The D/d ratio to the center of the rope shall be at least 10 for the drum.
Drum freeboard shall be at least 1.5 x rope diameter.

Performance Data

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull, kg / lb	Line Speed, mpm / fpm	Amp. Draw, A
Line Pull, kg / lb	Line Speed, mpm / fpm	12V	24V
No load	9.0 / 29.5	45	40
907 / 2,000	3.0 / 10	90	60
1,814 / 4,000	1.5 / 5.0	180	120
2,722 / 6,000	1.0 / 3.3	260	180
3,630 / 8,000	0.7 / 2.3	340	230

Line Pull and Rope Capacity:

Layer of Rope	Pull by layer, kg / lb	Line Speed, mpm / fpm	Total Rope on the Drum, m / ft
1^st	3,630 / 8,000	0.7 / 2.3	6.3 / 20.7
2^nd	3,025 / 6,669	0.9 / 3.0	13.8 / 45.3
3^rd	2,593 / 5,717	1.0 / 3.3	22.6 / 74.1
4^th	2,269 / 5,002	1.2 / 4.0	30.5 / 100

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

Accessories

Standard Accessories	Option Accessories

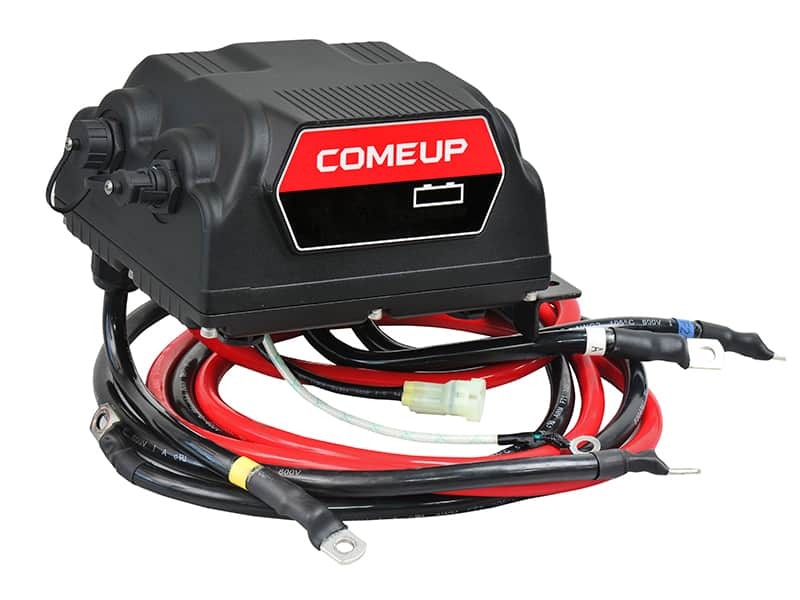

Roller fairlead Remote control w/5 m (17’) cord Detachable control box	Cable tensioner Current Regulator

Packaging

Winch weight: 31 kg / 68.3 lb
Gross weight: 48 kg / 106 lb
Box dimension: 650 x 260 x 440 mm (25.6” x 10.2” x17.3”)

Downloads

Document	Date	Format	Download
Rhino 8 Pro Operation Manual	2023-07-20	PDF, 0.57 MB	Download
