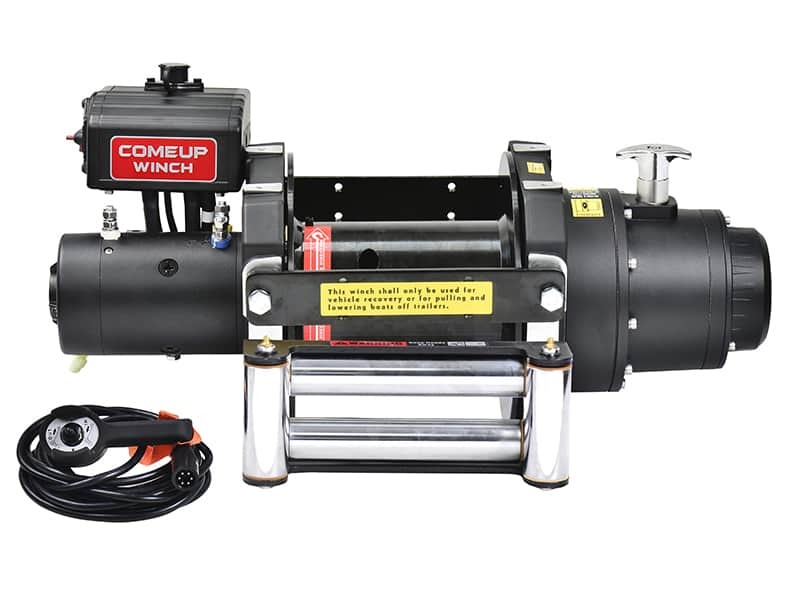

COMEUP Rhino 15 – 6.8 Tonnes Electric Recovery Winch. Rhino and Wolf DC electric recovery winches for recovery vehicles, trucks and special-purpose vehicles.

Reliable electric winch for commercial, industrial and severe duty applications
5,250w/24V series wound motor.
10 equally positioned pin holes with a ergonomic T-handle make it possible to reposition in 36 degree increments.
Hardened steel, 3-stage planetary gear train for efficient and reliable operation
Water-proof remote control with thermometric LED indicator alerts when the motor is over-heated.
U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
Easy to turn the T-handle for rapid wire rope payout.

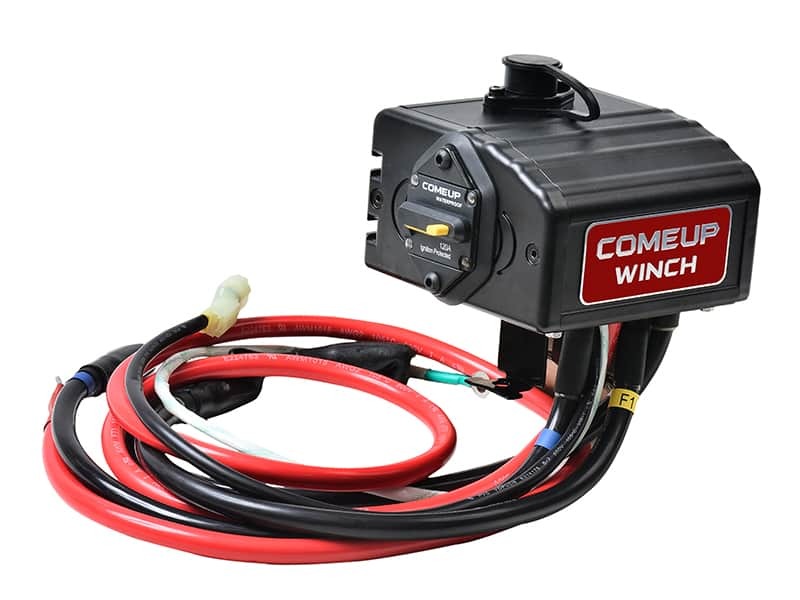

Submersible sealed contactor handles high amps and allows higher duty cycle.
Meets CE Machinery Directive 2006/42/EC, and EN 14492-1 standards

Technical Specifications

Part number	PN 851540 (24V)
Rated line pull	6,804 kg / 15,000 lb single line (EN 14492-1 rating)
Motor	5,250 w / 7.0 hp 24V series wound
Gear train	3-stage planetary 315:1
Clutch (freespooling)	Rotating ring gear
Brake (outside the drum)	Automatic, full load CBS (Cone Brake Structure)
Winch construction	Aluminum die cast housings with steel drum

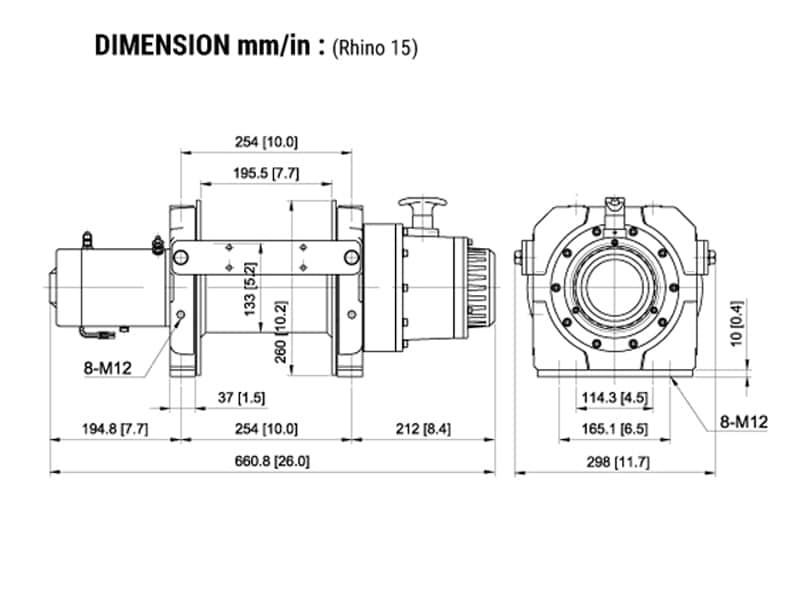

Drum size	133 x 195.5 mm ( 5.2” x 7.7” )
Rotation of winch	Wire rope shall be under-wound orientation only
Control	Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
Mounting bolt pattern	254 x 114.3 mm (10” x 4.5”) 254 x 165.1 mm (10" x 6.5")
Wire rope recommended	14 mm x 22 m, 1,960N/mm² grade with a minimum breaking strength of 137 KN required for EN 14492-1 rating

Compliant with EN 14492-1 requirements for recovery winches:

The working coefficient for the first rope layer on the drum shall be at least 2.
The D/d ratio to the center of the rope shall be at least 10 for the drum.
Drum freeboard shall be at least 1.5 x rope diameter.

Performance Data

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull, kg / lb	Line Speed, mpm / fpm	Amp. Draw, A
Line Pull, kg / lb	Line Speed, mpm / fpm	24V
No load	12.6 / 41.3	35
1,814 / 4,000	5.1 / 16.7	80
3,630 / 8,000	4.1 / 13.5	160
4,536 / 10,000	3.1 / 10.2	200
5,443 / 12,000	2.5 / 8.2	250
6,804 / 15,000	1.9 / 6.2	300

Line Pull and Rope Capacity:

Layer of Rope	Pull by layer, kg / lb	Line Speed, mpm / fpm	Total Rope on the Drum, m / ft
1^st	6,804 / 15,000	1.9 / 6.2	6.2 / 20.3
2^nd	5,715 / 12,599	2.3 / 7.5	13.6 / 44.6
3^rd	4,927 / 10,862	2.6 / 8.5	22 / 72

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

Accessories

Standard Accessories	Option Accessories
Roller fairlead Remote control w/5 m (17’) cord Detachable control box	Cable tensioner

Packaging

Winch weight: 59 kg / 130 lb
Gross weight: 71 kg / 156.5 lb
Box dimension: 693 x 354 x 473 mm (27.3” x 13.9” x 18.6”)

Downloads

Document	Date	Format	Download
Rhino 15 Operation Manual	2022-04-29	PDF, 0.63 MB	Download
