Rhino 12 Pro

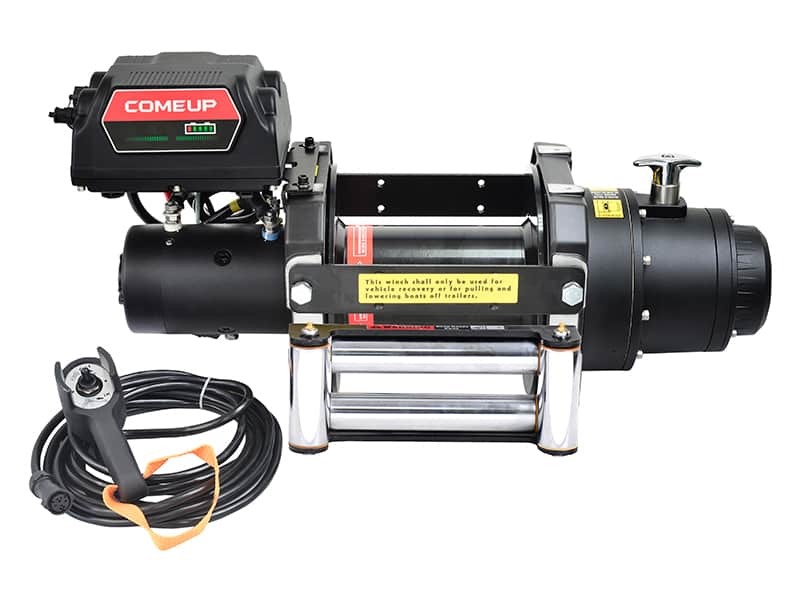

COMEUP Rhino 12 Pro – 5.1 Tonnes Electric Recovery Winch. Rhino and Wolf DC electric recovery winches for recovery vehicles, trucks and special-purpose vehicles.

Reliable electric winch for commercial, industrial and severe duty applications
4,180w/12V or 2,690w/24V series wound motor.
10 equally positioned pin holes with a ergonomic T-handle make it possible to reposition in 36 degree increments.
Patented over-loading current protector can be programmed by the winch specification and pulling requirements which limits the winch's maximum pulling power.
LED Indicator displays detailed winch status while operating.
U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
Easy to turn the T-handle for rapid wire rope payout.
Submersible sealed contactor handles high amps and allows higher duty cycle.
Meets SAE J706, CE Machinery Directive 2006/42/EC, and EN 14492-1 standards

What's News Link: KAIZEN: Rhino Pro Series Electric Recovery Winches

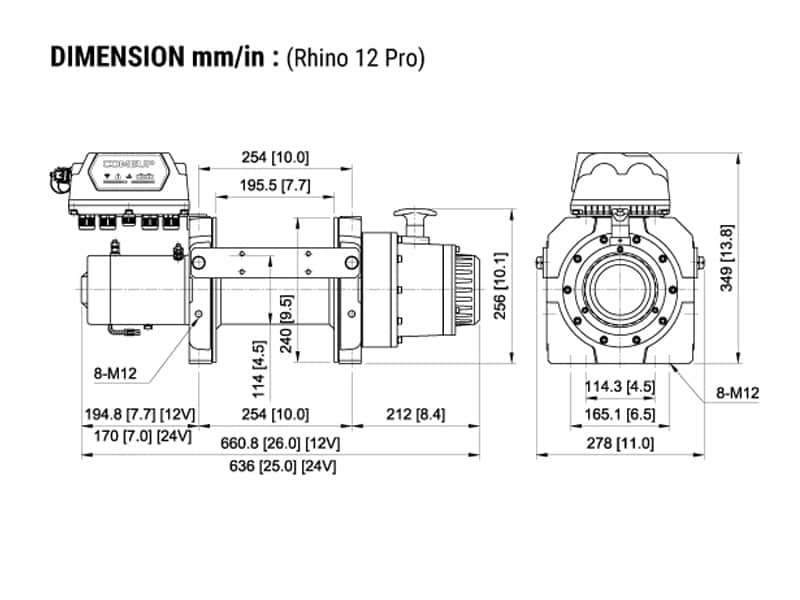

Technical Specifications

Part number	PN 851105 (12V) / PN 851324 (24V)
Rated line pull	5,440 kg / 12,000 lb (SAE J706 rating) 5,100 kg (EN 14492-1 rating)
Motor	4,180 w / 5.6 hp 12V series wound 2,690 w / 3.6 hp 24V series wound
Gear train	3-stage planetary 315:1
Clutch (freespooling)	Rotating ring gear
Brake (outside the drum)	Automatic, full load CBS (Cone Brake Structure)
Winch construction	Aluminum die cast housings with steel drum
Drum size	114 x 195.5 mm (4.5” x 7.7")
Rotation of winch	Wire rope shall be under-wound orientation only
Control	Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
Mounting bolt pattern	254 x 114.3 mm (10” x 4.5”) 254 x 165.1 mm (10" x 6.5")
Wire rope recommended	* 12 mm x 21.4 m, 1,960 N/mm² grade with a minimum breaking strength of 100.5 kN required for EN 14492-1 rating. * 1/2" x 100', EIPS grade with a minimum breaking strength of 22,552 lbf required for SAE J706 rating

Compliant with EN 14492-1 requirements for recovery winches:

The working coefficient for the first rope layer on the drum shall be at least 2.
The D/d ratio to the center of the rope shall be at least 10 for the drum.
Drum freeboard shall be at least 1.5 x rope diameter.

Performance Data

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull, kg / lb	Line Speed, mpm / fpm	Amp. Draw, A
Line Pull, kg / lb	Line Speed, mpm / fpm	12V	24V
No load	10 / 32.8	40	35
1,814 / 4,000	4.4 / 14.4	140	110
3,629 / 8,000	3.5 / 11.5	280	210
4,536 / 10,000	1.5 / 5.0	350	260
5,440 / 12,000	1.3 / 4.3	420	310

Line Pull and Rope Capacity:

Layer of Rope	Pull by layer, kg / lb	Line Speed, mpm / fpm	Total Rope on the Drum, m / ft
1^st	5,440 / 12,000	1.3 / 4.3	5.9 / 19.4
2^nd	4,534 / 9,996	1.5 / 12.1	13 / 42.7
3^rd	3,885 / 8,565	1.8 / 14.3	21.4 / 70.2
4^th	3,399 / 7,494	2.0 / 16.4	30.5 / 100

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

Accessories

Standard Accessories	Option Accessories

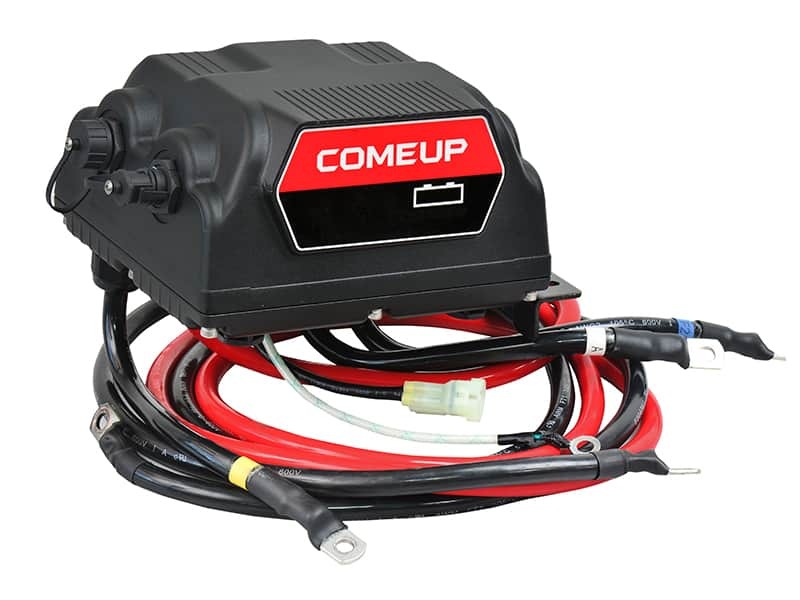

Roller fairlead Remote control w/5 m (17’) cord Detachable control box	Cable tensioner Current Regulator

Packaging

Winch weight: 47 kg / 104 lb
Gross weight: 62 kg / 137 lb
Box dimension: 693 x 313 x 508 mm (27.3” x 12.3” x 20”)

Downloads

Document	Date	Format	Download
Rhino 12 Pro Operation Manual	2023-07-20	PDF, 0.62 MB	Download
