COMEUP ICB Series for Industrial Winches
COMEUP ICB Series for Industrial Winches – Intelligent Control Box is a genuine COMEUP accessory. Choose the part number (PN) that matches your winch model; part numbers and specifications are listed below.
- Patented over-loading current protector can be programmed by the winch specification and pulling requirements which limits the winch’s maximum pulling power.
- Optional digits regulator panel for setting up overload current and also shows instant battery voltage value while operating winch.
- LED Indicator displays detailed winch status while operating.
- Low voltage detecting function reminds operator vehicle battery status.
- Applicable for other brands of winches.
- Durable aluminum alloy die cast housings.
- IP68 rated waterproof.
Technical Specifications
| Part number | ICB 318 PN 883584 (12V) ICB 318 PN 883585 (24V) |
| Power | DC 12V / 24V |
| Current Range | 0-600 Amp |
| Supply Voltage | 9-27 V |
| Accuracy of circuit Breaker | +/- 1.5% of the set Amp |
| Operation Temperature | -40 to 70 deg C |
| Standard Compliance | CE Electromagnetic Compatibility 2004/108/EC |
| Net weight | 6 kg / 13.2 lb |
| Gross weight | 7 kg / 15.4 lb |
| Box dimension | 315 x 177 x 1750 mm (12.4" x 7” x 6.9”) |
* Factory programmed for customer specifications. Can be reprogrammed by optional digits regulator panel.
Information Panel

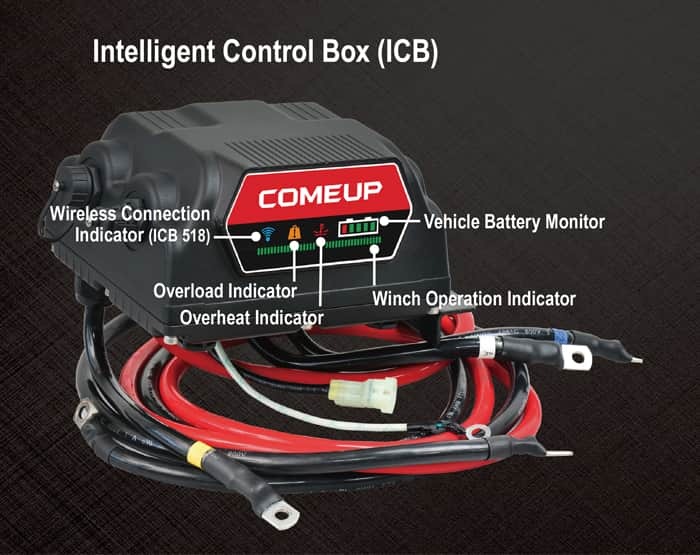

- ICB318 Information Panel：

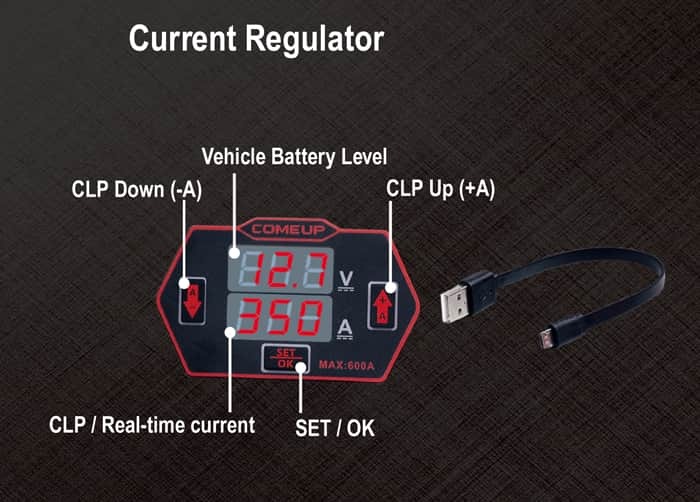

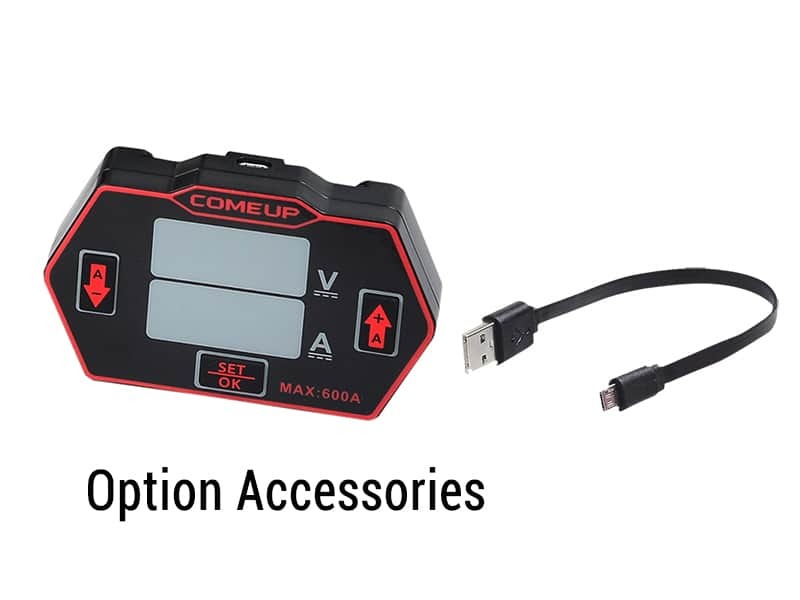

- Current Regulator Panel (Option Accessories) ：
Warranty
- Limited lifetime warranty for mechanical components and one ( 1 ) year warranty for electrical components from date of purchase. Synthetic ropes are not included under warranty.
Accessories
| Standard Accessories | Option Accessories |
|---|---|
|
|
Packaging
- Net weight: 6 kg / 13.2 lb
- Gross weight: 7 kg / 15.4 lb
- Box dimension: 315 x 177 x 1750 mm ( 12.4 ” x 7 ” x 6.9 ” )
