HV-10

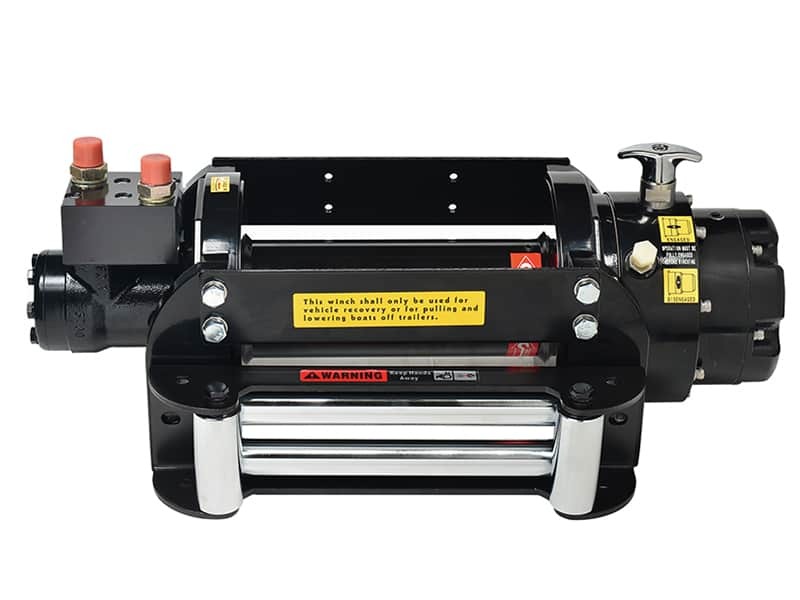

COMEUP HV-10 – 10,000 lb Hydraulic Recovery Winch. Bison and HV hydraulic recovery winches for recovery vehicles, heavy trucks and special-purpose vehicles, built for continuous duty.

  • Powered by an onboard hydraulic pump or PTO for variable recovery speeds for high working rate.
  • 5.9 in3 / rev highly efficient and constant operating torque motor with 10,000 lb capacity.
  • Hardened 2 stage planetary gear train with 16:1 gear ratio provides faster line speed.
  • Turn clutch by a ergonomic T-handle for rapid wire rope payout.
  • Drag brake and over-center valve provided for holding full load.

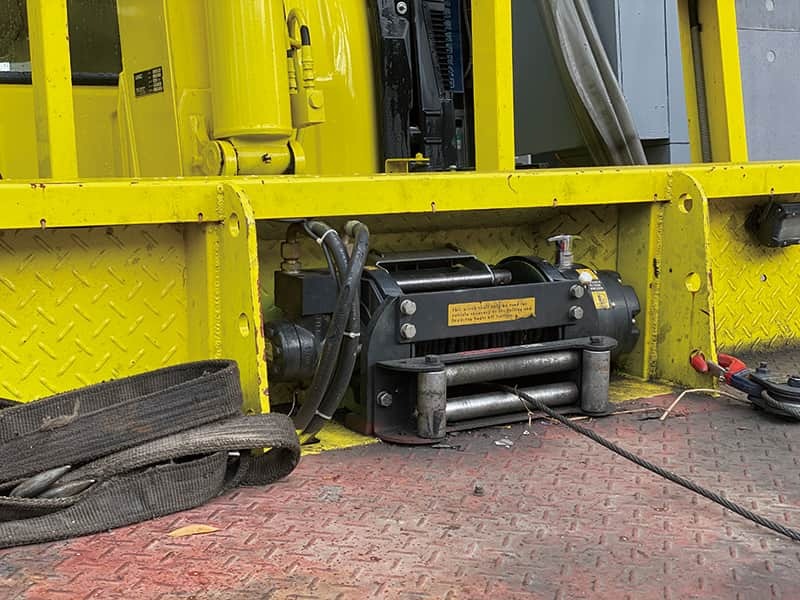

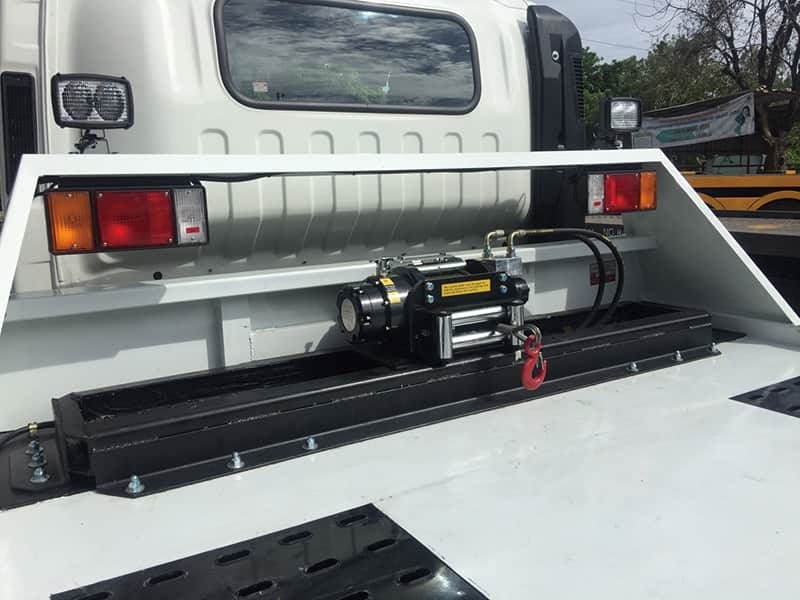

  • Great for severe duty trailers, roll-back carriers, and commercial recovery application.
  • Meets SAE J706 revised AUG2003, CE Machinery Directive 2006/42/EC and EN 14492-1 Power Driven Winches.

Technical Specifications

Part numberPN 682546 (Std. drum) / PN 683129 (Std. drum - Clutch in left side)
Rated line pull4,535 kg / 10,000 lb (SAE J706 rating)
4,300 kg (EN 14492-1 rating)
Line speed (at 1st layer of rope)14 mpm at 60 l/min (46 fpm at 15.9 g/min)
Operation pressure150 bar / 2,175 psi
Max oil flow60 l/min (15.9 g/min)
Hydraulic motor97.3 cm3/rev (5.9 in3/rev)
Gear ratio2-stage planetary gear 16:1
Winch constructionAluminum die cast housings with steel drum
Clutch (Freespooling)Rotating ring gear
BrakeSpring applied drag brake together with over-center valve supplied
Rotation of winchWire rope shall be under-wound orientation only
Drum barrel diameter102 mm (4")
Drum flange diameter201.5 mm (7.9”)
Distance between flanges253 mm (10")

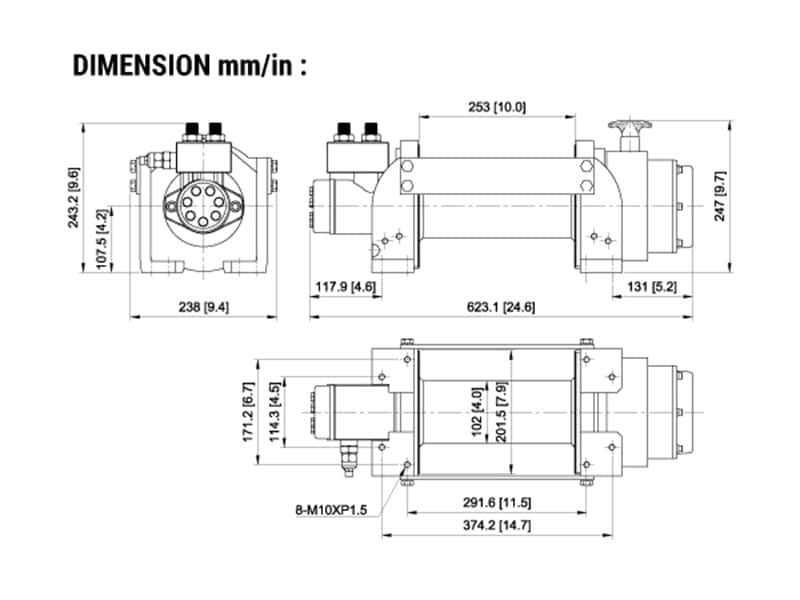

Mounting bolt pattern291.6 x 171.2 mm (11.5” x 6.7”)
374.2 x 114 mm (14.7” x 4.5”)
Wire rope recommended11 mm x 27 m (7/16" x 89'), 1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 84.4 kN (18,939 lbf) required for SAE J706 and EN 14492-1 ratings.
HV-10

Compliant with EN 14492-1 requirements for recovery winches:

  • The working coefficient for the first rope layer on the drum shall be at least 2.
  • The D/d ratio to the center of the rope shall be at least 10 for the drum.
  • Drum freeboard shall be at least 1.5 x rope diameter.

Performance Data

Line Pull and Rope Capacity

Layer of Wire RopePull by Layer,
kg / lb		Total Rope on the Drum,
m / ft		Line Speed at 60 l/min (15.9 g/min),
mpm / fpm
1st4,535 / 10,0008.0 / 26.214.0 / 46.0
2nd3,796 / 8,36917.5 / 57.416.3 / 53.5
3rd3,264 / 7,19627.0 / 89.019.0 / 62.3

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the first layer of rope on the drum.
  • The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

  • Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

Accessories

Standard Accessories

  • Roller fairlead
  • Over-center valve

Packaging

  • Winch weight: 37 kg / 81.4 lb
  • Gross weight: 46.6 kg / 102.5 lb
  • Box dimension: 680 x 380 x 300 mm (26.8” x 15” x 11.8”)

Downloads

DocumentDateFormatDownload
HV-10 Operation Manual2021-07-31PDF, 0.17 MBDownload
HV-10 (clutch in left side) Operation Manual2021-07-31PDF, 0.18 MBDownload
Contact FullSharp for a quotation
